Basic Info.
Product Description
Specifications
| Filament Diameter (μm) | 13-24 | |||
| Linear Density(tex) | 230tex,1200tex,1800tex,2400tex,4800tex and others you need. | |||
| Coating Type | Silane | |||
| Typical best-selling specifications and technical parameters | ||||
| Specifications | Dia. 17μm * Linear desity 230tex | |||
| Testing Report | ||||
| Item | Test method | Standard Values | Our products | |
| Breaking strength (MPa) | GB/T 7690.3-2013 | 1200-2200 | 1710 | |
| Elasticity modulus (MPa) | ≥7500 | 7540 | ||
| elongation at break (%) | 2.4-3.1 | 2.5 | ||
| Retention rate of tensile strength (Mpa) under heat treatment | ||||
| 20ºC | 100 | |||
| 200ºC | 95 | |||
| 400ºC | 82 | |||

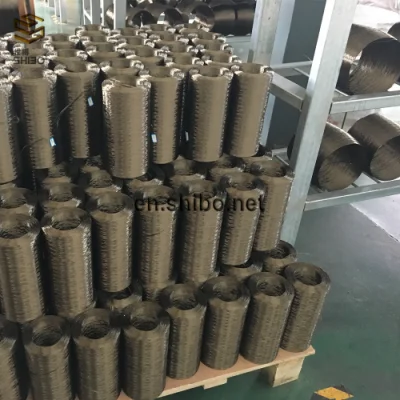

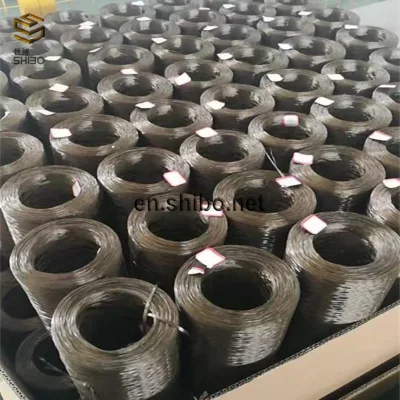

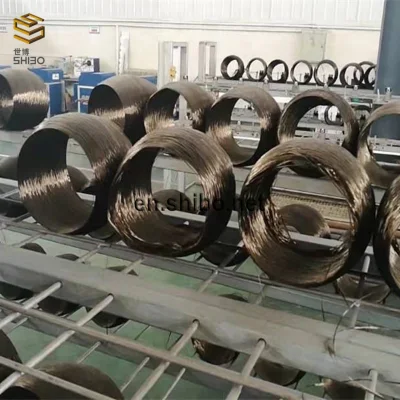

| Product overview | With multiple parallel raw silk or single strand wire twisting in parallel to the original state merged. Not only has the basalt fiber and PPTA (poly phenylene two formyl aniline) and UHMWPE (UHMWPE) and other high technilogy comparable to the fiber with high strength, high modulus and impact resistant performance, and high temperature resistance, excellent light resistance, especially the interfacial bonding strength and the resin with higher. It is used in bulletproof armor to prevent explosion debris and other fire caused by the explosion, there is not no spallation, ricochet, killing chips function two times, as the ceramic surface armor system backing material, has good ballistic performance. | |||
| Applicable areas | Winding and pulling all kinds of tubes, cans, cylinders, bars, profiles, woven all kinds of grid cloth, mesh cloth, Dan Xiangbu, geotextile, and plastic composite materials, etc. | |||
| Application example | 1) The following 1200tex basalt fiber roving is the preferred material for preparation of mesh, geogrid, high temperature filtration fabric needle felt; 2) 4800tex and 2400tex basalt firber roving is the preferred material for wingding resistance to high temperature and ultra low temperature resistance, chemical corrosion resistance, high pressure pipelines and storage tanks; 3) Mixed with carbon fiber winding natural gas cylinders, liquefied gas cylinders; 4) Tank gun tube heat jacket, turret, etc; 5) Used as a bulletproof, protection of the substrate. | |||
Our Main Products
1) Molybdenum products: plates, rods/electrode, crucible, tube, boat, fasteners, various molybdenum workpieces, etc.
2) Lab furnace: Box type muffle furnaces, tube vacuum furnace, atmosphere furnace, vacuum furnace and relevant accessories.
3) MoSi2 heating elements and SiC heating elements.
4) Tungsten products: plate, bars, crucible, tube, wire, boat, fasteners, etc.
5) Titanium & tantalum products: plate, bars, crucible
6) Basalt fiber roving and Basalt fiber reinforced coposite.
7) Alumina tubes, alumina crucible
8) Other related products.
