Basic Info.
Product Description
| Item | Specification | Remark | |
Reed width | Reed width(cm) | 110 150 170 | |
| Useful reed width | Reduce 0-60cm (110-170cm) | ||
| Fabric | Material & weave | Gauze fabric | |
| Power | Main power | 2.2kw | |
| Speed | Motor-belt pulley | RPM 500 | |
Weft insertion | Weft selection | Single color | |
Feeder | Vibration model | ||
| Without WBS | |||
| 1 | |||
| Shedding | Shedding method | Crank plain shedding | |
| Heald frame | 2 4 Brand Jinlihua China | ||
| Let off device | Mechanical type Electronic type | Single beam | |
| Flange diameter | Ø800 Ø914 Ø1000 | ||
Take up device | Take up | Mechanical take-up(MTU) | |
| Max cloth roll diameter | Ø600mm(crank) Ø1200mm(jumb batching motion) | ||
| Weft density | Take 40s cotton yarn for example | ||
| 4-10picks/inch | |||
| Beating | Roller beating system | Four-bar beating -up motion (below 230cm) | |
| Selvage | Leno gear selvage | ||
| edge | Tuck-in device or leno selvage | ||
| Cutter | Mechanical cutter | ||
| Lubrication | Manual oil supply | ||
| Stop motion | Warp stop | Electric 2-row contact bar system | |
| Control system | Sanhe brand Made-in-China | ||
| Accessory | Heald wire s.s | 3000pcs | |
| Warp beam | 1:1.5 | ||
| Cloth roller | 1:1.5 | ||
| Reed energy-saving type | 1:1 | ||
| Dropper close or open | 3000pcs | ||
JINLIHUA 's textile machinery business will constantly explores the future of the textile industry by providing products with the high productivity and quality while also implementing active environmental policies including energy conservation and reduction of waste pollution, and providing detailed, attentive service.
Qingdao Jin Lihua Textile Machinery Co.

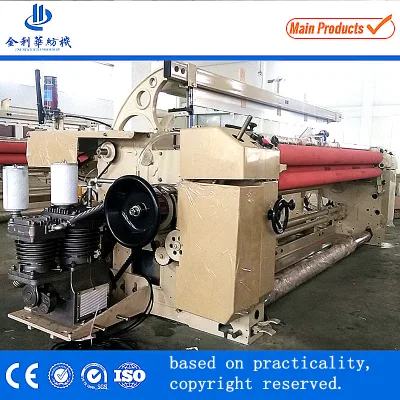

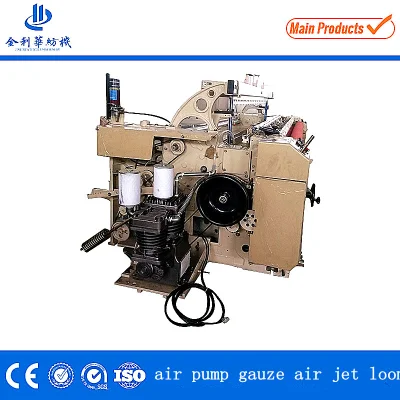

"JLH740" is a high performance weaving air jet loom for new era.we provided Newly upgraded electric components and Integrated high technology to support weaving, JLH740 combines Mechatronics with high technology, which realizes the stable weaving of high quality textile.
Product advantages:
1) It can operate without air compressor, and there is no need to make an air tunnel. This machine saves a lot of power.
2)Using non-sizing yarn to produce the fabric by this model machine.Saving the sizing cost also.
3)the production is much higher than shuttle loom and rapier loom.
4)Exclusive technical and professional team to ensure supply and quality.
5)Easy to operate,and low maintainess charge.
Qingdao Jin Lihua Textile Machinery Co.
New control system had an advanced technology, a high level of security, reliable quality, convenient operation, substantial increase in production efficiency.
*We sincerely hope to establish good business relationship with customers home and abroad, to cooperate frankly on the basis of mutual benefit, reliable quality products and favorable prices.
(1) Q: Are you a manufacturer or agency?
A: We are a professional manufacturer holding our own International Trade Department, for that can better understand customer's needs and offer a reasonable price.
(2) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(3) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(4) Q: How about the quality?
A:The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(5) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(6) What about the delivery time?
A: General delivery time is 20 days or so for one container after we recieved your downpayment.If the order is less and we have stocks also,the delivery time is 10 days or so.If our factory is busy,then we will negotiate the time according to our production plan.
