Basic Info.
Model NO.
PS40
Width
up to 2000mm
Function
FRP(Pultrusion, Rtm,Winding,Hand Lay-up,Molding)
Softness
Soft or Customized
Thickness
0.2mm
Gram Weight
35g~120g
Performance
Compatible with All Resin Types.
Transport Package
Plastic Bag, Carton and Pallet
Specification
40grams per sq. m
Trademark
Tianming
Origin
China
HS Code
5603
Production Capacity
2000t/Month
Product Description

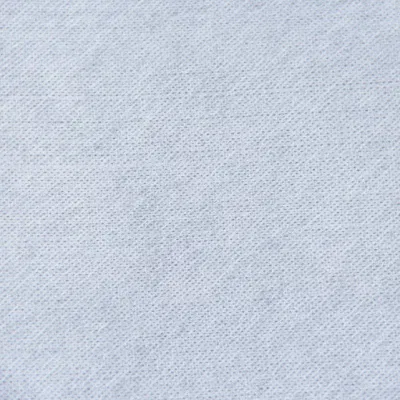

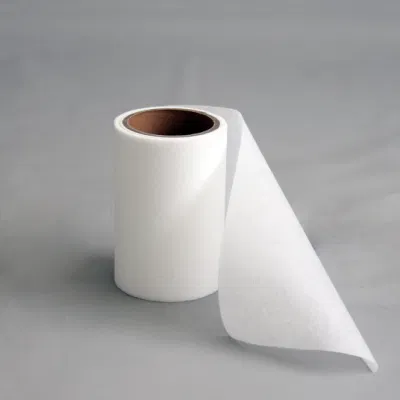

Polyester Mesh Surface Veil35g of Nanjing Tianming:
The surface veil is made of polyester fiber through a special non-woven process. It has high tensile strength, good extensibility and softness, so that the product will not wrinkle during material processing, improve product surface performance, and better protect the mold. The surface veil is good surface material for composite products.
Basic Parameters:
Technical Date:
Qualified by the Third-part Test:
• The odour characteristics - RA
• VOC - SGS
• Asbestos-free - SGS
• RoHs - SGS
• SOC - Shimadzu
etc.
Uses:
Storage:
Unless otherwise specified, the surface veil products should be stored in a dry, cool and moistureproof area. Room temperature and humidity should always be maintained at 15°C - 35°C, 35% - 65% respectively. Best used within 12 months after production date. The surface veil products should remain in their original packaging until just prior to use.
Surface Veil Series:
About Us:
Our Services
1. 24 hours online reply.
2. Other thickness & size also available on request.
3. Your business relationship with us will be confidential to any third party.
4. Good after-sale service offered, please get back if you got question.
FAQ:
Question 1: Are you a factory or a trade company?
Answer: We are manufacturer with more than 20 years production experience and have our top sales for the trade service.
Question 2: Can I try to get a sample before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: How about the lead time?
Answer: Within 5-7 days after getting the prepayment.
Question 4: Where is your factory located? How can I visit there?
Answer: Our factory is located in Nanjing, Jiangsu, China. You can fly to Nanjing airport directly.
Welcome to your visit!
Question 5:Can you customize the product according to our needs?
Answer:Of course,Our company has more than ten years of experienced R & D design team, can customize products according to your needs.
The surface veil is made of polyester fiber through a special non-woven process. It has high tensile strength, good extensibility and softness, so that the product will not wrinkle during material processing, improve product surface performance, and better protect the mold. The surface veil is good surface material for composite products.
Basic Parameters:
| Model No.: | Polyester Mesh Surface Veil35g |
| Weight: | 0.11oz. per sq.ft or 35 grams per sq.m |
| Width: | up to 2000mm |
Technical Date:
| Loss on Ignition: | 9% |
| Moistrure: | ≤0.2% |
| tension strength: | MD(N/5CM) 106; CD(N/5CM) 22 |
Qualified by the Third-part Test:
• The odour characteristics - RA
• VOC - SGS
• Asbestos-free - SGS
• RoHs - SGS
• SOC - Shimadzu
etc.
Uses:
Storage:
Unless otherwise specified, the surface veil products should be stored in a dry, cool and moistureproof area. Room temperature and humidity should always be maintained at 15°C - 35°C, 35% - 65% respectively. Best used within 12 months after production date. The surface veil products should remain in their original packaging until just prior to use.
Surface Veil Series:
| Item | Weight | Width | Tensile Strength | Elongation at Break | Use and Craftwork | ||
| (oz. per sq.ft) | (grams per sq.m) | (inch) | (mm) | +/-10% 200MM/MIN | +/-15% | Pultrusion, Hand lay-up, Winding, RTM, Compression Molding, Injection ect. | |
| Polyester | 0.07 | 20 | 42 | 1060 | MD(N/5CM) 35 | 30 | |
| CD(N/5CM) 18 | 30 | ||||||
| 0.11 | 35 | 42 | 1060 | MD(N/5CM) 42 | 35 | ||
| CD(N/5CM) 22 | 36 | ||||||
| 0.15 | 45 | 87 | 2200 | MD(N/5CM) 120 | 45 | ||
| CD(N/5CM) 90 | 110 | ||||||
| Droplet Fiber Surface Veil | 0.11-0.23 | 35-70 | 79-87 | 2000-2200 | MD(N/5CM) 106 | 30.7 | |
| CD(N/5CM) 22 | 142.4 | ||||||
| Fiberglass Surface Veil | 0.1 | 30 | 79 | 2000 | MD(N/5CM) 212.3 | Loss on Ignition 9% Moisture content 0.2% | |
| CD(N/5CM) 207.6 | |||||||
| 0.16 | 50 | MD(N/5CM) 217 | |||||
| CD(N/5CM) 208.6 | |||||||
| 0.3 | 90 | MD(N/5CM) 224.8 | |||||
| CD(N/5CM) 207.6 | |||||||
