Basic Info.
Model NO.
geogrid
Application
Retaining Wall, Road Base
Viscose
With Viscose
Function
Reinforcement
Classification
Fiberglass Geogrid
Material
Plastic
Length
50-100m
Width
1-6m
Mesh Size
25.4*25.4, or as Request.
Elongation at Break
13% Max
Tensile Strength
Tensile Strength
Transport Package
Inner Pipe + Outside Woven Bag or Film
Specification
15-50KN
Trademark
HongLi
Origin
Shandong, China
HS Code
6815999000
Production Capacity
50000sqm/Per Day Depends on The Specification
Packaging & Delivery
Package Size
586.00cm * 235.00cm * 238.00cm
Package Gross Weight
30000.000kg

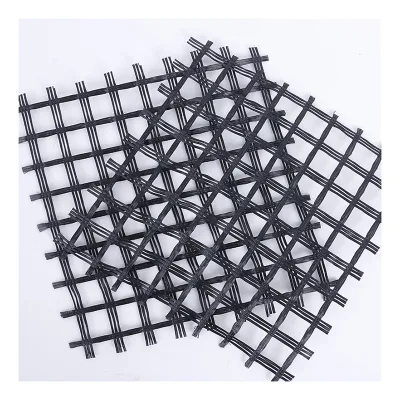

Product Description
| Fiberglass Geogrid: (CE/ISO Certificates) | |||||||||
| Specification | 25-25 | 40-40 | 50-50 | 80-80 | 100-100 | 120-120 | 200-200 | 400-400 | |
| Intensity (KN/M) | Warp | 25 | 40 | 50 | 80 | 100 | 120 | 200 | 400 |
| Weft | 25 | 40 | 50 | 80 | 100 | 120 | 200 | 400 | |
| Elongation ( %) | ≤4 | ||||||||
| Mesh Size (mm) | 25.4*25.4; 12.7*12.7 | ||||||||
| Roll Width (m) | 1/2/3.95/4/5.3/6 | ||||||||
| Roll Length (m) | 50/100 | ||||||||
| Types | Regular/self-adhesive bitumen coating | ||||||||
Mesh SizeFiberglass geogrid composite geotextile by glue Fiberglass composite geogrids is the composite of fiberglass geogrid combined with nonwoven fabric or geotextile. It installed between two asphalt layers, the main function is to reduce reflective and fatigue cracking, reduce rutting, extend pavement structural life.
Fiberglass geogrids: 25*25KN, 30*30KN, 40*40KN, 50*50KN, 60*60KN, 80*80KN, 100*100KN, 120*120KN
Or do customerised as per your requirements.
Product Features
The products has high intensity, low elongation ratio, thermostable, high module, light weight, good toughness, anti-corrosive, long life and so on characteristics, and can be applied in the old cement road surface, runway's service, the dike, the river bank, the side slope protection, project domains and so on road bridge connection surface enhancement processing.
It can reinforce the road surface and prevents the road surface rut fatigue cracking the hot-cold expansion crack and the following reflection crack, and can scatter the road surface bearing stress, extense road surface service life, the high tensile strength and the low elongation ratio, no long-term slow change. The physical chemistry stability and hot-stability are good, anti-weary dehiscence, anti-low temperature shrinkage crack and postpone reduction reflection crack.
Packaging Details
| Packaging Details: | Items per Carton: in rolls Package Size per Unit: 600X40X40 CM Gross Weight per Unit: 576.00 KG / Square Meter Package Type: by black woven geotextile Inner Pipe + Outside Woven Bag or Film |
| Delivery Detail: | 15 days |
Introduction to Dezhou Hongli Geomaterials Co., Ltd Dezhou Hongli Geotechnical Materials Co., Ltd. has many years of industry production experience and is a practice and participant in Chinese civil engineering factory materials. China is a leading producer of geotechnical materials in the world.
We are located in Dezhou City, Shandong Province and are renowned for the high-quality and diverse geotechnical materials we use in our products.
Our company has become a leader in the manufacturing and supply of geotechnical materials. We produce a series of geotextiles, geomembranes, geonets, geogrids, ecological bags, polyethylene sheets, and related products.
Our core products include:
1. Short fiber needle punched nonwoven geotextile, filament spunbonded needle punched nonwoven geotextile, polypropylene high-strength geotextile, filament woven geotextile, etc
2. Smooth faced high-density polyethylene geomembrane for environmental protection, rough faced high-density polyethylene geomembrane for environmental protection (GH-2T1 GH-2T2), etc
3. Composite geomembrane, three-dimensional geotechnical drainage network, bentonite waterproof blanket, ecological slope protection blanket, etc
4. Single stretch plastic geogrid, biaxial stretch plastic geogrid, glass fiber geogrid, polyester polyester fiber geogrid, etc
5. Geonet and 3D Geonet Cushion
6. Drainage materials
We have an experienced production and R&D professional team
Our services
quality assurance
1. Regularly or according to your requirements, we entrust national testing institutions to conduct quality inspections
2. Strictly follow the ISO9001-2008 international quality system standard to monitor and manage the entire process of production, quality testing, and measurement to ensure product quality
3. We provide refund, replacement, and repair services for construction delays or unqualified construction related to quality (excluding damage or losses caused by customer liability or uncontrollable natural disasters). We will respond to customer feedback on quality issues within 24 hours.
after-sale service
1. In order to provide comprehensive technical support to customers, we will promptly provide technical and other relevant information as required.
2.If necessary, we will assign professional technical personnel to the construction site to provide technical training to the construction personnel and provide technical guidance throughout the entire construction process.
3. For damages caused by transportation and delivery, we will inspect them through the provided pictures and videos after receiving the complaint. If our responsibility is confirmed, we will provide free replacement.
After the construction is completed, according to your requirements, our technical personnel can participate in the final acceptance
Our abilities
Our company is a comprehensive trading company that integrates design, production, and sales, with its own factories and cooperative factories. You will also find our prices very competitive.
All products are produced in accordance with the requirements of the national quality system, and have been sampled and accepted by the national and provincial technical supervision departments, all of which meet national standards
international partnerships
We export various geotechnical materials and other products to various parts of the world. With excellent quality and service, our products are exported to the United States, Japan, Europe, Australia, North America, South America, and Southeast Asia.
Industry certification
Quality is the core of our work. We focus on creating high-quality products and processes, and providing excellent customer service. Therefore, our company has passed ISO9001 and ISO14001 certifications.
The company adheres to the policy of "pursuing excellence, integrity and innovation, and win-win cooperation", conforms to popular trends, responds quickly, and continuously provides products with higher quality and more competitive prices, winning unanimous praise from customers.
Work with us
If you are interested in a wider range of our geotechnical materials and other products, please contact one of our representatives today to discuss your requirements.
We welcome the establishment of new partnerships with businesses around the world.
