Basic Info.
Model NO.
ELT
Product Name
Polyester Geogrid
Raw Material
Polyester Fiber
Performance
High Tensile Strength Longitudinal and Transverse
Strength
20knx20kn to 1300knx1300kn
Type
Geogrid
Function 1
Stabilisation and Reinforcement
Coating
Normal Is PVC
Width
1m to 6m, Normal Is 3.95m
Length
Normal Is 100m
Certificate
ISO and Ce
Transport Package
3.95mx100m Per Roll, 60000m2/40′hq
Specification
CE
Trademark
elite-indus
Origin
Anhui
HS Code
39269090
Production Capacity
300000 Square Meters Per Day
Product Description

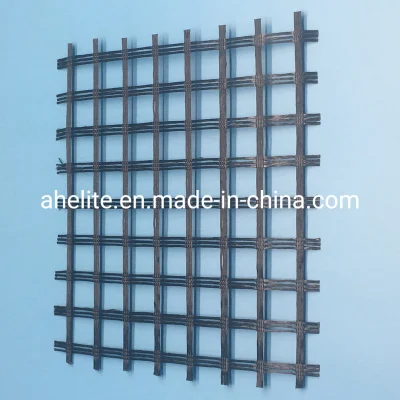

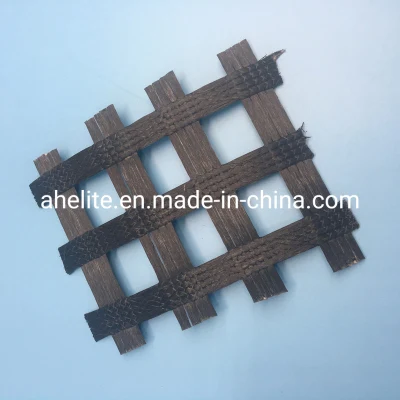

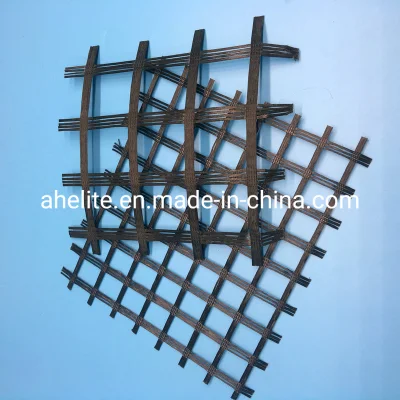

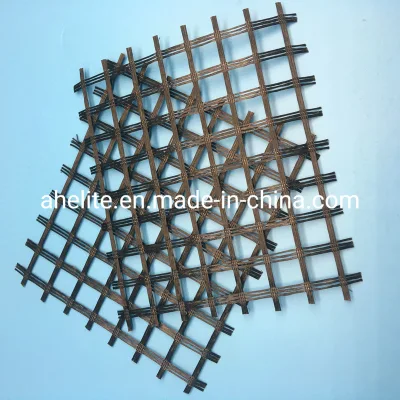

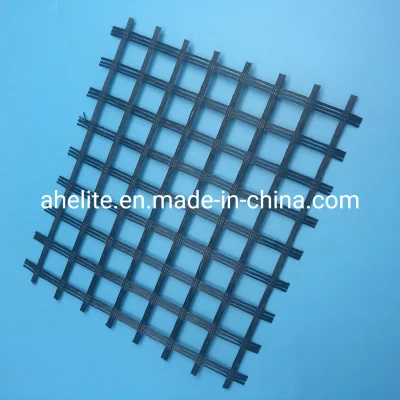

PVC Resin Coated Polyester PET Geogrids Biaxial/Uniaxial/BX/UX
1,Information
EltGrid-PETG polyester geogrid adopts high strength, high modulus,and low shrinkage twisting industrial polyester fiber as
raw material. It is warp knitted with oriented structure and in the condition of no bending among warp and weft direction.
Its crossing points are bundled and bended together by high strength long polyester fiber forming tough conjunction.
Then it forms into mesh size product after coated with high quality oil or water-soluble PVC
2,Product Features:
1). High strength, high modulus and low elongation.
2). Aging resistance and high tensile strength.
3). Pre-designed and easily combing with gravel and soil.
Main Specification:
1), Tensile Strength: 20KnX20Kn to 1300KnX1300KN
2), Mesh size:12.7mmX12.7mm/25.4mmX25.4mm
3), Coating: PVC
4), Roll size: 3.95mX50/100m, 5.8mX50/100m
3, Production Process:
1,Raw Material Polyester Yard 2, Large Yard-transfer Progress
3, Warp knitting to greige cloth 4,Coting with PVC Progress
4,Specification:
1) Biaxial/Bx Type
2) Uniaxial/UX Type
5, Test
6, Packing:
7, Application:
8, Our Company:
ANHUI ELITE INDUSTRIAL CO.,LTD
ELITE was established in 2007, has become one of the leading and professional suppliers of many kinds of Geosynthetics
(Geotextile,Geomembrane, Geogrid,Geocell, GCL,Geocomposite) in the world market.
ELITE equipements are mainly import from Germany, Italy, Cabada, France. We have one full set of precise testing instrument
and quality inspection team, technology research & Development team.
9, Contact Information:
Pls feel free to contact us at Anytime:
Mr Mika Chang
1,Information
EltGrid-PETG polyester geogrid adopts high strength, high modulus,and low shrinkage twisting industrial polyester fiber as
raw material. It is warp knitted with oriented structure and in the condition of no bending among warp and weft direction.
Its crossing points are bundled and bended together by high strength long polyester fiber forming tough conjunction.
Then it forms into mesh size product after coated with high quality oil or water-soluble PVC
2,Product Features:
1). High strength, high modulus and low elongation.
2). Aging resistance and high tensile strength.
3). Pre-designed and easily combing with gravel and soil.
Main Specification:
1), Tensile Strength: 20KnX20Kn to 1300KnX1300KN
2), Mesh size:12.7mmX12.7mm/25.4mmX25.4mm
3), Coating: PVC
4), Roll size: 3.95mX50/100m, 5.8mX50/100m
3, Production Process:
1,Raw Material Polyester Yard 2, Large Yard-transfer Progress
3, Warp knitting to greige cloth 4,Coting with PVC Progress
4,Specification:
1) Biaxial/Bx Type
| Item | PETG 30-30 | PETG 40-40 | PETG 60-60 | PETG 80-80 | PETG 100-100 | PETG 120-120 | |
| Stretching Ratio %≤ | 13 | 13 | 13 | 13 | 13 | 13 | |
| Tensile Strength | TD | 30 | 40 | 60 | 80 | 100 | 120 |
| MD | 30 | 40 | 60 | 80 | 100 | 120 | |
| Item | PETG 150-150 | PETG 200-200 | PETG 260-260 | PETG 300-300 | PETG 350-350 | PETG 400-400 | |
| Stretching Ratio %≤ | 13 | 13 | 13 | 13 | 13 | 13 | |
| Tensile Strength | TD | 150 | 200 | 260 | 300 | 350 | 400 |
| MD | 150 | 200 | 260 | 300 | 350 | 400 | |
| Item | PETG 500-500 | PETG 600-600 | PETG 700-700 | PETG 800-800 | PETG 900-900 | PETG 1000-1000 | |
| Stretching Ratio %≤ | 13 | 13 | 13 | 13 | 13 | 13 | |
| Tensile Strength KN | TD | 500 | 600 | 700 | 800 | 900 | 1000 |
| MD | 500 | 600 | 700 | 800 | 900 | 1000 | |
| Mesh Size mm | 12.7mmX12.7mm / 25.4mmX25.4mm/50mmX50MM | ||||||
| Roll size | 3.95MX50M/ 3.95MX100M/5.8MX50M/5.8MX100M or as per your request | ||||||
2) Uniaxial/UX Type
| Item | PETG 35-20 | PETG 55-20 | PETG 60-30 | PETG 80-30 | PETG 100-30 | PETG 150-30 | |
| Stretching Ratio %≤ | 13 | 13 | 13 | 13 | 13 | 13 | |
| Tensile Strength | TD | 35 | 55 | 60 | 80 | 100 | 150 |
| MD | 20 | 20 | 30 | 30 | 30 | 30 | |
| Item | PETG 180-30 | PETG 200-30 | PETG 260-30 | PETG 300-30 | PETG 350-30 | PETG 400-50 | |
| Stretching Ratio %≤ | 13 | 13 | 13 | 13 | 13 | 13 | |
| Tensile Strength | TD | 180 | 200 | 260 | 300 | 350 | 400 |
| MD | 30 | 30 | 30 | 30 | 30 | 50 | |
| Item | PETG 500-50 | PETG 600-50 | PETG 700-50 | PETG 800-50 | PETG 900-50 | PETG 1000-50 | |
| Stretching Ratio %≤ | 13 | 13 | 13 | 13 | 13 | 13 | |
| Tensile Strength KN | TD | 500 | 600 | 700 | 800 | 900 | 1000 |
| MD | 50 | 50 | 50 | 50 | 50 | 50 | |
| Mesh Size mm | 12.7mmX12.7mm / 25.4mmX25.4mm/50mmX50MM | ||||||
| Roll size | 3.95MX50M/ 3.95MX100M/5.8MX50M/5.8MX100M or as per your request | ||||||
5, Test
6, Packing:
7, Application:
1).Strengthening soft roadbed of high-class roads and high speed railways, separating different subgrade soil material.
2). Using in reclamation engineering, dam, landslides and retaining wall.
3). Enhancing various roadbeds.
4). Strengthening soft roadbed of airport.
