Basic Info.
Model NO.
thermoplastic composite
Name
Thermoplastic Honeycomb Panel
Area Weight PF Cfrtp Honeycomb Panel
2.0-8.0 Kg/M2
Core Material of Cfrtp Honeycomb Panel
PP Honeycomb Core
Panel Thickness
8mm-50mm
Panel Width of Cfrtp Honeycomb Panel
0-2700mm
Color of Cfrtp Honeycomb Panel
Natural and Black
Surface of Cfrtp Honeycomb Panel
Can Be Laminated with Anti-UV, Anti-Aging Film etc
Application of Cfrtp Honeycomb Panel
Truck Body, Scaffoldings, etc
Resin of Cfrtp Honeycomb Panel
PP, PE, Pet, PETG, PA6.etc
Packing Cfrtp Honeycomb Panel
Pallet, Plywood Box, as Customized
Place of Origin
Qingdao, China
Core Material
PP Honeycomb
Advantage
Heat Preservation
MOQ
100sqm
Transport Package
Scaffold Panel Packing Nude Packing or Pallet
Specification
Scaffold Panel size as per reuqest
Trademark
lusafe
Origin
China
HS Code
3921909090
Production Capacity
7000 Square Meters Per Day
Product Description
Polypropylene Continuous Fiberglass Reinforced Thermoplastic Composites
In short, what we could provide:
(Click on the name below to reach the corresponding product link)
| 1 | Continuous Fiberglass Reinforced Thermoplastic products, including --Unidirectional tapes --laminate sheet --Honeycomb sandwich panel --Foam Core sandwich panel etc. |
| 2 | Machinery line, which could produce the above products |
| 3 | Factory construction guidance, from 0 to a functioning factory. |

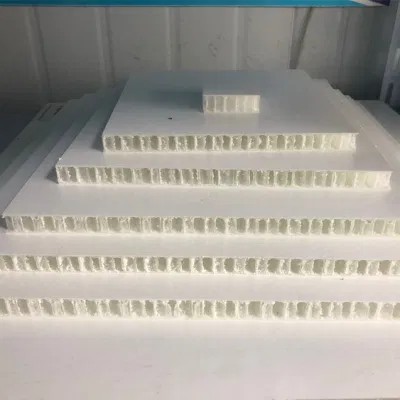

Here below are the Continuous Fiberglass honeycomb panels:
The skin is the CFRP sheet(continuous fiber-reinforced thermoplastic). It contains resin and fibers. The resin acts as a matrix that accounts for 30% to 40% of the total weight. The resin can be PA, PE, PP, epoxy, phenolic, etc. The GRP sheet takes glass fiber as the reinforcement. The alternatives can be carbon fiber and other non-metallic and inorganic fibers. The fiber roughly accounts for 60% to 70% of the total weight. Its core is either plastic foam or plastic honeycomb.
The structure of CFRP Sandwich Panels helps you know more about the sandwich panel
The skin of the panel is made of UD tapes in several directions, named CFRT sheet in the below photos.
CFRT contains PP resin, it can be heated and laminated on PP honeycomb panel directly, so it can save the cost of film or glue. The surface can be designed to be anti-slip.
What we can provide:
| Type | Fiberglass sheet + Honeycomb core +Fiberglass sheet |
| Core Material | PP Honeycomb core, Aluminum Honeycomb core. |
| Skin Type | CFRT Sheet,2 to 9 layers, |
| Panel Width | 0-2700mm |
| Thickness | 8mm-50mm |
| Length | Customize |
| Color | White, Black, or Customized |
| Surface effect | It can be used with anti-ultraviolet and anti-aging films, and can also be laminated with non-woven fabrics and decorative films. |
| Application | RVs, trailers, vans, dry vans, refrigerated trucks, campers, building formwork, scaffolding, mobile homes, sports products, truck floor, etc. |
| Advantage | 1. Lightweight 2. Moisture resistance and rust resistance; 3. Completely recyclable, environment friendly; 4. Excellent compression strength, stiffness, and impact resistance; 5. Customizable size and thickness; |
| Leading time | 4 weeks |
Our fiberglass honeycomb panels have the following advantages:
- Low density: Since PP/PC honeycomb is a porous material, the entire panels are lightweight.
- Good sound insulation and heat insulation performance: good sealing performance greatly limits the spread of heat and sound waves.
- Shock absorption: Dense honeycombs and high-strength FRP skin disperse pressure.
- Good flatness and rigidity: Using continuous glass fiber thermoplastic sheet as skin.
The surface could be used with anti-ultraviolet and anti-aging films, and can also be laminated with non-woven fabrics and decorative films.
CFRT Fiberglass honeycomb panels could be used in Transportation, Dry van bodies, recreational vehicle floors, Scaffolding, building formwork, etc.
The honeycombed panel on the right is an unqualified product, want to know why? contact us.
Nude Packaging or Pallet Packing
CFRTP UD TAPES CFRT laminate sheet Foam Core Panel
If you want to build a factory that produces a continuous fiber-reinforced thermoplastic composite, we could help you.
Factory construction guidance, from 0 to a functioning factory.
and also regarding the machinery line, we have experienced engineers, we could supply the machinery line.
Factory construction guidance, from 0 to a functioning factory.
and also regarding the machinery line, we have experienced engineers, we could supply the machinery line.
Choose Lusafe Fiberglass Sandwich Panels
Lusafe fiberglass sandwich panels factory covers an area of tens of thousands of square meters, with a daily production area of more than 10,000 square meters. Our FRP panels are very popular in the international market and sell well in Europe, South America, North America, the Middle East, Central Asia, Southeast Asia, Africa, and other markets.
