Basic Info.
Model NO.
PET Geogrid
Application
Retaining Wall, Steep Slop, Dam, Road Base, Road Construction and Soft Soil Reinforcement
Viscose
Without Viscose
Function
Anti-slip, Reinforcement, Stabilization
Classification
Polyester Geogrid
Material
Polyester
Feature
High Tensile Strength
Name
Polyester Geogrid
Width
1-6m
Length
50-200m or as You Need
Model
Tggs-Jb
Keyword
Polyester Geogrid
Transport Package
Straps for Rolls Tightening
Specification
30-1200KN/m
Trademark
Zhongloo
Origin
China
HS Code
590310900
Production Capacity
50000square/Day
Packaging & Delivery
Package Size
50.00cm * 50.00cm * 30.00cm
Package Gross Weight
1.000kg
Product Description
Polyester Biaxial Geogrid for For Road Basement Reinforcement
| Warp knitted polyester geogrid | |||||||
| item | Specification | ||||||
| Standard breaking strength≥(KN) | 20 | 35 | 50 | 80 | 100 | 125 | 150 |
| Vertical and horizontal ultimate tensile strength≥(KN/M) | 20 | 35 | 50 | 80 | 100 | 125 | 150 |
| Vertical and horizontal ultimate tensile strength elongation≤(%) | 13 | 14 | |||||
| Tensile strength at 2% elongation≥(KN/M) | 7 | 12 | 17 | 28 | 35 | 43 | 52 |
| Tensile strength at 5% elongation≥(KN/M) | 14 | 24 | 34 | 56 | 70 | 86 | 104 |

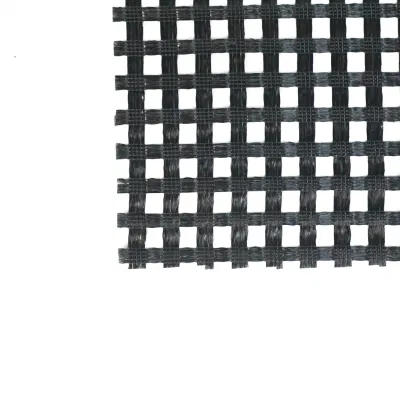

POLYESTER GEOGRID
Polyester geogrid is a new kind of earthwork base material;which is used to strengthen the road surface and roadbed. Composing of high-strength polyester yarns,coated with an inorganic sizing agent.Features
1.High tensile strength low elongation
2.High tear - resistant
3.Strong combination with gravel and soil
4.Anticorrosive,anti-aging and alkali-resistant
Polyester geogrid is a new kind of earthwork base material;which is used to strengthen the road surface and roadbed. Composing of high-strength polyester yarns,coated with an inorganic sizing agent.Features
1.High tensile strength low elongation
2.High tear - resistant
3.Strong combination with gravel and soil
4.Anticorrosive,anti-aging and alkali-resistant
Application

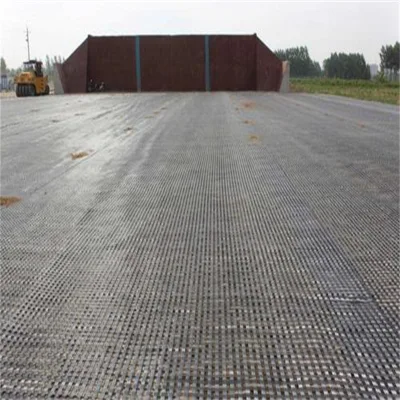

It mainly applied in strengthening soft ground of rail and road.
It mainly applied in strengthening soft ground of rail and road.
Polyester warp knitted polyester geogrid adopts high strength polyester industrial filament, weaving warp mesh fabric through warp knitting, and processing it into geogrid by PVC coating. It is applied to the treatment of soft soil foundation and reinforcement of subgrade, dyke and other projects, so as to improve the quality of the project and reduce the cost of the project.

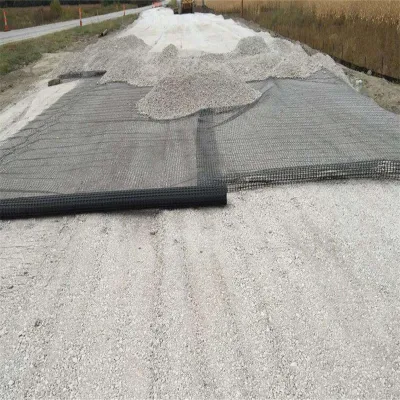

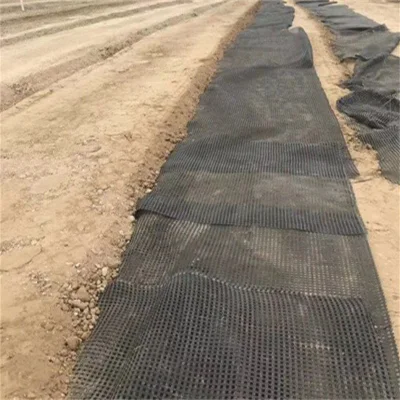

1. warp knitted polyester geogrid is used in highway, railway, municipal road and other road soft roadbed reinforcement, can effectively improve the roadbed strength and delay the reflection cracks of the road.
2. the reinforcement and isolation of dam and river in hydraulic engineering of warp knitted polyester geogrid, reinforce the soft soil foundation, strengthen its protection ability, and improve the bearing capacity and stability of the foundation.
3. warp knitted polyester geogrid reinforced embankment slope, retaining wall reinforcement, enhance the overall strength, highway, railway, water conservancy and other soft soil foundation reinforcement.
4. warp knitted polyester geogrid for railway ballast protection: because the train vibration and wind and rain, causing loss of ballast, with geogrid encased ballast, ballast to prevent the loss, improve the stability of the roadbed;
5.warp knitted polyester geogrid for Railway Retaining Wall: the geogrid reinforced retaining wall of Railway on the train station, for example with Taiwan and Taiwan goods, can prolong the service life, reduce maintenance costs.
6.warp knitted polyester geogrid reinforced retaining wall in highway side and vertical retaining wall with geogrid, can improve the bearing capacity of the retaining wall.
2. the reinforcement and isolation of dam and river in hydraulic engineering of warp knitted polyester geogrid, reinforce the soft soil foundation, strengthen its protection ability, and improve the bearing capacity and stability of the foundation.
3. warp knitted polyester geogrid reinforced embankment slope, retaining wall reinforcement, enhance the overall strength, highway, railway, water conservancy and other soft soil foundation reinforcement.
4. warp knitted polyester geogrid for railway ballast protection: because the train vibration and wind and rain, causing loss of ballast, with geogrid encased ballast, ballast to prevent the loss, improve the stability of the roadbed;
5.warp knitted polyester geogrid for Railway Retaining Wall: the geogrid reinforced retaining wall of Railway on the train station, for example with Taiwan and Taiwan goods, can prolong the service life, reduce maintenance costs.
6.warp knitted polyester geogrid reinforced retaining wall in highway side and vertical retaining wall with geogrid, can improve the bearing capacity of the retaining wall.
Q:Can you send samples?
A:Yes,we are very happy to provide you with free samples to check the quality of our products.
Q:Are you a manufacturer or a trading company?
A:Our company located in Hefei,Anhui Province, with registered capital of 102 million yuan.It is a professiona lmanufacturer of geomembrane, geotextile, geogrid and other products.So we have the competitive price with best quality.
A:Our company located in Hefei,Anhui Province, with registered capital of 102 million yuan.It is a professiona lmanufacturer of geomembrane, geotextile, geogrid and other products.So we have the competitive price with best quality.
Q:Can you produce the product according to customers' requirements?
A:Sure,we are professional manufacturer,OEM and ODM are both welcome.
A:Sure,we are professional manufacturer,OEM and ODM are both welcome.
Q:How long is the delivery time?
A:General within 3-7days after received the deposit
A:General within 3-7days after received the deposit
Q:How to control product quality?
A:Our factory adopts lean management,products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
A:Our factory adopts lean management,products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
