Basic Info.
Model NO.
Woven Roving Combo mat
Stardard Width
1250mm
Transport Package
Brown Box and Pallets
Specification
40KG/CTN, 50KG/CTN
Trademark
TIANMA
Origin
China
HS Code
70193990
Production Capacity
10000 Tons/Year
Product Description
Product Description

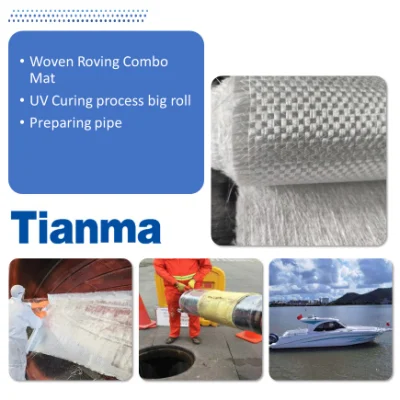

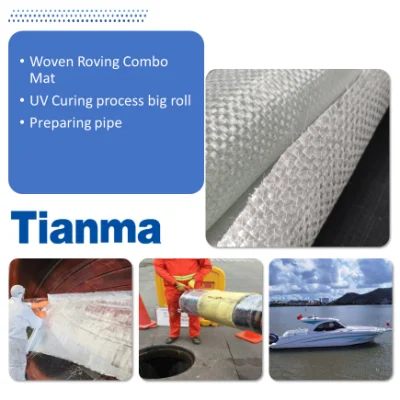

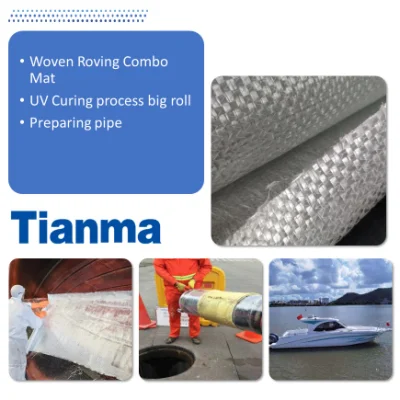

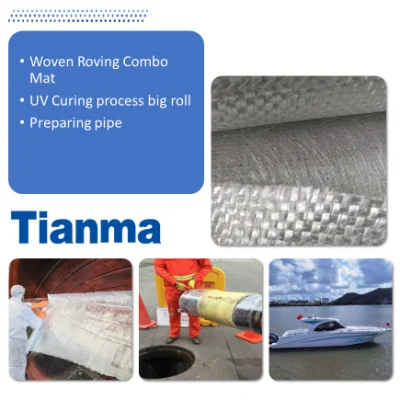

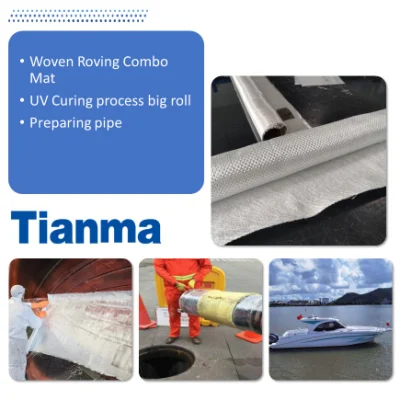

Needled combination Mat is a ideal composite needled by E-glass chopped stands onto the fiberglass fabric which is binder stitch yarn free featured excellent impregnation in various resin system. The reinforced mat has good property of mechanical ensured by three-dimensional direction.Properties:
Multi-layer finished one time,decrease layer and enhance efficiency.
Providing the product with multi-directional mechanical strength.
Packing &Storage:
Each roll covering by polyethylene plastic bag,then placed into carton,and set on pallet.
Each pallet stack 9 or 16 cartons.The pallet shall no be higher than 2 layers.
Product shall be placed under dryness condition and shall no be open the covering membrane until applying.
Technical Data:
| Type | Area Weight(g/m2) | Woven Roving/Chopped Strand(g/m2) | Water Content(%) | Wet Speed(<=S) | Width(mm) |
| EMK400/300 | 700 | 400/300 | <=0.2 | 60 | 200-2600 |
| EMK500/300 | 800 | 500/300 | <=0.2 | 60 | 200-2600 |
| EMK500/450 | 950 | 500/450 | <=0.2 | 60 | 200-2600 |
| EMK600/300 | 900 | 600/300 | <=0.2 | 60 | 200-2600 |
| EMK600/450 | 1050 | 600/450 | <=0.2 | 60 | 200-2600 |
| EMK800/300 | 1100 | 800/300 | <=0.2 | 60 | 200-2600 |
| EMK800/450 | 1250 | 800/450 | <=0.2 | 60 | 200-2600 |
Application:
Pipe relining
