Basic Info.
Model NO.
10kn to 60kn
Classification
Plastic Geogrid
Material
Plastic
Raw Material
PP
Tensile Strength
15-50kn
Mesh Size
30-65mm
Width
1-6m
Length
50m
Certificate
CE /ISO9001
Transport Package
Colored Tapes
Specification
3.95*50m/roll
Trademark
Lianyi Jiuzhou
Origin
China
HS Code
3926909090
Production Capacity
1000000 Sqm Per Day
Product Description

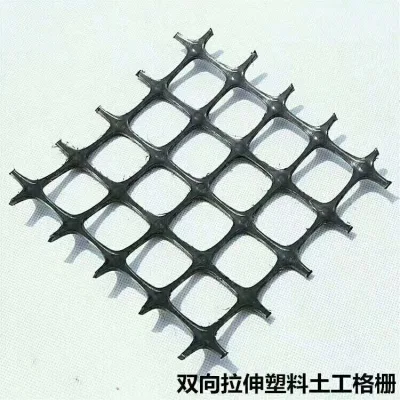

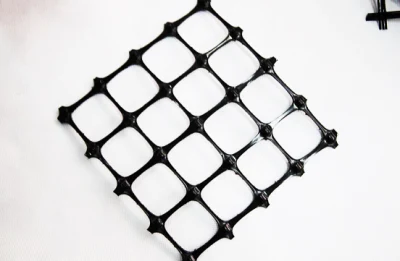

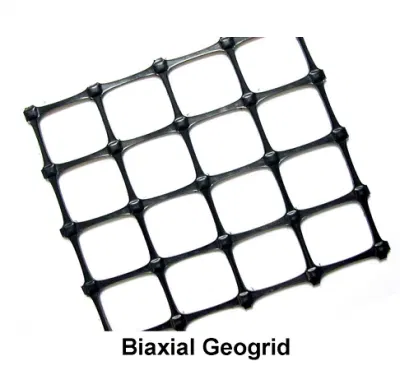

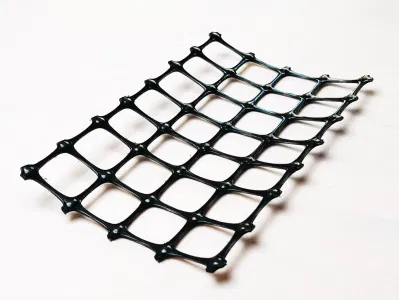

Soil Reinforcement Extruded PP Biaxial Plastic Geogrid
Product Introduction
PP Extruded Biaxial Geogrid is manufactured from Polypropylene, from the process of extruding, longitudinal stretching and transverse stretching. And have high tensile strength at both longitudinal (MD) and transverse (TD) directions. It makes soil reinforced with its excellent structure stability and strong mechanical interlock performance.
Advantages
Product Application
Soil reinforcment ,Base reinforcement, Subgrade reinforcement, Embankment stabilization
Company Information
Feicheng Lianyi Engineering Plastics Co., Ltd is the currently one of the biggest geosynthetics manufacturer in China . It is located in Feicheng city,Shandong province of China. We are specilized in series of Geogrids, Geotextiles,Geomembranes,Geocell etc,and have the absolutely advantage for the quality in this field of China.

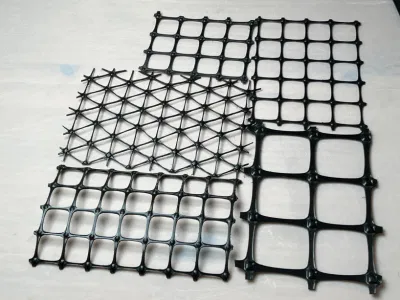

Our Main products include PP Biaxial Geogrid,Fiberglass Geogrid,Self adhesive Fiberglass Geogrid,Polyester Geogrid,HDPE Uniaxial Geogrid,Welded Geogrid,Composite Fiberglass Geogrid & Polyester geogrid with Spunbond nonwoven geotextile or Needlepunched Nonwoven geotextile by glue,Fiberglass Geogrid & Polyester Geogrid knitted Spunbond Nonwoven geotextile or Needlepunched Nonwoven geotextile impregnated by bitumen,Combigrid (PP Biaxial Geogrid with Nonwoven Geotextile by welding),Nonwoven Geotextile,HDPE Geocell,PP Woven Geotextile,Mining Geogrid etc .
We have always adhered to the philosophy of prioritizing quality, strict management, high-quality service, following customer requirements, consistently exploring and advancing, serving customers well, in order to seek long-term cooperation
Any further demands for our materials if you have,you can contact with our Marketing Manger Mr Allen.
Allen
Manager
Our Certificates
FAQ
Q1:What is your delivery time?
A1:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q2:Where is your company?
A2:Feicheng shandong province, China and if you want to coming,please call me ,I will arrange your schedule.
Q3:Are you trading company or manufacturer?
A3:We are manufacturer and we have BV certification. So we have a lower price than trading company.
Q4:What is your delivery method?
A4:T/T, Western Union, L/C,PAYPAL...
Q5:Do you provid samples?Is it free or extra?
A5:Yes, we can offer the sample for free charge but do not pay the cost of freigh.
Q6:What is your terms of payment?
A6:Payment<=1000USD,100% in advance.Payment>=1000USD, 30%T/T in advance, balance before shippment. If you have another question, please to contact me.
Product Introduction
PP Extruded Biaxial Geogrid is manufactured from Polypropylene, from the process of extruding, longitudinal stretching and transverse stretching. And have high tensile strength at both longitudinal (MD) and transverse (TD) directions. It makes soil reinforced with its excellent structure stability and strong mechanical interlock performance.
Advantages
- Distribution of loads and therefore reduction in stress concentration over the soil.
- The geogrids structural junctions, rigid ribs and thick walls help lock aggregate, increasing its shear resistance.
- As a result when a vertical load is applied the aggregate is restrained by the ribs reducing deformation. (Lateral Restraint)
- Decrease in long term deformation (creep).
- Increase in load distribution. (Bearing Capacity Increase)
- Controls differential settlement.
| Property | Test Method | PP15-15 | PP20-20 | PP30-30 | PP40-40 | PP50-50 | BX1100 | BX1200 | |
| Ulimate tensile strength(kn/m) | MD | ASTM D 6637 | 15 | 20 | 30 | 40 | 50 | 12.4 | 19.2 |
| CD | 15 | 20 | 30 | 40 | 50 | 19.0 | 28.8 | ||
| Elongation at max load (%) | MD | 13 | |||||||
| CD | 13 | ||||||||
| Tensile strength at 2% elongation(kn/m) | MD | 6 | 7 | 11 | 14 | 18 | 4.1 | 6 | |
| CD | 6 | 7 | 11 | 14 | 18 | 6.6 | 9 | ||
| Tensile strength at 5% elongation(kn/m) | MD | 11 | 14 | 21 | 28 | 35 | 8.5 | 11.8 | |
| CD | 11 | 14 | 21 | 28 | 35 | 13.4 | 19.6 | ||
| Minimum Carbon Black( %) | 2 | ||||||||
| Mesh Size (mm) | 31*31 33*33 36*36 39*39 | ||||||||
| Junction Efficiency( %) | 95 | ||||||||
| Roll width(m) | 2/3/3.95/5/5.9 | ||||||||
| Roll length(m) | 50/75/100 | ||||||||
Product Application
Soil reinforcment ,Base reinforcement, Subgrade reinforcement, Embankment stabilization
Company Information
Feicheng Lianyi Engineering Plastics Co., Ltd is the currently one of the biggest geosynthetics manufacturer in China . It is located in Feicheng city,Shandong province of China. We are specilized in series of Geogrids, Geotextiles,Geomembranes,Geocell etc,and have the absolutely advantage for the quality in this field of China.
Our Main products include PP Biaxial Geogrid,Fiberglass Geogrid,Self adhesive Fiberglass Geogrid,Polyester Geogrid,HDPE Uniaxial Geogrid,Welded Geogrid,Composite Fiberglass Geogrid & Polyester geogrid with Spunbond nonwoven geotextile or Needlepunched Nonwoven geotextile by glue,Fiberglass Geogrid & Polyester Geogrid knitted Spunbond Nonwoven geotextile or Needlepunched Nonwoven geotextile impregnated by bitumen,Combigrid (PP Biaxial Geogrid with Nonwoven Geotextile by welding),Nonwoven Geotextile,HDPE Geocell,PP Woven Geotextile,Mining Geogrid etc .
We have always adhered to the philosophy of prioritizing quality, strict management, high-quality service, following customer requirements, consistently exploring and advancing, serving customers well, in order to seek long-term cooperation
Any further demands for our materials if you have,you can contact with our Marketing Manger Mr Allen.
Allen
Manager
Our Certificates
FAQ
Q1:What is your delivery time?
A1:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q2:Where is your company?
A2:Feicheng shandong province, China and if you want to coming,please call me ,I will arrange your schedule.
Q3:Are you trading company or manufacturer?
A3:We are manufacturer and we have BV certification. So we have a lower price than trading company.
Q4:What is your delivery method?
A4:T/T, Western Union, L/C,PAYPAL...
Q5:Do you provid samples?Is it free or extra?
A5:Yes, we can offer the sample for free charge but do not pay the cost of freigh.
Q6:What is your terms of payment?
A6:Payment<=1000USD,100% in advance.Payment>=1000USD, 30%T/T in advance, balance before shippment. If you have another question, please to contact me.
