Basic Info.
Model NO.
VEG
Nominal Thickness
0.4mm -1.5mm
Nominal Weight
450g - 1250g
Filament Diameter
9um
Width
0.8m - 2m or Custom
Service Temperature
800ºC
Color
Golden
Sample
Available
Properties
High-Temp Resistance, Withstand Direct Flame
Processing Service
Cutting Punching
Application 2
Filter Cloth, The Hot Side of Insulation Blankets
Application 3
Fire Blankets, Welding Blankets, Heat Shields
Application 4
Radiant Heat Shields, High Temperature Lagging
Application 5
Proscenium Curtains, High Temperature Gloves
Properties1
Non-Combustible, Improved Abrasion Resistance
Properties2
Heat Travels Across The Fabric Not Through It
Transport Package
Bag+Carton+Pallet or Plywood Box
Specification
custom
Origin
Jiangsu, China
HS Code
7019699090
Production Capacity
20, 000m/Day
Product Description
Vermiculite Coated Fiberglass Cloth/Fabric is produced by asbestos-free, high quality filament/texturized or steel wire-inserted fiberglass fabric and then coated with vermiculite on both sides.
Vermiculite is a naturally occurring micaceous hydrated magnesium-aluminum-silicate product. It is asbestos free and 100% inorganic. There are microscopic disc-shaped platelets within the vermiculite film which stack and overlap. Within the fabric's fiber bundles, these platelets are embedded. Coating the surface then, these platelets form an insulating film which acts as an effective heat and flame barrier.Vermiculite is a natural flaky mineral (similar to mica) that expands like popcorn when heated. Vermiculite is used in insulation, fire retardants, cement aggregate, fertilizer, and potting soil.The proprietary vermiculite coating increases the operating temperature resistance of the fiberglass fabric to 815°C(1500°F ) and peak temperature resistance to 1095°C (2000°F). This high-temperature coating also improves abrasion resistance and adds to its ability to withstand direct flame, it also provide a dust suppression coating which allows for a safer work environment.
The Vermiculite Insulation Fabric finish insulates the glass and while the material will become brittle, the Vermiculite Insulation Fiberglass Cloth will not melt or shrink at temperatures up to 1800°F as it is a high temp insulation material. It will continue to perform as an effective heat and flame barrier. Even under direct flame, these Vermiculite fabrics are odorless and virtually smokeless.
Properties:
- Strong and durable, abrasion resistance
- odorless and virtually smokeless
- good chemical and fire resistant
- High Dimensional Stability
- Easy to cut, fabricate and work with
- Reduced irritation and less chance of catching
- Welding/fire blankets and curtains
- Fire Doors and Curtains.
- Pump, Flange and Valve Covers
- High Temperature Pipe Lagging
- Steam Pipe Insulation
- Inner layer for Insulation jackets, mattress, and pad
- Bellows and Ductwork Connectors
- Fabric expansion joints
- High-temperature gaskets and seals
- For Protective Barriers and Heat Shields
Vermiculite Coated Texturized Fiberglass Fabric / Cloth
| Item No. | Yarn Count | Thickness | Weight | Weave Pattern | |
| mm | gsm | osy | |||
| VET070 | 8×6 | 0.7 | 600 | 17.7 | plain |
| VET080-1 | 8×6 | 0.8 | 650 | 19.2 | plain |
| VET075 | 6×5 | 0.75 | 670 | 19.8 | plain |
| VET080-2 | 6×4 | 0.8 | 840 | 24.8 | plain |
| VET100-1 | 12×9 | 1 | 970 | 28.6 | twill |
| VET100-2 | 6×4 | 1 | 1030 | 30.4 | plain |
| VET120 | 5×3 | 1.2 | 1050 | 31.0 | plain |
| VET150 | 6×4 | 1.5 | 1240 | 36.6 | plain |
| VET200 | 12×5 | 2 | 1550 | 45.7 | panama |
| VET250 | 12×5 | 2.5 | 1850 | 54.6 | panama |
| VET300 | 12×5 | 3 | 2360 | 69.6 | panama |

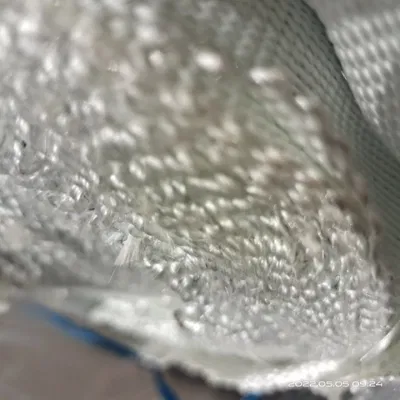

Vermiculite Coated Stainless Steel Wire Reinforced Texturized Fiberglass Fabric / Cloth
| Item No. | Wire Type | Thickness | Weight | Weave Pattern | Yarn Type | |
| mm | gsm | osy | ||||
| VEGF045-1 | 304 | 0.45 | 470 | 13.9 | Twill | Filament |
| VEGF050-1 | 304 | 0.5 | 500 | 14.7 | Twill | Filament |
| VEGF050-2 | 304 | 0.5 | 520 | 15.3 | Plain | Filament |
| VEGF045-2 | 316L | 0.45 | 660 | 19.5 | Satin | Filament |
| VEGF065 | 316 | 0.65 | 670 | 19.8 | Satin | Filament |
| VEGF070 | 304 | 0.7 | 720 | 21.2 | Satin | Filament |
| VEGF080 | 316L | 0.8 | 980 | 28.9 | Satin | Filament |
| VEGF100 | 316 | 1 | 1130 | 33.3 | Plain | Filament |
| VEGT075 | 316 | 0.75 | 630 | 18.6 | Plain | Textured |
| VEGT080 | 304 | 0.8 | 840 | 24.8 | Plain | Textured |
| VEGT120-1 | 304 | 1.2 | 950 | 28 | Plain | Textured |
| VEGT120-2 | 316 | 1.2 | 1230 | 36.3 | Plain | Textured |
| VEGT150-1 | 304 | 1.5 | 1050 | 31 | Panama | Textured |
| VEGT150-2 | 304 | 1.5 | 1240 | 36.6 | Panama | Textured |
Vermiculite Coated Silica Glass Cloth / Fabric, 70% Silica Content Type Also Available
| Item No. | Thickness | Nominal Weight | Weave Pattern | Standard Width(cm) | Fabric Yarn | Temperature Rating | ||
| mm | gsm | osy | fabric | coating | ||||
| VES0700202 | 0.7 | 630 | 18.6 | 8HS Satin | 92/100/127 | 96% silica | 1000ºC | 800ºC |
| VES1000202 | 1 | 910 | 26.8 | 12HS Satin | 92/100 | 96% silica | 1000ºC | 800ºC |
| VES1250302 | 1.3 | 1150 | 33.9 | 12HS Satin | 92/100 | 96% silica | 1000ºC | 800ºC |
| VES2000502 | 2 | 1500 | 44.2 | Panama | 92/100 | 96% silica | 1000ºC | 800ºC |
| VES3000702 | 3 | 1830 | 54.0 | Twill | 92/100 | 96% silica | 1000ºC | 800ºC |
Silicone coated filament fiberglass cloth / fabric
| Ref No. | Basic Fabric Style No. | Coating Material | Coating Side | Finished Thickness(mm) | Finished Weight | |
| SRE0180801 | E-Glass 7628 | Liquid/Wet Silicone Rubber | 1 | 0.2 | 280gsm | 8.26osy |
| SRE0181202 | Liquid/Wet Silicone Rubber | 2 | 0.25 | 320gsm | 9.44osy | |
| SRE0350801 | E-Glass 2523 | Liquid/Wet Silicone Rubber | 1 | 0.35 | 480gsm | 14.15osy |
| SRE0351502 | Liquid/Wet Silicone Rubber | 2 | 0.4 | 550gsm | 16.22osy | |
| SSE0350502 | Solid/Dry Silicone Rubber | 2 | 0.35 | 450gsm | 13.27osy | |
| SSE0351302 | Solid/Dry Silicone Rubber | 2 | 0.4 | 530gsm | 15.63osy | |
| SRE090400801 | E-Glass 3732-1 | Liquid/Wet Silicone Rubber | 1 | 0.4 | 510gsm | 15.04osy |
| SRE090401502 | Liquid/Wet Silicone Rubber | 2 | 0.45 | 580gsm | 17.11osy | |
| SSE090400502 | Solid/Dry Silicone Rubber | 2 | 0.43 | 480gsm | 14.16osy | |
| SSE090401302 | Solid/Dry Silicone Rubber | 2 | 0.45 | 560gsm | 16.52osy | |
| SRE110400801 | E-Glass 3732-2 | Liquid/Wet Silicone Rubber | 1 | 0.4 | 500gsm | 14.75osy |
| SRE110401302 | Liquid/Wet Silicone Rubber | 2 | 0.45 | 550gsm | 16.22osy | |
| SSE110400502 | Solid/Dry Silicone Rubber | 2 | 0.4 | 480gsm | 14.16osy | |
| SRE0601501 | E-Glass 666 | Liquid/Wet Silicone Rubber | 1 | 0.65 | 790gsm | 23.3osy |
| SRE0602602 | Liquid/Wet Silicone Rubber | 2 | 0.7 | 900gsm | 26.54osy | |
| SSE0602302 | Solid/Dry Silicone Rubber | 2 | 0.7 | 870gsm | 25.66osy | |
| SRE0801501 | E-Glass 3784 | Liquid/Wet Silicone Rubber | 1 | 0.8 | 990gsm | 29.2osy |
| SRE0802602 | Liquid/Wet Silicone Rubber | 2 | 0.9 | 1100gsm | 32.44osy | |
| SSE0802002 | Solid/Dry Silicone Rubber | 2 | 0.9 | 1040gsm | 30.67osy | |
| SRE1001801 | E-Glass 3786 | Liquid/Wet Silicone Rubber | 1 | 1 | 1480gsm | 43.65osy |
| SRE1003202 | Liquid/Wet Silicone Rubber | 2 | 1.1 | 1620gsm | 47.78osy | |
| SRE1002602 | Solid/Dry Silicone Rubber | 2 | 1.1 | 1560gsm | 46.01osy | |
| SRE1502201 | E-Glass 3788 | Liquid/Wet Silicone Rubber | 1 | 1.6 | 1820gsm | 53.68osy |
| SRE1503802 | Liquid/Wet Silicone Rubber | 2 | 1.7 | 1980gsm | 58.4osy | |
| SSE1503202 | Solid/Dry Silicone Rubber | 2 | 1.7 | 1920gsm | 56.63osy | |
Silicone coated silica fabric cloth (96% sio2)
| Item No. | Coating | Norminal Weight | Norminal Thickness | Weave Pattern | Standard Width(cm) | Fabric Yarn | Working Temperature(ºC) | ||
| gsm | osy | mm | fabric | coating | |||||
| SRS0301202 | 2 sides | 420 | 12.4 | 0.35 | Twill 3*1 | 92 | 96% silica | 1000 | 260-280 |
| SRS0302002 | 2 sides | 500 | 14.7 | 0.4 | Twill 3*1 | 92 | 96% silica | 1000 | 260-280 |
| SRS0701502 | 2 sides | 760 | 22.4 | 0.75 | Satin 8HS | 92/100/127 | 96% silica | 1000 | 260-280 |
| SRS0702002 | 2 sides | 810 | 23.9 | 0.75 | Satin 8HS | 92/100/127 | 96% silica | 1000 | 260-280 |
| SRS0702602 | 2 sides | 870 | 25.7 | 0.8 | Satin 8HS | 92/100/127 | 96% silica | 1000 | 260-280 |
| SRS0704002 | 2 sides | 1010 | 29.8 | 0.85 | Satin 8HS | 92/100/127 | 96% silica | 1000 | 260-280 |
| SRS1002002 | 2 sides | 1080 | 31.9 | 1.1 | Satin 12HS | 92/100 | 96% silica | 1000 | 260-280 |
| SRS1002602 | 2 sides | 1140 | 33.6 | 1.15 | Satin 12HS | 92/100 | 96% silica | 1000 | 260-280 |
| SRS1004002 | 2 sides | 1280 | 37.8 | 1.2 | Satin 12HS | 92/100 | 96% silica | 1000 | 260-280 |
| SRS1252002 | 2 sides | 1320 | 38.9 | 1.4 | Satin 12HS | 92/100 | 96% silica | 1000 | 260-280 |
| SRS1252602 | 2 sides | 1380 | 40.7 | 1.45 | Satin 12HS | 92/100 | 96% silica | 1000 | 260-280 |
| SRS1254002 | 2 sides | 1520 | 44.8 | 1.5 | Satin 12HS | 92/100 | 96% silica | 1000 | 260-280 |
| SRS1255002 | 2 sides | 1620 | 47.8 | 1.6 | Satin 12HS | 92/100 | 96% silica | 1000 | 260-280 |
| SRS1353002 | 2 sides | 1500 | 44.2 | 1.1 | Satin 12HS | 92/100 | 96% silica | 1000 | 260-280 |
| SRS1354002 | 2 sides | 1600 | 47.2 | 1.15 | Satin 12HS | 92/100 | 96% silica | 1000 | 260-280 |
| SRS1355002 | 2 sides | 1700 | 50.1 | 1.2 | Satin 12HS | 92/100 | 96% silica | 1000 | 260-280 |
Silicone rubber calendered fiberglass fabric
| Product Name | Silicone rubber calendered fiberglass fabric |
| Baisc fabric | Filament / Texturized fiberglass fabric, wire-inserted fiberglass fabric, silicone coated fiberglass fabric or custom |
| Surface treatment | Silicone calendered |
| Color | Multiple colors available |
| Thickness(mm) | 0.2 - 5mm or even thicker |
| Weight | 250 - 5000gsm or even heavier |
| Maximum width | 2m |
| Coating content | 40g - 3500g or custom |
| Service temperature | -70ºC - 260ºC |
| Length per roll | 30m, 50m or custom |
| Packing details | Bag+carton+pallet, plywood box or custom |
| Other information | Custom Service available |
PTFE / Teflon Coated / Impregnated Fiberglass / Glass Fiber Fabric Cloth
| Item No. | Thickness | Max width | Nominal Weigt | Tensile strength | Temperature res. | Color |
| TF008 | 0.08mm | 1250mm | 140gsm | 550/450N/5cm | -70-260C | Brown |
| TF008B | 0.08mm | 1250mm | 140gsm | 550/450N/5cm | -70-260ºC | Black |
| TF008W | 0.08mm | 1250mm | 140gsm | 550/450N/5cm | -70-260C | Cream |
| TF012 | 0.115mm | 1250mm | 220gsm | 1100/1000N/5cm | -70-2600 | Brown |
| TF012B | 0.115mm | 1250mm | 220gsm | 1100/1000N/5m | -70-260C | Black |
| TF013 | 0.125mm | 1250mm | 250gsm | 1100/1000N/5cm | -70-260C | Brown |
| TF013B | 0.125mm | 1250mm | 250gsm | 1100/1000N/5cm | -70-260 C | Black |
| TF015 | 0.145mm | 1250mm | 300gsm | 1200/1100N/5cm | -70-260C | Brown |
| TF018 | 0.18mm | 1250mm | 340gsm | 1800/1700N/5cm | -70-260C | Brown |
| TF025 | 0.23mm | 2600mm | 480gsm | 2100/1800N/5cm | -70-260C | Brown |
| TF025B | 0.23mm | 2600mm | 480gsm | 2100/1800N/5cm | -70-260C | Black |
| TF030 | 0.30mm | 3000mm | 600gsm | 2800/2400N/5cm | -70-2600 | brown |
| TF030B | 0.30mm | 3000mm | 600gsm | 2800/2400N/5cm | -70-260C | Black |
| TF035 | 0.33mm | 2600mm | 680gsm | 2600/2300N/5cm | -70-260C | Brown |
| TF035B | 0.33mm | 2600mm | 680gsm | 2600/2300N/5cm | -70-260C | Black |
| TF040 | 0.38mm | 3000mm | 800gsm | 3000/2500N/5cm | -70-260C | Brown |
| TF040B | 0.38mm | 3000mm | 800gsm | 3000/2500N/5cm | -70-260C | Black |
| TF055 | 0.55mm | 3000mm | 1080gsm | 4400/4000N/5cm | -70-260C | Cream |
| TF070 | 0.70mm | 3000mm | 1250gsm | 5000/4800N/5cm | -70-260C | Cream |
| TF095 | 0.95mm | 3000mm | 1550gsm | 6000/5000N/5cm | -70-260ºC | Cream |
| TF100 | 1.00mm | 3000mm | 1700gsm | 6000/5000N/5cm | -70-260C | Cream |
PTFE coated Fiberglass Fabric with backside adhesive(silicone)
| Item No. | Basic fabric thickness | Total thickness | Adhesion(to steel) | Tensile strength | Res.temperature |
| TF008AS | 0.08mm | 0.13mm | 23N/100mm | 900N/100mm | -70-260 C |
| TF012AS | 0.11mm | 0.16mm | 23N/100mm | 1100N/100mm | -70-260C |
| TF013AS | 0.125mm | 0.175mm | 23N/100mm | 1300N/100mm | -70-260C |
| TF018AS | 0.18mm | 0.225mm | 23N/100mm | 1950N/100mm | -70-260C |
| TF025AS | 0.25mm | 0.30mm | 23 N/100mm | 2250N/100mm | -70-260C |
Polyurethane (PU) Coated Filament Fiberglass Cloth / Fabric
| Item No. | Coating | Yarn Count | Norminal Thickness | Norminal Weight | Weave Pattern | ||
| warp | weft | ||||||
| cm | mm | gsm | osy | ||||
| PUE0200201 | 1 side | 17.3 | 12.2 | 0.2 | 230 | 6.8 | Plain |
| PUE0350301 | 1 side | 12 | 8 | 0.4 | 430 | 12.7 | Plain |
| PUE0400301 | 1 side | 18 | 13 | 0.45 | 460 | 13.6 | Twill |
| PUE0600401 | 1 side | 16.0 | 15 | 0.65 | 700 | 20.6 | 4H Satin |
| PUE0800601 | 1 side | 18 | 13 | 0.85 | 900 | 26.5 | 8H Satin |
| PUE0400402 | 2 sides | 17.3 | 12.2 | 0.2 | 250 | 7.4 | Plain |
| PUE0350502 | 2 sides | 12 | 8 | 0.4 | 450 | 13.3 | Plain |
| PUE0400502 | 2 sides | 18 | 13 | 0.5 | 480 | 14.2 | Twill |
| PUE0600702 | 2 sides | 16.0 | 15 | 0.8 | 730 | 21.5 | 4H Satin |
| PUE0801002 | 2 sides | 18 | 13 | 0.9 | 940 | 27.7 | 8H Satin |
Polyurethane (PU) Coated Satinless Steel Wire Reinforced Fiberglass Cloth / Fabric
| Item No. | Coating | Thickness | Weight | Weave Pattern | Wire Type |
| mm | gsm | ||||
| PUG045-1 | 1/2 sides | 0.45-0.5 | 480/500 | twill | 304 |
| PUG045-2 | 1/2 sides | 0.45-0.5 | 670/690 | satin | 316 |
| PUG050-1 | 1/2 sides | 0.5-0.55 | 510/530 | twill | 304 |
| PUG050-2 | 1/2 sides | 0.5-0.55 | 530/550 | plain | 304 |
| PUG065 | 1/2 sides | 0.65-0.7 | 680/700 | satin | 316 |
| PUG080 | 1/2 sides | 0.8-0.85 | 1000/1060 | satin | 316 |
| PUG100 | 1/2 sides | 1-1.1 | 1150/1220 | plain | 316 |
Polyurethane (PU) Coated Silica Cloth / Fabric
| Item No. | Coating | Thickness | Norminal Weight | Weave Pattern | Standard Width(cm) | |
| mm | gsm | osy | ||||
| PUS030 | 2 sides | 0.3 | 350 | 10.3 | Twill 3*1 | 92 |
| PUS070 | 2 sides | 0.7 | 690 | 20.4 | Satin 8HS | 92/100/130 |
| PUS100 | 2 sides | 1 | 960 | 28.3 | Satin 12HS | 100 |
| PUS125 | 2 sides | 1.3 | 1200 | 35.4 | Satin 12HS | 92/100 |
| PUS135 | 2 sides | 1.4 | 1300 | 38.3 | Satin 12HS | 92/100 |
Acrylic Coated Fiberglass Cloth / Fabric
| Item No. | Coating | Norminal Weight | Thickness | Weave Pattern | |
| gsm | osy | mm | |||
| ACE035 | 2 sides | 500 | 14.7 | 0.4 | Plain |
| ACE040 | 2 sides | 530 | 15.6 | 0.5 | Crowfoot |
| ACE060 | 2 sides | 810 | 23.9 | 0.7 | 8H Satin |
| ACE080 | 2 sides | 1040 | 30.7 | 0.9 | 8H Satin |
| ACE110 | 2 sides | 1550 | 45.7 | 1.2 | 12H satin |
| ACE160 | 2 sides | 1900 | 56.0 | 1.7 | 12H satin |
| ACT040 | 2 sides | 380 | 11.2 | 0.4 | Plain |
| ACT070 | 2 sides | 780 | 23.0 | 0.8 | Plain |
| ACT080 | 2 sides | 1020 | 30.1 | 0.9 | Panama |
| ACT100 | 2 sides | 1200 | 35.4 | 1.1 | 2/2 twill |
| ACT150 | 2 sides | 1500 | 44.2 | 1.6 | plain |
| ACT200 | 2 sides | 1850 | 54.6 | 2 | panama |
| ACT250 | 2 sides | 2200 | 64.9 | 2.5 | panama |
| ACT300 | 2 sides | 2800 | 82.6 | 3 | panama |
Aluminum Foil Laminated Fiberglass Cloth Fabric
| Product Name+ | Aluminum Foil Laminated Fiberglass Fabric |
| Baisc fabric | Filament / Texturized fiberglass fabric, wire-inserted fiberglass fabric, silica fabric or custom |
| Surface treatment | Aluminum Foil Laminated |
| Foil thickness (μm) | 7/14/18/25/38/50 or custom |
| Color | Silver |
| Thickness(mm) | 0.1 - 3mm or custom |
| Weight | 90 - 2000gsm or custom |
| Standard width | 100-152cm |
| Temp. resistance | 150ºC |
| Length per roll | 30m, 50m or custom |
| Packing details | Bag+carton+pallet, plywood box or custom |
| Other information | Custom Service available |
Graphite / Graphene coated fiberglass fabric cloth
| Product Name | Graphite / Graphene coated fiberglass fabric |
| Baisc fabric | Texturized fiberglass fabric, wire-inserted fiberglass fabric or custom |
| Surface treatment | Graphite / Graphene coated |
| Color | Black / Ash black or custom |
| Thickness(mm) | 0.7 - 3mm or custom |
| Weight | 600 - 2200gsm or custom |
| Maximum width | 2m |
| Temp. resistance | 700ºC / 800ºC |
| Length per roll | 30m, 50m or custom |
| Packing details | Bag+carton+pallet, plywood box or custom |
| Other information | Custom Service available |
Calcium silicate coated fiberglass fabric cloth
| Product Name | Calcium silicate coated fiberglass fabric |
| Baisc fabric | Texturized fiberglass fabric, wire-inserted fiberglass fabric or custom |
| Surface treatment | Calcium silicate coated |
| Color | Ash black or custom |
| Thickness(mm) | 0.7 - 3mm or custom |
| Weight | 600 - 2200gsm or custom |
| Maximum width | 2m |
| Temp. resistance | 700ºC |
| Length per roll | 30m, 50m or custom |
| Packing details | Bag+carton+pallet, plywood box or custom |
| Other information | Custom Service available |
