Magnetic/Excavator Needle/Yanmar Main/Car Water Pump/Split/Plastic Thrust Bearings/Hub Bearing for Wuling/Motorcycle Parts/Bearing Housing/Plastic Pulley 32313

Magnetic Excavator Needle Yanmar Main Water Pump Split Plastic Thrust Bearings Hub Bearing for Wuling. Factory direct motorcycle parts and bearing housing. Plastic Pulley 32313." We are a factory specializing in the production of various motor vehicle parts such as plastic pulleys, bearings, and water pumps. All products are manufactured with high-quality materials.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
32313
Spherical
Non-Aligning Bearings
Load Direction
Axial Bearing
Separated
Separated
Outer Dimension
35-400mm
Transport Package
Carton Pallet
Specification
65*140*51mm
Trademark
RTB
Origin
China
HS Code
8482200000
Production Capacity
100000 Pieces/Year

Product Description

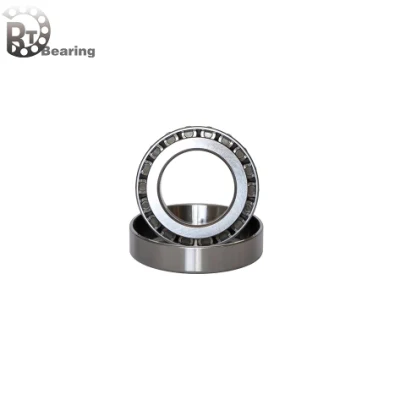

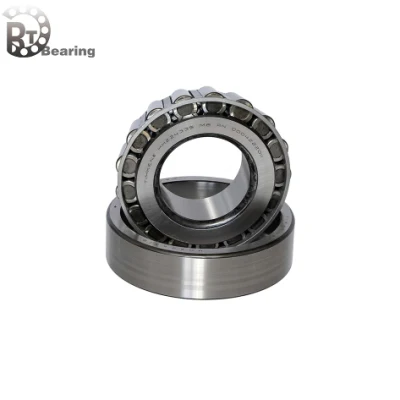

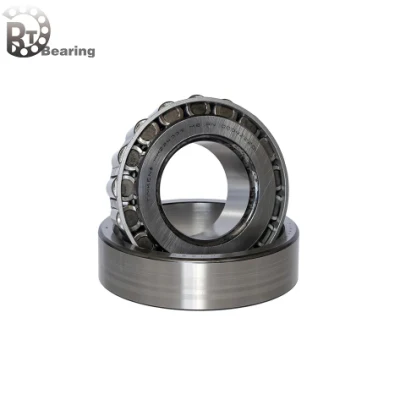

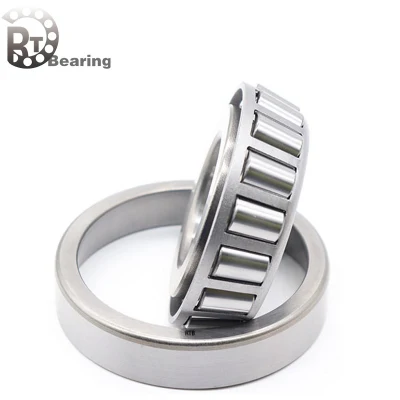

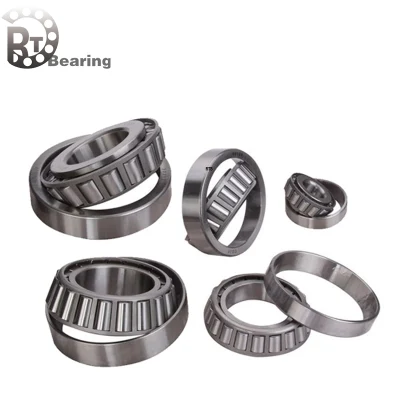

Magnetic/Excavator Needle/Yanmar Main/Car Water Pump/Split/Plastic Thrust Bearings/Hub Bearing for Wuling/Motorcycle Parts/Bearing Housing/Plastic Pulley 32313 These bearings are capable of taking high radial loads and axial loads in one direction. In the HR series, the rollers are increased in both size and number giving it an even higher load capacity. They are generally mounted in pairs in a manner similar to single-row angular contact ball bearings. In this case, the proper internal clearance can be obtained by adjusting the axial distance between the cones or cups of the two opposed bearings.
Model Size Rated dynamic load (KN) Rated static load (KN) Weight                (kg)
(mm)
d D T
32007 35 62 18 43.2 59.2 0.224
32008 40 68 19 51.9 71.1 0.268
32009 45 75 20 58.4 81.4 0.339
32010 50 80 20 61.1 89 0.367
32011 55 90 23 80.2 117.2 0.564
32012 60 95 23 81.7 122.2 0.597
32013 65 100 23 82.8 127.3 0.628
32014 70 110 25 104.3 160.1 0.838
32015 75 115 25 103.1 160.2 0.875
32016 80 125 29 141 220 1.27
32017 85 130 29 139.8 220.3 1.33
32018 90 140 32 171.3 271 1.77
32019 95 145 32 174.6 281.3 1.796
32020 100 150 32 173.1 281.7 1.91
32021 105 160 35 205. 4 335.8 2.4
32022 110 170 38 245.7 403.4 3.02
32024 120 180 38 242.1 404.4 3.18
32026 130 200 45 333.7 567.1 4.94
32028 140 210 45 329.8  567.8 5.15
32030 150 225 48 367.6 635.8 6.25
32032 160 240 51 419.6 734.5 7.66
32207 35 72 24.25 70.6 89.5 0.426
32208 40 80 24.75 77.9 97.2 0.529
32209 45 85 24.75 80.7 104 0.587
32210 50 90 24.75 82.8 107.6 0.654
32211 55 100 26.75 108 142.3 0.881
32212 60 110 29.75 132.8 179.6 1.17
32213 65 120 32.75 160.9 221.7 1.58
32214 70 125 33.25 168.5 237.1 1.66
32215 75 130 33.25 170.3 242.1 1.76
32216 80 140 35.25 198.1 279 2.19
32217 85 150 38.5 226.7 324 2.7
32218 90 160 42.5 269.8 395.5 3.61
32219 95 170 45.5 302.5 448.4 4.34
32220 100 180 49 341 512 5.31
32221 105 190 53 342 517 6.37
32222 110 200 56 388 590 7.45
32224 120 215 61.5 420 610 9.04
32226 130 230 67.75 551.7 888.7 11.377
32228 140 250 71.75 643.7 1049.3 14.413
32307 35 80 32.75 99 118.3 0.766
32308 40 90 35.25 115.7 147.8 1
32309 45 100 38.25 145.3 189.4 1.41
32310 50 110 42.25 177.5 236.1 1.9
32311 55 120 45.5 203.1 271.4 2.33
32312 60 130 48.5 226.7 303 2.96
32313 65 140 51 259.6 349.8 3.53
32314 70 150 54 298.9 408.5 4.41
32315 75 160 58 347.4 483.1 5.27
32316 80 170 61.5 387.9 543.1 6.43
32317 85 180 63.5 421.8 592.8 7.31
32318 90 190 67.5 478.2 693.3 8.81
32319 95 200 71.5 516.1 737.7 10.1
32320 100 215 77.5 600.1 872.2 13
30207 35 72 18.25 54.2 63.5 0.333
30208 40 80 19.75 63 74 0.431
30209 45 85 20.75 67.9 83.6 0.474
30210 50 90 21.75 73.3 92.1 0.529
30211 55 100 22.75 90.8 113.7 0.713
30212 60 110 23.75 103.3 130 0.923
30213 65 120 24.75 120.6 152.6 1.58
30214 70 125 26.25 132.3 173.6 1.29
30215 75 130 27.25 138.4 185.4 1.4
30216 80 140 28.25 160.4 212.8 1.56
30217 85 150 30.5 177.6 236.8 2.06
30218 90 160 32.5 200.1 269.6 2.54
30219 95 170 34.5 226.6 309 3.04
30220 100 180 37 253.9 350.3 3.72
30221 105 190 39 285.3 398.6 4.38
30222 110 200 41 314.9 443.6 5.21
30224 120 215 43.5 337.4 483.3 6.2
30226 130 230 43.75 366 521.4 6.94
30228 140 250 45.75 409.2 584.7 8.73
30230 150 270 49 451.2 645.9 10.8
30306 30 72 20.75 59.6 60.1 0.389
30307 35 80 22.75 75.3 82.6 0.515
30308 40 90 25.25 80.5 90.2 0.761
30309 45 100 27.25 113 128 0.984
30310 50 110 29.25 145.3 189 1.26
30311 55 120 31.5 153.5 187.6 1.65
30312 60 130 33.5 171.4 210 1.96
30313 65 140 36 193 227 2.42
30314 70 150 38 219 271.7 3.04
30315 75 160 40 252.8 318.8 3.71
30316 80 170 42.5 278.8 352.5 4.27
30317 85 180 44.5 304.9 388.2 4.96
30318 90 190 46.5 342.1 440.9 5.8
30319 95 200 49.5 369 477.7 6.8
30320 100 215 51.5 406.4 526.4 8.22
33008 40 68 22 60.2 79.6 0.306
33009 45 75 24 72.6 100.4 0.398
33010 50 80 24 76.8 110.9 0.433
33011 55 90 27 94.9 144.7 0.651
33012 60 95 27 96.7 151.1 0.691
33013 65 100 27 98.1 157.7 0.732
33014 70 110 31 134.4 220.4 1.07
33015 75 115 31 133.1 221.2 1.12
33016 80 125 36 181.9 304.3 1.63
33017 85 130 36 180.4 305.5 1.69
33018 90 140 39 232.6 388.6 2.2
33019 95 145 39 231 389.9 2.26
33020 100 150 39 229.5 391.2 2.33
33021 105 160 43 257.4 437.4 2.97
33022 110 170 47 288.7 502.7 3.74
33024 120 180 48 298.2 535.1 4.07
33026 130 200 55 400.6 727.4 6.14
33028 140 210 56 407 755.5 6.57
33030 150 225 59 461.2 873.8 7.98
33108 40 75 26 84.7 110.3 0.496
33109 45 80 26 87.1 117.2 0.535
33110 50 85 26 89.3 124.1 0.572
33111 55 95 30 114.5 164.8 0.483
33112 60 100 30 117.1 173.2 0.895
33113 65 110 34 142.8 220.4 1.3
33114 70 120 37 172.1 267 1.7
33115 75 125 37 176.1 279.6 1.78
33116 80 130 37 179.6 292.3 1.87
33117 85 140 41 215.7 354.2 2.43
33118 90 150 45 252.1 414.7 3.13
33119 95 160 49 298.9 498.2 3.94
33120 100 165 52 309.4 529.2 4.31
33121 105 175 56 351.8 607.8 5.29
33122 110 180 56 373.2 639.1 5.5
33124 120 200 62 448.2 779.1 7.68
33207 35 72 28 82.6 101.7 0.515
33208 40 80 32 105.8 135.5 0.715
33209 45 85 32 109.5 145.1 0.771
33210 50 90 32 112.9 154.6 0.825
33211 55 100 35 35 196.7 1.15
33212 60 110 38 38 231.4 1.51
33213 65 120 41 41 281.6 1.99
33214 70 125 41 41 298.3 2.1
33215 75 130 41 41 299.7 2.17
33216 80 140 46 46 361.8 2.83
33217 85 150 49 49 415.7 3.52
33218 90 160 55 55 499.7 4.55
33219 95 170 58 58 568.4 5.48
33220 100 180 63 63 666.2 6.71
33221 105 190 68 68 770.5 8.12
32909 45 68 15 32 48.4 0.18
32910 50 72 15 36.9 56.1 0.181
32911 55 80 17 41.5 66.7 0.262
32912 60 85 17 46.1 73.1 0.279
32913 65 90 17 45.4 73.2 0.295
32914 70 100 20 70.8 114.7 0.471
32915 75 105 20 78.2 124.7 0.49
32916 80 110 20 79.3 129 0.514
32917 85 120 23 96.9 164.1 0.767
32918 90 125 23 95.8 164.5 0.798
32919 95 130 23 97.1 169.8 0.931
32920 100 140 25 126.6 218.4 1.12
32921 105 145 25 128 255.6 1.16
32922 110 150 25 129.7 232.6 1.2
32924 120 165 29 171.9 317.3 1.78
32926 130 180 32 206 380.6 2.34
32928 140 190 32 207.2 392.4 2.47
32930 150 210 38 261 510.4 3.87
32932 160 220 38 262.8 525.4 4.07
32934 170 230 38 280.1 561.5 4.33
Magnetic/Excavator Needle/Yanmar Main/Car Water Pump/Split/Plastic Thrust Bearings/Hub Bearing for Wuling/Motorcycle Parts/Bearing Housing/Plastic Pulley 32313 Magnetic/Excavator Needle/Yanmar Main/Car Water Pump/Split/Plastic Thrust Bearings/Hub Bearing for Wuling/Motorcycle Parts/Bearing Housing/Plastic Pulley 32313 Magnetic/Excavator Needle/Yanmar Main/Car Water Pump/Split/Plastic Thrust Bearings/Hub Bearing for Wuling/Motorcycle Parts/Bearing Housing/Plastic Pulley 32313 Magnetic/Excavator Needle/Yanmar Main/Car Water Pump/Split/Plastic Thrust Bearings/Hub Bearing for Wuling/Motorcycle Parts/Bearing Housing/Plastic Pulley 32313 Magnetic/Excavator Needle/Yanmar Main/Car Water Pump/Split/Plastic Thrust Bearings/Hub Bearing for Wuling/Motorcycle Parts/Bearing Housing/Plastic Pulley 32313 TIANJIN REET BEARING.CO.,LTD is a professional bearing manufacturer and exporter.
We have a wealth of technical.All producing processes are finished in our manufactory. As an ISO9001:2000 certified manufacturer,we will solve various problems in application and use of our bearings.
Our company is an authorized distributor of FAG, INA, TIMKEN and other world brand bearings.Our company has the right to self-export bearings and launches its own brand RTB.
Our bearing had been exported to more than twenty countries worldwide and are warmly welcomed.
We're looking forward to your order.
Magnetic/Excavator Needle/Yanmar Main/Car Water Pump/Split/Plastic Thrust Bearings/Hub Bearing for Wuling/Motorcycle Parts/Bearing Housing/Plastic Pulley 32313Magnetic/Excavator Needle/Yanmar Main/Car Water Pump/Split/Plastic Thrust Bearings/Hub Bearing for Wuling/Motorcycle Parts/Bearing Housing/Plastic Pulley 32313FAQ

1.Is the company a production factory or a trading company?
TIANJIN REET BEARING CO.,LTD is a manufacturing enterprise focusing on bearings and integrating research, production and sales.

2.How many the MOQ of your company?
Depending on the size of the bearing, the MOQ is variable, if you are interested, you can contact me for a quote.

3.Does the company accept OEM or customized bearings?
In addition to standard products, we also supply non-standard and modified standard products for special application. Meanwhile, we provide OEM service.

4.Can the company provide free samples?
We can provide samples for free. You only need to provide shipping.

5.What are the company's delivery terms?
We can accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient cost effective for you.
