Basic Info.
Model NO.
E-DB600
Product Name
Made in China E Glass Fiberglass Fabric
Feature
High Temperature Resistance
Weight
300-1200GSM
Material
Fiberglass Yarn
Weave
Plain or Twill
Package
Customized
Roll Length
100-500m/Roll
Service
Free Sample
Compatible
Polyester Resin,Vinyl Ester Resin,Epoxy Resin
Transport Package
Carton and Pallet
Specification
1m or 1.27m or customized
Trademark
Jiahe
Origin
China
HS Code
70195900
Production Capacity
1000000 Squre Meter/Year
Product Description
Details

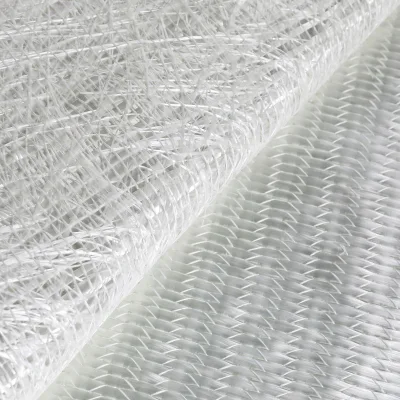

The general direction of this fabrics are 0°/+45°/-45° /90°,also the directions can be randomly changed from±20°--±90°, attaching (50-500)g/m2 CSM or Nonwoven fabric on the bottom.The total weight is 600-2000g/m2, the width is from 5-100 inches.
Features:
1. Excellent compatibility with EP
2. Without white yarn after consolidation
3. Outstanding compatible with mould
4. Excellent tensile strength
Specifications
| Code | Total weight | Orientation | Weave | Width |
| E-L1200U | (1200±5%) g/m2 | 0° | Unidirectional | ≤2680mm |
| E-T800U | (800±7%) g/m2 | 90° | Unidirectional | ≤2680mm |
| E-LT600 | (600±7%)g/m2 | 0/90° | Biaxial | ≤2680mm |
| E-LT800 | (800±7%)g/m2 | 0/90° | Biaxial | ≤2680mm |
| E-LT1200 | (1200±5%)g/m2 | 0/90° | Biaxial | ≤2680mm |
| E-DB400 | (400±7%)g/m2 | ±45° | Double biax | ≤2540mm |
| E-DB600 | (600±7%)g/m2 | ±45° | Double biax | ≤2540mm |
| E-DB800 | (800±7%)g/m2 | ±45° | Double biax | ≤2540mm |
| E-LDB600 | (600±7%)g/m2 | 0/±45° | Trialxial | ≤2540mm |
| E-LDB800 | (800±7%)g/m2 | 0/±45° | Trialxial | ≤2540mm |
| E-DTB800 | (800±7%)g/m2 | 90/±45° | Trialxial | ≤2540mm |
| E-LDTB800 | (800±7%)g/m2 | 0/90/±45° | Quadraxial | ≤2540mm |
| E-LDTB1200 | (1200±5%)g/m2 | 0/90/±45° | Quadraxial | ≤2540mm |
More other application:
1.Used for welding/cutting protection,Molten metal splash protection.
2.Heat and flame shielding, stress relief, insulation.
3.Hoses, seals, pads, and emergency fire blankets.
The total assets of the company is 100 million yuan, with more than 200 employees, including 10 engineers and 18 professional technicians. The main products are: 3D hollow glass fiber fabric, alkali free and waxless glass fiber cloth (plain, twill, satin), checkerboard cloth, prepreg cloth, glass fiber tape, electronic cloth, alkali free and waxless glass fiber yarn, PTFE products, high temperature wire, warp knitted products, glass fiber composite felt, chopped felt, aluminum foil composite cloth, FRP polymer coil floor and other products. It is mainly used in electronic appliances, sports equipment, medical equipment, aerospace, model products, automobile industry, ship and yacht, chemical industry, cement, environmental protection, construction and other fields; the products are exported to more than 20 countries, and the company has won praise from the industry and customers with first-class product quality, warm and thoughtful service.
