Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry

Introducing our Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry. We are a factory specializing in high-quality spray drying solutions for various industries. Contact us today!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Application
  • Product Parameters
  • Our Advantages
Overview

Basic Info.

Model NO.
LPG-2
Material Status
Solution
Atomization
Rotary Atomization
Flow
No
Heat Source
Electricity
Type
Centrifugal Spray
Weight
120kg
Max Capacity
1500-2000ml/H
Material
Stainless Steel
MOQ
1 Set
Transport Package
Wooden Case
Specification
650*500*1450 (mm)
Trademark
WKS
Origin
Henan
Production Capacity
100

Packaging & Delivery

Package Size
750.00cm * 600.00cm * 1570.00cm
Package Gross Weight
150.000kg

Product Description

Product Description



Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry
Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry
Application
The spray dryer has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts,Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood and many others.
Features
High-quality borosilicate heat-resistant glass used for the spray,drying,collection system, ensure drying process carried out in a pollution-free environment.
Stainless steel nozzle with two-fluid spray structure , high efficiency, good atomization effect.
LCD touch screen parameter display.
Real-time regulation PID constant temperature control technology.
Equipped with air inlet filter to keep the sample purity.
Feed volume adjusted by theperistaltic pump, the minimum sample volume can reach 30ml.
Finished dry powder has uniform particle size, >95% dry powder in the same particle size range.
Equipped with nozzle cleaner (through needle), automatically cleared when the nozzle is blocked.

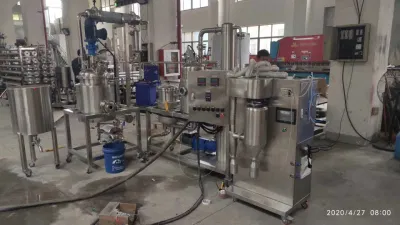

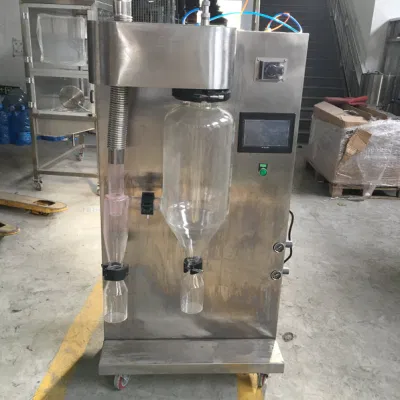

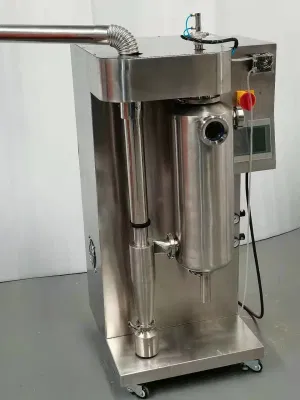

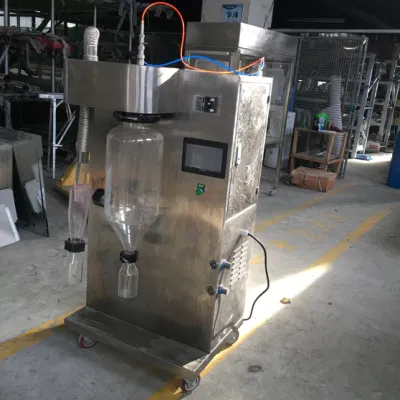

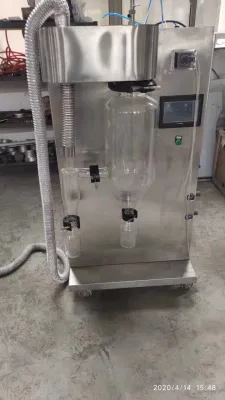

Detailed Photos
Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry
Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry

Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry
Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry

Application



Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry
Product Parameters
Model LPG-2
Max capacity 1500-2000ml/h
Temperature range of Inlet air 30ºC -280ºC
Temperature range of outlet air 40ºC -120ºC
Precision of temperature ± 1 ºC
Dryer time 1.0-1.5 S
Speed of squirmy pump 30-2000ml/h,
Consume of dryer air  0-330m3 /h,
Max pressure                           686Pa
Consume of spray air                              0-4.2m3 /h
Spray pressure: 2-5bar 2-5bar
Spray system 2 liquid nozzles with standard 0.7mm
Jet options of 0.5/1.0/1.5/2.0/2.5mm
Spray direction downwards co-current
Power 3.5KW
Voltage 220/240V-50/60HZ-13amps
Dimensions 650*500*1450 ( mm )
Weight 120kg
OTHER MODEL
Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry
Model: LPG-5
Maximum evaporated moisture:5kg/h
Model: LPG-10
Maximum evaporated moisture:10kg/h
Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry

Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry
Model: LPG-20
Maximum evaporated moisture:20kg/h

Model: LPG-25
Maximum evaporated moisture:25kg/h
Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry
Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry
Model: LPG-100
Maximum evaporated moisture:100kg/h



Our Advantages



Laboratory Mini Herbal Extract Powder Spray Dryer for Ceramic, Instant Tea, Protein Isolate Plant, Pea Protein Slurry
