12K 400g Biaxial +/-45 Degree Carbon Fibre/Fabric Cloth for Automobile Parts

Get high-quality 12K 400g Biaxial +/-45 Degree Carbon Fibre Fabric at our factory for automobile parts. Durable and reliable materials for your needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Technical Data Sheet
  • Packaging & Shipping
  • Applications
Overview

Basic Info.

Model NO.
CBX400-1270
Thickness
0.48mm
Stitch Patten
Chain
Fiber Spec.
12K
Transport Package
Carton and Pallet
Specification
Width: 1270mm, Thickness: 0.48mm
Trademark
utek
Origin
China
HS Code
681512
Production Capacity
100ton/Month

Product Description

Product Description

Multiaxial fabrics are non-crimp, multi-axis and multi-layered reinforcements. Layer count, orientation, weight and fiber content of the layers vary based on product line and application. The layers are stitched via polyester yarn. Fabrics can be produced using multiple axis(0°/90°/+45°/-45°)or combined with chopped mat and multiple layers of veil and/or non-woven materials.
The typical application of such products is Wind Energy, Marine/Ship Building, Recreation/Leisure Products, Automotive, Aerospace & Defense etc.


Features:
1.Knitted fabric is of good integrity
2.High layering efficiency
3.Fabric has good adhesion

Detailed Photos

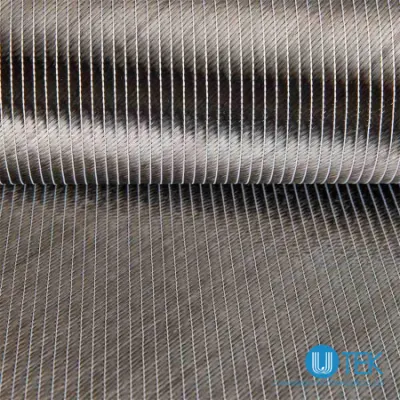

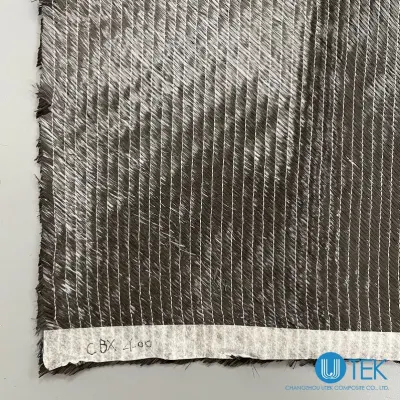

12K 400g Biaxial +/-45 Degree Carbon Fibre/Fabric Cloth for Automobile Parts
12K 400g Biaxial +/-45 Degree Carbon Fibre/Fabric Cloth for Automobile Parts



Technical Data Sheet
Specification Laying angle Fiber Spec. Each layer weight(GSM) Total weight(GSM) Stitch Pattern Standard Width(mm) Thickness(mm)
C-L150-12 12K-800Tex 150 158 Warp-Tricot 1270 0.16
C-L300-12 12K-800Tex 300 308 Warp-Tricot 1270 0.33
C-L600-50 50K-3300Tex 600 618 Tricot 1270 0.70
C-PN150-12 +45°/-45° 12K-800Tex 75 152 Chain 1270 0.16
C-PN200-12 +45°/-45° 12K-800Tex 100 202 Tricot 1270 0.21
C-NP400-12 +45°/-45° 12K-800Tex 200 402 Chain 1270 0.42
C-PN600-24 +45°/-45° 24K-1600Tex 300 603 Chain 1270 0.64
C-LT400-12 0°/90° 12K-800Tex 200 402 Warp-Tricot 1270 0.48
C-LT600-12 0°/90° 12K-800Tex 300 603 Warp-Tricot 1270 0.69
C-LPN300-12 0°/+45°/-45° 12K-800Tex 100 302 Warp-Tricot 1270 0.35
C-LPN600-12 0°/+45°/-45° 12K-800Tex 200 603 Warp-Tricot 1270 0.69
C-LPTN400-12 0°/+45°/90°/-45° 12K-800Tex 100 402 Warp-Tricot 1270 0.46
C-LPTN600-12 0°/+45°/90°/-45° 12K-800Tex 150 603 Warp-Tricot 1270 0.69

Packaging & Shipping

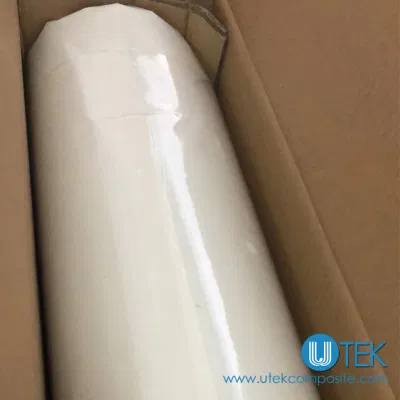

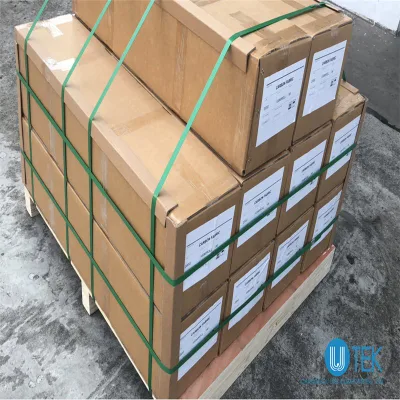

12K 400g Biaxial +/-45 Degree Carbon Fibre/Fabric Cloth for Automobile Parts
12K 400g Biaxial +/-45 Degree Carbon Fibre/Fabric Cloth for Automobile Parts




Applications

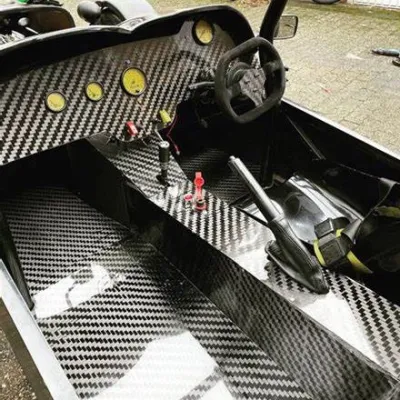

12K 400g Biaxial +/-45 Degree Carbon Fibre/Fabric Cloth for Automobile Parts
12K 400g Biaxial +/-45 Degree Carbon Fibre/Fabric Cloth for Automobile Parts
