Product Description

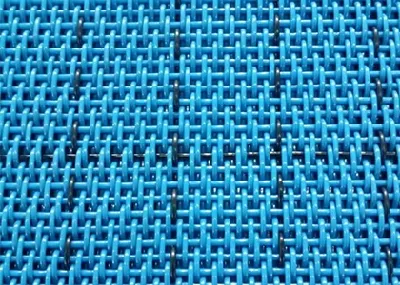

We all know that the equipment using polyester fabric will produce high friction electrostatic when it runs at a high speed. To dissipate this static electricity, conductive threads, normally bronze or stainless steel wires are woven through the polyester fabric. And this new fabric is generally called as anti-static filter fabric.
Our range of anti-static filter fabric is widely used in various aspects including pulping drying, chemical fiber industry, high density board, sludge dehydration, conveyor belt, environmental protection, vacuum filtration, rubber and chemical industry, etc.
2.We use the anti-hydrolysis monofilament of Zhejiang Quzhou Baste Mesh Co., Ltd., which has a good reputation in China.
3.The conductive wire of the radial wire is selected from the British Shakespeare monofilament, and the conductive wire of the weft wire is selected from the Korean Sakeland conductive wire.
2. Different sizes: different sizes for different users, it is easy to suit all kinds of uses.
3.Strict quality control system: strict ICQ test and production process without wire breakage phenomenon.
4.Net curtain surface is clean and smooth, product forming perfect, pulp easy to peel off.
| Type | Filament Diameter mm | Density Root /cm | Tensile Strength N/cm | Weight kg/m² | Thickness mm | Air permeability m³/m²h | CFM 127Pa | Conductive filam (material) | Electric conductivity Ω·cm | |||
| warp | weft | warp | weft | surface | Joint | |||||||
| S31505 | 0.4 | 0.5 | 33 | 9 | 1600 | 900 | 0.8 | 1.3 | 2976 | 186 | Copper wire | 5*10³ |
| S14804 | 0.65 | 0.8 | 14.8 | 7.2 | 2000 | 900 | 1.6 | 1.95 | 6800 | 430 | Copper wire | 5*10³ |
| S14804-1 | 0.65 | 0.8 | 14.8 | 7.2 | 2000 | 900 | 1.5 | 1.95 | 6800 | 430 | Carbon wire | 5*10³ |
| S4106-3 | 0.5 | 0.3 | 22.8 | 12.6 | 2200 | 900 | 1.5 | 1.8 | 8000 | 500 | Copper wire | 5*10³ |
| 0.7 | ||||||||||||
| S14708 | 0.64 | 0.7 | 15 | 8 | 2000 | 900 | 1.03 | 1.78 | 11200 | 700 | Carbon wire | 6*10³ |
| S12708 | 0.46*0.68 (Flat) | 0.7 | 14.1 | 7.3 | 2000 | 900 | 0.9 | 1.76 | 8000 | 500 | Carbon wire | 6*10³ |
SUN HONG tremendous strength and rich logistic operation experience are the guarantee to provide assured and satisfied service for you.
Who We Are
Founded in 2010, with 400 workers in-service, including the Special Product Development Team about 60workers . Focused in pulp and paper industry.Sun Hong has grown to become the trust-worthy supplier by consistently manufacturing high-quality products,providing considerate service and cost-effective pricing .We've been maintaining our commitment to serve you , your satisfaction is our pursuit.
Our Commitment
Maintaining close contact with paper plants from Southeast Asia,Central Europe and South America we have accumulated a wealth of experiences in paper making industry. We commit ourselves to providing the first class product and service for you! Whether it's a project or a bolt washer, each product has the particular ID under strict quality control procedures.
