High Speed Weaving Machine Economical and Easy-to-Useair Jet Loom Jlh740 Save Gas and Electricity

Get high speed and economical air jet looms with the JLH740 from our factory. Save on gas and electricity while increasing productivity. Order now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
Air Jet Loom 740
Customized
Customized
Condition
New
After-sales Service
1 Year
Transport Package
Machine with Bulk, Accessories with Carton
Specification
190cm-360cm
Trademark
JLH
Origin
Qingdao, China
HS Code
84463050
Production Capacity
300 Sets Per Month

Product Description

High Speed Weaving Machine Economical and Easy-to-Useair Jet Loom Jlh740 Save Gas and Electricity
   JINLIHUA 's textile machinery business will constantly explores the future of the textile industry by providing products with the high productivity and quality while also implementing active environmental policies including energy conservation and reduction of waste pollution, and providing detailed, attentive service.


Product Description

 Qingdao Jin Lihua Textile Machinery Co.

  "JLH740" is a high performance weaving air jet loom for new era.we provided Newly upgraded electric components and Integrated high technology to support weaving,  JLH740 combines Mechatronics with high technology, which realizes the stable weaving of high quality textile.

Product advantages:

1) It can operate without air compressor, and there is no need to make an air tunnel. This machine saves a lot of electricity.

2)Using non-sizing yarn to produce the fabric by this model machine.Saving the sizing cost also.

3)the production is much higher than shuttle loom and rapier loom.

4)Exclusive technical and professional team to ensure supply and quality.

5)Easy to operate,and low maintainess charge.



High Speed Weaving Machine Economical and Easy-to-Useair Jet Loom Jlh740 Save Gas and Electricity
  The " JLH740" upgrades the high-speed ability of the predecessors. JLH740 has the advantages of improved stability, long service life and increased accuracy. It is an advanced air jet loom that saves resources, energy, and manpower.

  The "JLH740" is a high performance weaving air jet loom for new era.we provided Newly upgraded electric components and Integrated high technology to support weaving, the JLH740 combines mechatronics with high technology, which realizes the stable weaving of high quality textile.
High Speed Weaving Machine Economical and Easy-to-Useair Jet Loom Jlh740 Save Gas and Electricity
 "JLH740" is an economical and easy-to-use product among similar gauze machines


  *We sincerely hope to establish good business relationship with customers home and abroad, to cooperate frankly on the basis of mutual benefit, reliable quality products and favorable prices.

Detailed Photos

Qingdao Jin Lihua Textile Machinery Co.

High Speed Weaving Machine Economical and Easy-to-Useair Jet Loom Jlh740 Save Gas and Electricity
Attend trade shows and promote products.

High Speed Weaving Machine Economical and Easy-to-Useair Jet Loom Jlh740 Save Gas and Electricity

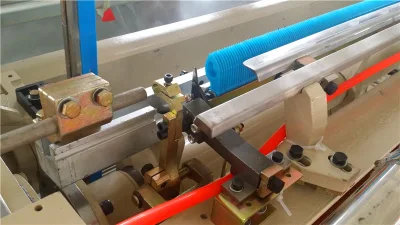

Wear-resistant, no rust, no static electricity, reduce warp yarn breakage.

High Speed Weaving Machine Economical and Easy-to-Useair Jet Loom Jlh740 Save Gas and Electricity
Strictly conducts ISO9001:2000 whole processing and quality control.

High Speed Weaving Machine Economical and Easy-to-Useair Jet Loom Jlh740 Save Gas and Electricity      New control system had an advanced technology, a high level of security, reliable quality, convenient operation, substantial increase in production efficiency. High Speed Weaving Machine Economical and Easy-to-Useair Jet Loom Jlh740 Save Gas and Electricity
Stable operation, durable accessories and low damage rate.

Product Parameters

Qingdao Jin Lihua Textile Machinery Co.

 Item

 Specification Remark


Reed width
Reed width(cm)


  110  150  170



Useful reed width
Reduce 0-60cm (110-170cm)



Fabric
Material & weave Gauze fabric

Power


Main power

  2.2kw


Speed Motor-belt pulley RPM  500

Weft insertion
Weft selection   Single color

Feeder

 Vibration model
  Without WBS
  1

Shedding
,
Shedding method
  Crank plain shedding

Heald frame   2   4
Brand Jinlihua China


Let off device
Mechanical type
Electronic type
   Single beam
Flange diameter Ø800     Ø914   Ø1000

Take up device

Take up    Mechanical take-up(MTU)
Max cloth roll diameter Ø600mm(crank)
Ø1200mm(jumb batching motion)

Weft density Take 40s cotton yarn for example
   4-10picks/inch
Beating
Roller beating system
   Four-bar beating -up motion (below 230cm)
Selvage      Leno gear selvage
edge    Tuck-in device  or  leno selvage
Cutter     Mechanical cutter
Lubrication    Manual oil supply
Stop motion Warp stop  Electric 2-row contact bar system
Control system Sanhe brand
Made-in-China



Accessory

   Heald wire    s.s 3000pcs
 Warp beam 1:1.5

 Cloth roller
1:1.5
 Reed  energy-saving type 1:1
 Dropper  close or  open 3000pcs
    *We are very willing to provide you with the technical information on the model together with the catalog and price list.

Packaging & Shipping

Qingdao Jin Lihua Textile Machinery Co.

High Speed Weaving Machine Economical and Easy-to-Useair Jet Loom Jlh740 Save Gas and Electricity
High Speed Weaving Machine Economical and Easy-to-Useair Jet Loom Jlh740 Save Gas and Electricity
High Speed Weaving Machine Economical and Easy-to-Useair Jet Loom Jlh740 Save Gas and Electricity
  *We sincerely hope to establish good business relationship with customers home and abroad, to cooperate frankly on the basis of mutual benefit, reliable quality products and favorable prices.

FAQ

(1) Q: Are you a manufacturer or agency?
A: We are a professional manufacturer holding our own International Trade Department, for that can better understand customer's needs and offer a reasonable price.

(2) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.

(3) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.

(4) Q: How about the quality?
A:The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.

(5) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.

(6) What about the delivery time?
A: General delivery time is 20 days or so for one container after we recieved your downpayment.If the order is less and we have stocks also,the delivery time is 10 days or so.If our factory is busy,then we will negotiate the time according to our production plan.
