Basic Info.
Model NO.
HKS3M
Knitting Product Type
Towel
Knitting Style
Warp
Knitting Method
Single
Needle Style
Compound Needle
Needle Bar Style
Warp Knitting Machine
Computerized
Computerized
Certification
CE
Condition
New
After-sales Service
1 Year
Machine Width
186";218"
Needle Bar Material
Carbon Fiber
Machine Weight
8000kgs
Application
Polyester Towel; Cotton Towel
Bar
3 Bar
Drive Pattern
Pattern Disk or EL
Transport Package
Wooeden Pallet
Specification
gauge 16; gauge 18; gauge 20; gauge 22
Trademark
A-ZEN
Origin
China
HS Code
844720
Production Capacity
30 Sets/Month
Product Description
High-Speed Good Quality Tricot Warp Knitting Machine HKS3M Description
The high-Speed good quality tricot warp knitting machine HKS3M is widely used for producing stretch and non-stretch fabrics. The popular width of this machine is 186";218" and 290".
Tricot machines equipped with three guide bars are flexible production machines. Equipped with carbon bars, the machine can run at high speeds around 1800-2300RPM
APPLICATION: To produce toys plush, super soft short plush, coat fabrics, decorative fabrics, sportswear, shoe fabrics, mesh fabric, etc.

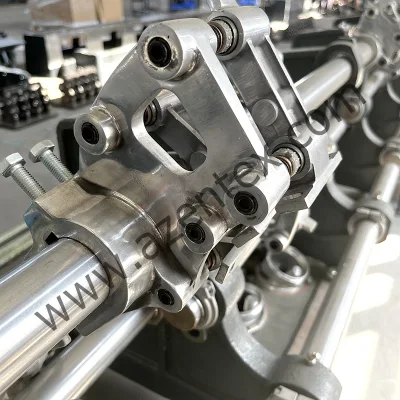

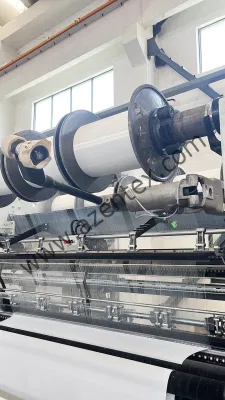

Tricot Warp Knitting Machine HKS3M Detailed Photos
| 1. Working Width/Gauge | 186", 218", 245", 290"/E28, E32, E36; |
| 2. Working Speed | 50-1900 rpm (Depends on Yarn and Designs); |
| 3. Bars/Knitting Elements | Individual Needle Bar with Compound Needles, Tongue Needles, 3 Guide Bars. All Bars and Beds are Made of Carbon-fiber-reinforced Material; |
| 4. Pattern Drive System | Pattern Discs Drive or EL Drive (Optional); |
| 5. Yarn Let-off Device | EBC Yarn Let-off System; |
| 6. Fabric Take-up | Electronic Fabric Take-up System; |
| 7. Batching Device | Electronical Batching Device; |
| 8. Laser Stop Detector and Online Service Program Equipped; | |
| 9. Air Blower Device | Equipped. |
Tricot Warp Knitting Machine HKS3M Knitting Fabrics Applications
In-house Sampling Production
In order to test our double needle bar raschel machines' performance, as well as to adjust machine specifications to fit customers' fabric quality, we provide in-house sampling production before the machine delivery.
We analyze fabric structure, make a design sketch, and make a record of the knitting process. Our customers could have the access to acknowledge our double needle bar raschel machine performance during real production, but also obtain the knitting production data which is helpful during their mass production.
We analyze fabric structure, make a design sketch, and make a record of the knitting process. Our customers could have the access to acknowledge our double needle bar raschel machine performance during real production, but also obtain the knitting production data which is helpful during their mass production.
Local Engineers Installation & Training
We build up serval overseas technical service teams in India, Turkey, Indonesia, Pakistan, Iran, and Egypt. Those well-trained engineers have rich skills and experience for the double needle bar raschel machines installation and production.
Our service includes Warping Machine installation, Double-needle Bar Raschel Machines installation, Tricot Machines installation, and Tricot Terry Warp Knitting Machines installation.
What's more, our overseas engineers could provide warp knitting basic knowledge and maintenance training for our double needle bar raschel machines.
Customers could contact A-ZEN China or A-ZEN overseas office to get this service.
Our service includes Warping Machine installation, Double-needle Bar Raschel Machines installation, Tricot Machines installation, and Tricot Terry Warp Knitting Machines installation.
What's more, our overseas engineers could provide warp knitting basic knowledge and maintenance training for our double needle bar raschel machines.
Customers could contact A-ZEN China or A-ZEN overseas office to get this service.
Online Support
All A-ZEN double needle bar raschel machines are equipped with an online service program, and thanks to this, a faster and more accurate service become available.
Online Support refers to running faults rectification and machine system checks and protection.
So far, we have many successful online support service stories in Turkey, India, Pakistan, and other places, and our customers enjoy a pleasant service that enables their double needle bar raschel machines to be productive.
Online Support refers to running faults rectification and machine system checks and protection.
So far, we have many successful online support service stories in Turkey, India, Pakistan, and other places, and our customers enjoy a pleasant service that enables their double needle bar raschel machines to be productive.
Routine Maintenance
We send notifications to our double needle bar raschel machine users regularly, especially after the machine works more than two years. Routine maintenance notification plays a vital role when the machine is under poor maintenance conditions.
We hope our routine maintenance service could largely avoid production loss because of the inefficient maintenance of the double needle bar raschel machines.
We hope our routine maintenance service could largely avoid production loss because of the inefficient maintenance of the double needle bar raschel machines.
