Basic Info.
Product Description

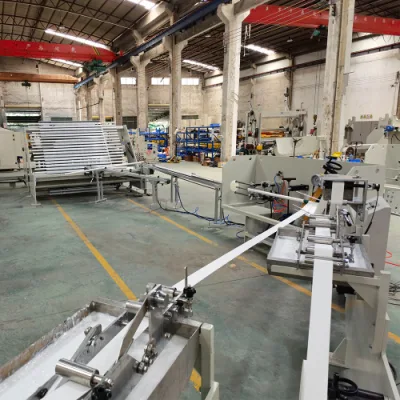

This kitchen towel production line is full automatic, no need to stop to winding or changing paper. It contains Backstand part , Winding machine,Perforate part,Edge embossing part, Glue sealer,Accumulator,Embossing and lamination device, Paper core machine and holder, Log saw cutter.
Machine design parameters
| No. | Item | Parameter |
| 1 | Equipment name | X2C-2900 Rewinding production line with core |
| 1.1 | Design speed | 250m/min |
| 1.2 | Working speed | 200m/min (According to the jumbo roll gram weight, quality) |
| 1.3 | Winding theory | Paper core tube glue winding |
| 1.4 | Max. width of jumbo roll | 2860mm |
| 1.5 | Backstand jumbo roll diameter | ≤¢1500mm |
| 1.6 | Max. diameter of winding | ¢150mm |
| 1.7 | Min. diameter of winding | ¢90mm |
| 1.8 | Adapt to jumbo roll | 14-30g/m^2 |
Winding machine
| No. | Item | Technical parameter |
| 1 | Roller surface width | 2900mm |
| 1.1 | Roll changing method | Continuous operation, no need to stop winding or changing paper |
| 1.2 | Paper break way | Paper break inside the machine |
| 2 | Diameter of finished product | ¢90-150mm Core roll diameter range ¢ 90-150mm |
| 2.1 | Finished paper roll density adjustment | Data control via touch screen |
| 2.2 | Rewinding diameter adjustment | Servo motor control |
| 2.3 | Rewinding length adjustment | Controlled by touch screen data, the accuracy of section number is ± 1 section |
| 2.4 | Finished paper core tube outer diameter | 35mm--50mm,(specifications are specified by the customer) |
| 2.5 | Drive | Independent motor |
| 3 | Embossing function | Installed on the winding main machine |
| 3.1 | Embossing way | Integral air bag compression method |
| 3.2 | Embossing wheel | Surface laser engraved pattern |
| 3.3 | Embossing wheel quantity | Determined by the size of the pattern |
| 3.4 | Drive | Independent motor |
| 4 | Spiral knife shaft structure | Four-piece perforator surface knife |
| 4.1 | Perforated line ratio | 4:1,8:1 |
| 4.2 | Perforation pitch error | ±1mm |
| 4.3 | Pitch | 95-250mm (touch screen adjustment) |
| 4.4 | Paper wrapping automatic induction protection system | With |
| 4.5 | Drive | Independent motor |
No. | Name | QTY | Unit | Remark |
| 1 | Backstand part | 2 | group | 1.51.5 m diameter jumbo roll |
| 2 | Rewinding main machine part | 1 | set | 280Includes 280 strip paper core tube storage units |
| 3 | Perforate part | 1 | set | |
| 4 | Edge embossing part | 1 | set | ,No embossing wheel, have embossed bottom roller |
| 5 | F25Glue sealer | 1 | set | |
| 6 | LS160-4L 4 line log saw machine | 1 | set | |
| 7 | A130Accumulator | 1 | set | |
| 8 | steel to rubber roll embossing | 1 | set | Optional item |
| 9 | embossing and lamination device | 1 | set | Optional item |
| 10 | C75paper core machine | 1 | set | |
| 11 | Paper core holder | 1 | set | |
| 12 | Common DC bus + motion control system | 1 | set |
Example of capacity calculation method (Have core roll paper)
Jumbo roll gram weight 16gsm, 2 layers, width 2850mm, efficiency factor 70%, production time 10h, production speed 2 0 0m / min
2 0 0 (m / min) X2.85 (m) X0.016X 2 X10 (hour) X60 (minute) X0.7 (efficiency) = 766 0kg = 7.6 tons
(Note: The above capacity calculations are for reference only)
Equipment performance inspection and acceptance:
| No. | Item | Inspection and acceptance requirements |
| 1 | Main machine speed | 200m/min(Depending on the quality of the jumbo roll) |
| 2 | Sealing speed | 12-13 strips/min. / (Depending on the roll paper diameter) |
| 3 | Log saw speed | 80-120 cut/min./(Depending on the specific product) |
| 4 | Finished diameter tolerance | +/-2mm |
| 5 | Perforation pitch tolerance | +/- 1mm |
| 6 | Ending length tolerance | +/-3mm |
| 7 | Cutting length tolerance | +/-2mm |
| 8 | The perpendicularity of the section and the axis | +/- 1mm |
| 9 | Paper core length tolerance | +/-2mm |
| 10 | The virtual tangent line is clear, uniform and beautiful. There are no holes caused by machine causes on the virtual tangent line, and no holes caused by machine cause on the non-virtual tangent line. | |
RECOMMENT PRODUCT: TOILET PAPER PRODUCTION LINE
#toilet paper production line #toilet paper making machine #toilet paper machine #toilet paper wrapping machine #toilet roll packing machine #roll wrapping machine
IMAKO is a company entirely focused on the manufacture and design of automated package equipment for household paper industry. We always aim at developing user-oriented innovative solutions for worldwide tissue paper manufacturer to solve their production needs and efficiency problem. To become a global advanced machine manufacturer , we also designed and developed full automatic toilet paper production line, tissue napkin production line, handkerchief production line, hand towel production line,with rewinder, folder, cutter, single packer, bundling packing machine, case packing machine and robot palletizer.we also provide packaging solutions for personal care products like baby diaper packaging machine, wet wipes packaging machine and sanitary pad packaging machine that are built to deliver easy operation, high productivity, quick size changeover and simple maintenance.
Our mission is to innovate our technology to meet the future market changes and challenges, continuously improve efficiency to help customers solve production problems. From design, production, solutions to services, we strive to provide you with satisfactory experience and to become your long-term partner. We will become a first-class brand of toilet paper machine manufacturer with first-class system and outstanding talents.We remember that without the trust of our customers, we would not be here we are today.
IMAKO has been dedicated to household paper packaging machinery industry for years, and has accumulated much experience. Value-added service to our client is our sole goal, mutual benefit is our base for development, solution is our answer to project.
IMAKO power comes from three aspects:
A professional team with rich practical experience in serving customers in the household paper industry for many years!
Provide customers with continuous and stable technical support and assistance!
Always adhere to a strong, innovative and leading corporate culture!
Nothing is the best but can be better and better. Choose our products to give you the best experience!
| Paymentterm:T/T,L/C,30% down payment when placing your order, 70% balance payment before shipment. |
| Delivery: It depends on the machine models and your requirement on packing sizes.Usually within 30 days of Off Season , within 50 days of peak season upon receiving deposit |
After service: Seller would repair or replace the damaged parts free of charge caused by the machine poor design or manufacturing defects within this period.Guarantee period is not applicable for the consumables and once damaged, buyer can purchase the consumables from the seller at reasonable prices.
We would systematically train your engineers about the operation, maintenance and supervision and share the knowledge and experience regarding the machine operation and maintenance by fax or at each visit.
If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.
Besides buyer need paid for the technician USD50/person/day as salary when our Technician going to your country.
