Ceramic Fiber Cloth
| Dscription | FG Cloth | SS Cloth |
| Al2O3(%) | 45-46 | |
| SiO2(%) | 52-53 | |
| Al2O3+SiO2(%) | 98 | |
| Fe2O3(%) | 0.85 | |
| Fiber length(mm) | 75 | |
| Fiber diameter(mm) | 5.2 | |
| Density (Kg/M3) | 500-550 | 500-550 |
| Classification temperature (ºC) | 1260 | |
| Maximum Service Temperature (ºC) | 500-600 | 1000 |
| Water Content (%) | ≤1 | |
| Organic Content(%) | ≤18 | |
| Thickness(mm) | 1~6 mm | |
| Width(mm) | 1000 mm | |
| Reinforced Material | Fiberglass | Stainless Steel |
| FG:Fibrglass;SS:Stainless steel; | ||

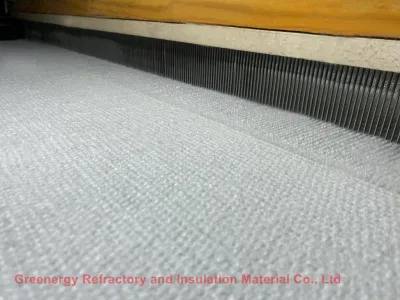

Ceramic Fiber Cloth is a cost-effective industrial cloth manufactured from ceramic fiber yarn, reinforced by a core of glass filament or stainless steel wire for high strength retention at elevated temperatures, ideal for most high temperature applications up to 1000°C.
Ceramic Fiber Cloth contains approximately 18% organic fiber which burns out at high temperatures, causing some smoking, but the cloth retains enough strength to be used as effective insulating cloth at high temperatures.
High temperature insulation
High temperature electronics insulation
Combustion pipes protection
Lining cloth for welding
Fireproof rolling curtain
Lining sleeves for industrial gas pipes
