Basic Info.
Model NO.
A-1
Material
Fiberglass
Fiber Type
Fiberglass
Type
Epoxy FRP
Keywords
Fiberglass Grating
Size
Customized
Packing
Customized
MOQ
10meters
Transport Package
Pallet Fiberglass Grating
Specification
20*20, 25*25, 30*30, 38*38, 50*50
Trademark
Solucent Fiberglass grating
Origin
Hebei, China
HS Code
39259000
Production Capacity
5 Million Square Meter/Year Fiberglass Grating
Product Description

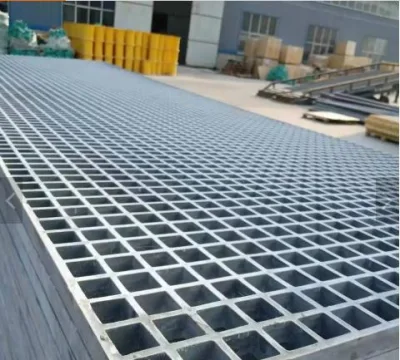

Fiberglass FRP Grating
Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and througly wetted out with resin, layer by layer. When the weaving process is completed, the mould is heated to cure the panel. After curing, the panel is ejected from the mould. The standard panel would have meniscus (concave) top surface.
Company Profile
Hebei Solucent Trade Co., Ltd. is located in Shangde International Building, Xinhua District, Shijiazhuang City, Hebei Province. It is a professional company specializing in the production, installation and after-sales service of series products in the two fields of 'wind' and 'water'. It is a modern technology-based enterprise integrating scientific research, design, production, testing, sales and service. The sales network spreads all over the world.
The products produced by our company mainly include: FRP grating, FRP cable pipe, ventilation duct, FRP pultruded profile, and FRP tank. In the development, the company has continuously improved its management system and management means, and takes the lead in passing the national certification in the same industry.
Our company drives the comprehensive work of the enterprise according to the market. We adhere to the quality-oriented development policy to ensure 'quality first and customer first'. We adhere to the development purpose based on science and technology, and develop new products constantly to meet the needs of the market. Over the years, our factory has been deeply trusted by new and old customers with excellent quality, reasonable price, timely supply and good service.
The enterprise concept of 'people-oriented and winning by quality' runs through the production process of the enterprise. 'All is market-oriented and all is customer-centered' is the business purpose of our company. Hebei Solucent Trade Co., Ltd. will continue to introduce new and superior products, innovate, seek truth, develop and contribute excellent products to the comfortable environment of human beings. Your choice, our win-win cooperation!
| Fiberglass Reinforced Plastic (FRP) Gratings | ||||||
| Type | Mesh Size (mm) | Height (mm) | Bar Thickness (mm) | Full Panel Size (m) | Net Weight (Kg/m²) | Load-bearing |
| 20 | 50*50 | 20 | The upper thickness is 7, and the lower thickness is 5 | 1.22*3.66 | 8 | trench cover |
| 25 | 43*43 | 25 | 1.22*3.66 | 11 | Stair treads/tree grates/load-bearing walking bicycles | |
| 40*40 | 25 | 1.22*3.66 | 11 | |||
| 38*38 | 25 | 1.22*3.66 | 12 | |||
| 30 | 40*40 | 30 | 1.22*3.66 | 16 | drainage ditch,span<30cm and bearing 1.5 ton,span<50cm and bearing 1 ton | |
| 38*38 | 30 | 1.22*3.66 | 17 | |||
| 38 | 40*40 | 38 | 1.22*3.66 | 20 | platform,span<30cm and bearing 3 ton | |
| 38*38 | 38 | 1.22*3.66 | 22 | |||
| 50 | 50*50 | 50 | 1.22*3.66 | 24 | gutter drainage ditch,span<30cm and bearing 4 ton | |
| 38*38 | 50 | 1.22*3.66 | 26 | |||
| 25 crossed grid | 50*25 | 25 | 1.22*3.66 | 13 | breeding,span<30cm and bearing 0.8 ton,span<50cm and bearing 0.3 ton | |
| 38*19 | 25 | 1.22*3.66 | 17 | |||
| 30 crossed grid | 50*25 | 30 | 1.22*3.66 | 18 | platform,span<30cm and bearing 1 ton,span<50cm and bearing 0.5 ton | |
| 38*19 | 30 | 1.22*3.66 | 20 | |||
Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and througly wetted out with resin, layer by layer. When the weaving process is completed, the mould is heated to cure the panel. After curing, the panel is ejected from the mould. The standard panel would have meniscus (concave) top surface.
Company Profile Hebei Solucent Trade Co., Ltd. is located in Shangde International Building, Xinhua District, Shijiazhuang City, Hebei Province. It is a professional company specializing in the production, installation and after-sales service of series products in the two fields of 'wind' and 'water'. It is a modern technology-based enterprise integrating scientific research, design, production, testing, sales and service. The sales network spreads all over the world.
The products produced by our company mainly include: FRP grating, FRP cable pipe, ventilation duct, FRP pultruded profile, and FRP tank. In the development, the company has continuously improved its management system and management means, and takes the lead in passing the national certification in the same industry.
Our company drives the comprehensive work of the enterprise according to the market. We adhere to the quality-oriented development policy to ensure 'quality first and customer first'. We adhere to the development purpose based on science and technology, and develop new products constantly to meet the needs of the market. Over the years, our factory has been deeply trusted by new and old customers with excellent quality, reasonable price, timely supply and good service.
The enterprise concept of 'people-oriented and winning by quality' runs through the production process of the enterprise. 'All is market-oriented and all is customer-centered' is the business purpose of our company. Hebei Solucent Trade Co., Ltd. will continue to introduce new and superior products, innovate, seek truth, develop and contribute excellent products to the comfortable environment of human beings. Your choice, our win-win cooperation!
