Basic Info.
Model NO.
TR06
GPRS
Class12 TCP IP
Highest
18000m
GPS Positioning Acuracy
5-10m
Voltage Range
9-90V DC
GPS Radio Frequency Chip
Mtk6261
Communication Frequency Band
850/900/1800/1900 MHz
GPRS Class
Class 12,TCP/IP
Tracking Sensitivity
-162dBm
Capture Sensitivity
-148dBm
Transport Package
Carton Box
Specification
65(L)*23(W)*13(H)mm
Trademark
GREAT-WILL
Origin
China
HS Code
8526919090
Production Capacity
20000PCS/Day
Product Description

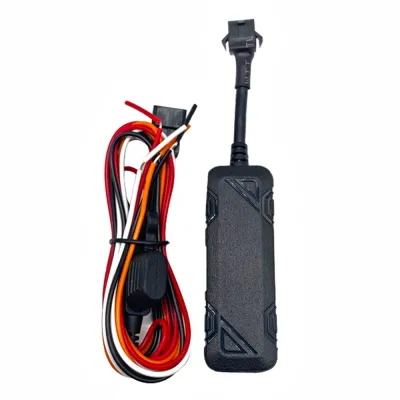

2G Web Platform Mobile APP Mini Tracker Fleet Management GPSTracking Device GSM GPS Chips For Tracking Car Location
Fleet management GPS tracking has revolutionized the way fleets are organized and managed. This advanced GPS tracking system provides real-time location data, enabling enterprises to monitor and optimize their fleet operations with unparalleled accuracy. By using the powerful functions of GPS technology, the Fleet management GPS tracking system provides a series of comprehensive functions, including real-time vehicle tracking, route planning and Geo-fence functions.
| Technical Specification | ||
| TR06 | Main Function | Ultra Wide Working Voltage(9-90V) |
| Low Power Consumption | ||
| Multiple Alarms (Over Speed/Vibration/Offline Alarm) | ||
| ACC/Lgnition Detection | ||
| Cut Off Oil Function | ||
| Electronic Geo-Fence | ||
| Super Mini Size | ||
| GSM Specification | GSM Radio Frequency Chip | MTK6261 |
| Communication Frequency Band | 850/900/1800/1900 MHZ | |
| GPRS Class | Class 12,TCP/IP | |
| CommumcationProt | TCP | |
| GPS Antena | Built In Design | |
| Maximum Frequency Error | ±0.1 PPM | |
| GPS Specification | GPS Chipset | AT6558R |
| Frequency | L1,1575.42MHz C/A Code | |
| Number of Chanhels | 64 | |
| Positioning Accuracy | 2.5 meters | |
| Tracking Sensitivity | -162dBm | |
| Capture Sensitivit | -148dBm | |
| Positioning Time | Avg.Hot start <2s Avg.Warm start <32s Avg.cold start <38s | |
| Working Parameters | Working Voltage/Current | 9-90V |
| Static Current | ~0.4mA(24V DC) | |
| Back Up Battery | 90 mAh | |
| Blind Zone Track Point Storage | Support | |
| Operating Temperature | -20ºC~75ºC | |
| Working Humidity | 20% ~ 80% RH | |
| Dimensions | 64.5x23x12.5mm | |
| Weight | 55g | |
| Waterproof and Dustproof Grade | Water Splashing Protection | |
With these tools, fleet managers can ensure efficient deployment of resources, reduce fuel consumption, and improve overall productivity. The system also implements proactive maintenance planning to ensure that vehicles are in optimal condition and minimize downtime. In addition, the Fleet management GPS tracking system enhances security by allowing the immediate identification and recovery of stolen vehicles. The data provided by GPS device locator helps with accurate reporting, analysis, and decision-making, thereby improving efficiency and saving costs.
FAQ
1. Why was there no response get from SMS command?
It may have several situations, please check them one by one.
a.Wrong password, use the right one
b.SIM card isn't installed properly.
c.Weak GSM network, try later.
d.Out of SIM credit or SMS, pop up.
e.SIM is damaged, change a sim card.
2. How to get a good GPS signal?
Connect GPS antenna well, let GPS antenna face up, install it near to window glass, and make sure not be covered by metal parts.
3. How can I get the location of the vehicle?
Once the tracker is activated, you can track location through phone SMS, App, PC web in real-time anywhere.
4. We fail to turn the devices on, why?
Please check if built-in battery is charged, and the power wires are connected well.
5. We want software with its own company name and logo? How much does it cost?
Quite good to make your own design. Feel free to contact us to discuss details.
6. Where your devices can be used?
Our Gps trackers can be used in motorcycles, cars, trucks, vans, buses, e-bikes, and all vehicles. Please contact us for good recommendations.
