Basic Info.
Model NO.
FLC1512
Structure Type
Gantry Type
Laser Classification
Gaseous Laser
Laser Technology
Laser Control Fault Cutting
Working Area
1500*1200mm
Laser Power
100W-500W
Working Table
Honeycomb or Knife Sheet
Cooling Way
Water
Controller
Advanced DSP
Delivery Time
in 10 Days
Transport Package
Plywood Crate
Specification
1512
Trademark
FLYING
Origin
China
HS Code
8456100090
Production Capacity
100PCS/Month
Product Description

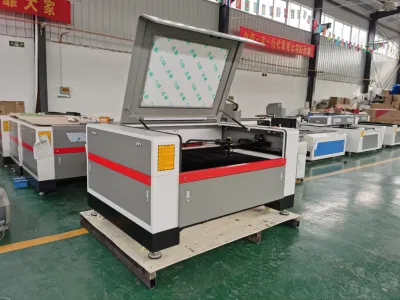

Co2 laser cutting machine for wood acrylic fabric FLC1512
This cnc laser cutting machine adopts the most advanced DSP control technology, it is the pioneer to faster continuously curing-out and shortcut processing pathway optimizing function, accordingly increase greatly the efficiency. It automatically equalize the diminishing of light during the whole operating to ensure the same cutting effect in different area. High-speed cutting control software and buffer function in high-speed movement can improve production efficiency. The new software provides the direct output of original pictures, completely fit the graph formats such as CAD, CAM of CAD, Coreldraw software, to meet the practical design requirements of the end users. The advanced colors and the turns of the cutting, can realize the one-time output completely or partially.
Specifications:
| Model | FLC1512 |
| Laser-type | 10.6um CO2 glass laser tube w/ water-cooling |
| Laser power | 100w-500w |
| Working area | 1500*1200mm |
| Max Engraving speed | 0-64, 000mm/min |
| Max cutting speed | 0-30, 000mm/min |
| Laser output control | 1-100% software setting |
| Location precision | Less than 0.01mm |
| Highest scanning precision | 2500DPI |
| Operating temperature | 0 - 45 |
| Operating humidity | 5- 95% non-condensing |
| Minimum shaping character | English 1.0 x 1.0mm |
| Graphic format supported | HPGL, JPEG, BMP, PLT, DST, DXF, and AI ... |
| Driving system | Stepper(Optional: Servo) |
| Cooling mode | Water-cooling and protection system |
| Auxiliary equipments | Exhaust-fans, air-exhaust pipe, air pump, chiller |
| Controller | DSP |
| Compatible Software | CorelDraw, AutoCAD, Photoshop, TAJIMA |
| Slope Engraving | Can be easily designed within the "Grade Engrave" function. |
| Color separation | Uses color property to set function, speed, and laser power |
Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.
Applicable Materials:
Double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...
Samples Display:
