Basic Info.
Model NO.
Unidirectional Fabrics
Transport Package
Brown Box and Pallets
Specification
50kg/CTN
Trademark
Tianma
Origin
China
HS Code
70193100
Production Capacity
50000 Tons/Year
Product Description

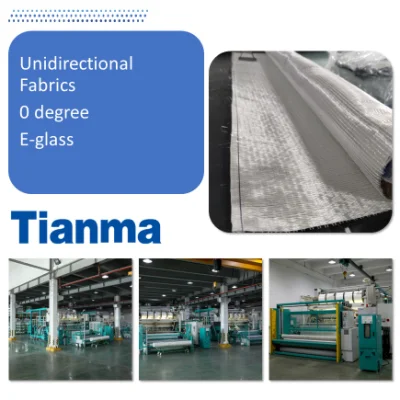

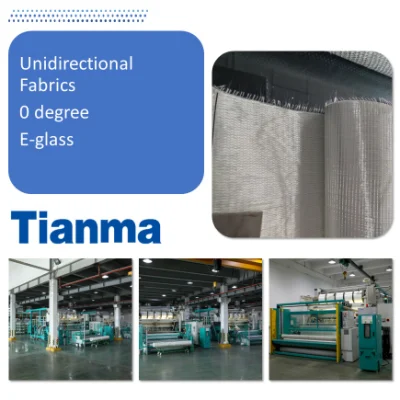

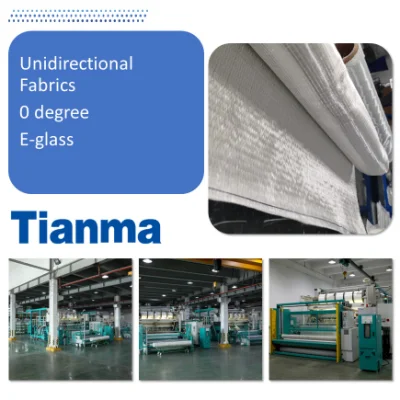

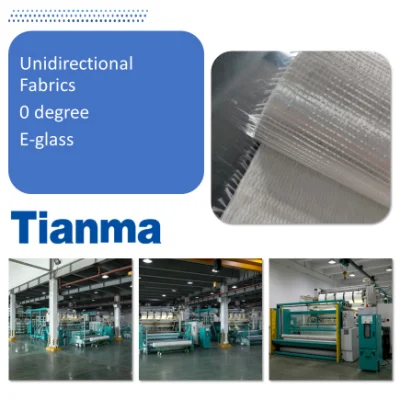

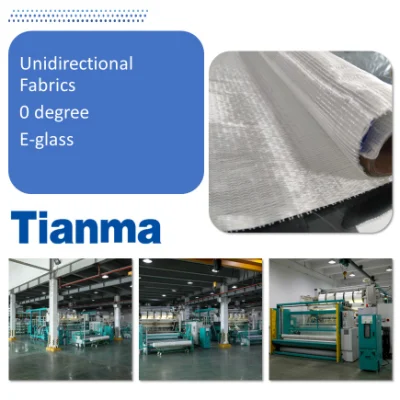

UNIDIRECTIONAL FABRICS It is a stitch-bonded composite reinforcement conbining continuous roving oriented in 0,90 directions into a single fabric.
Two layers of roving With or without a layer of chopped strands (0g/m²-300g/m²).
Technical Data:
| Product No. | Overall Density | 0°Roving Density | 90°Roving Density | Chop Density | Polyester Yarn Density |
| G/M2 | G/M2 | G/M2 | G/M2 | G/M2 | |
| EUW300 | 312 | 261 | 39 | / | 12 |
| EUW400 | 412 | 355 | 45 | / | 12 |
| EUW460 | 589.5 | 533 | 47 | / | 9.5 |
| EUW600A | 559 | 480 | 67 | / | 12 |
| EUW600 | 842 | 710 | 120 | / | 12 |
| EUW800 | 968 | 866 | 90 | / | 12 |
| EUW950 | 800 | 710 | 84 | / | 6 |
| EUW710/S300 | 1022 | 710 | / | 300 | 12 |
| EUW1200 | 1195 | 1134 | 55 | / | 6 |
| EF125 | 126 | / | 120 | / | 6 |
| EFC450 | 459.5 | / | 250 | 200 | 9.5 |
| EFC500 | 509.5 | / | 300 | 200 | 9.5 |
| EFC600 | 609.5 | / | 300 | 300 | 9.5 |
| EFC800 | 809.5 | / | 500 | 300 | 9.5 |
| EFC900 | 909.5 | / | 600 | CFM300 | 9.5 |
Package & Storage:
The fabrics should be stored away from heat and moisture, and in their original packaging. The best conditions are : temperatures between 15 and 35 , humidity between 35 and 65%. If the product is not stored under these specifications , it is advisable to condition it in the workshop for at least 24 hours before use, to prevent condensation. The pallets can be stored in 2 levels(1/1).Tianma recommends that the material be used according to FIFO(first in, first our)method. It is recommended the use of a spacer plae(10mm) between the pallets.
