Basic Info.
Model NO.
ELTNM600/180/600
Process
Close Mould or Lrtm
Suitable Process
Rtm or Influsion
Transport Package
Carton and Pallet
Specification
LT600/P180/M600
Trademark
utek
Origin
China
HS Code
70193100
Production Capacity
300ton/Month
Product Description

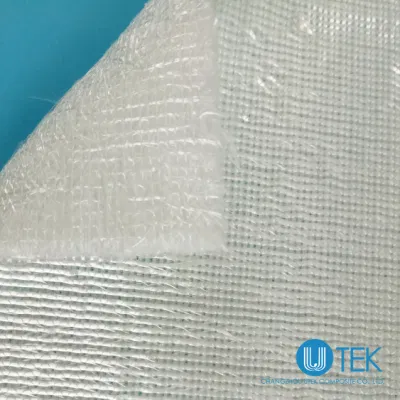

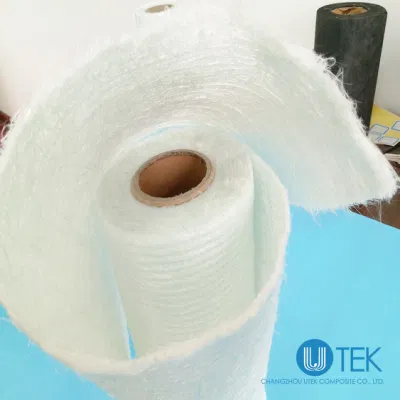

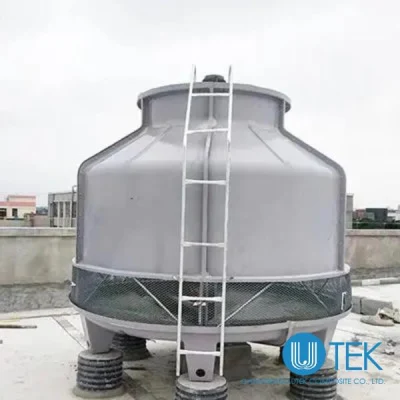

Fiberglass Sandwich Mat Fiberglass For Cooling Tower is a 1380g/m2(600/180/600) stitch bonded composite reinforcement fabric containing a PP layer inside the fabric, the fabric consists of 4 layers: Direct roving in 0 degree, 90 degree directions, a PP non-woven layer in the middle, and chopped strands on the outside of the PP layer.
Properties:
No binder, no warp and weft direction corssing, no ruffled.
No displacement deformation. Good resistance to erosion, fast wet out.
Fast resin transfer speed, good manufacturability, good workability.
Good physical and chemical properties, and easy design to solution.
| Id | Layer | Unit | 1 | 2 | 3 | 4 | Stitching |
| 2.1 | Fibre orientation | Degrees | 0±3 | 90±3 | Non-woven | Chopped strands | |
| 2.2 | Nominal area weight | g/m² | 300 ±5% | 300 ±5% | 180 ±5%(177) | 600 ±5%(602) | 10 |
| 2.3 | Roving/yarn weight | tex | 1200 ±60 (1230) | 1200 ±60 (1233) | - | 33 subtex (33.7) | 150 dtex (148) |
| 2.5 | Av. filament diameter | mm | 17(17) | 17(17) | - | 13(13) | Polyester(textured) |
| 2.6 | Roving type | - | Direct roving (Yes) | Direct roving (Yes) | - | Assem-bled roving (Yes) | |
| 2.7 | Resin compatibility | UP, VE | UP, VE | UP, VE |
