Basic Info.
Model NO.
Geogrid
Application
Retaining Wall, Road Base
Viscose
Without Viscose
Function
Anti-Slip, Reinforcement
Classification
Fiberglass Geogrid
Material
Fiberglass
After-Sales Service
Available
Mesh Size
25.4*25.4/12.5*12.5/50.8*50.8
Width<=
6
Transport Package
Plywooden/Wooden Package
Specification
50m
Trademark
INNOVAT
Origin
China
Product Description

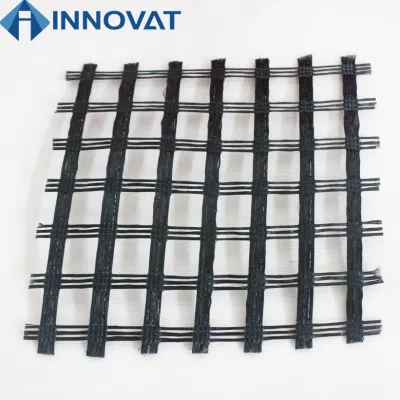

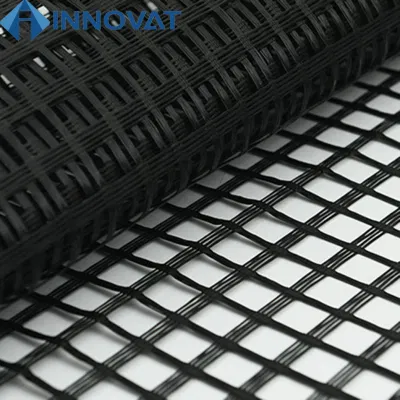

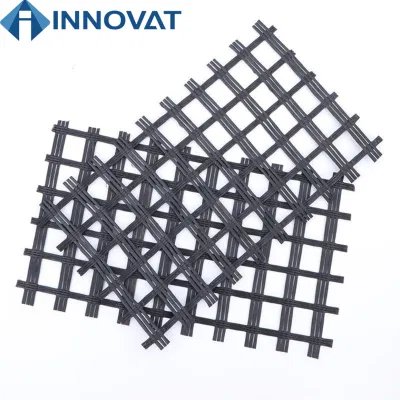

Fiberglass geogrid is the ideal geosynthetic material to reinforce the soft soil, cement, concrete, asphalt for the road surface or roadbed, etc. Fiberglass geogrid is made from excellent non-alkali fiberglass filament as the base material coated with adhesive by automatic woven technology. Fiberglass geogrid can can make full use of yarn textile strength and warp knitting directional structure to improve its high tensile strength, excellent tensile modulus, good wear resistance and creep resistance, and excellent thermal stability, etc. It can largely increase the bearing capacity of the ground and prolongs the service life of the road. Due to its high vertical and horizontal tensile strength, low unit extension and high flexibility, fiberglass geogrid is widely used to reinforce the embankment, asphalt pavement, road surface, prevent highway harm such as crack and rut from occurring, solve the problem that asphalt road surface is difficult to reinforce
| Product name | FIBERGALSS GEOGRID | |||||||||
| Item/spec | EGA30 | EGA50 | EGA80 | EGA100 | EGA120 | EGA150 | EGA200 | EGA300 | ||
| Mesh size mm | 25.4*25.4/12.5*12.5/50.8*50.8 | |||||||||
| Breakinig strength >= | Warp direction | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | |
| Across warp | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | ||
| Elongation at break <= | Warp direction | 4 | ||||||||
| Across warp | 4 | |||||||||
| Thernal tolerance | -100~280 | |||||||||
| Width<= | 6 | |||||||||
