Basic Info.
Model NO.
Woven Roving Combo mat
Transport Package
Brown Box and Pallets
Specification
40KG/CTN, 50KG/CTN
Trademark
TIANMA
Origin
China
HS Code
70193100
Production Capacity
10000 Tons/Year
Product Description

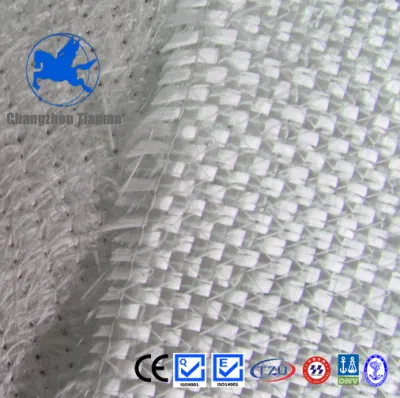

Product DescriptionFiberglass complex mat/Woven Roving comboMat is composed of woven roving and chopped strand, stitched by polyester yarn, it is widely used in pultrusion, RTM process and hand lay up.
The min width is 20cm, the max width is 260cm.
It widely produces FRP products like boat hull, truck bodies, pultrusion profile, bus roofing and so on.
Properties:
Multi-layer finished one time,decrease layer and enhance efficiency.
Providing the product with multi-directional mechanical strength.
Packing &Storage:
Each roll covering by polyethylene plastic bag,then placed into carton,and set on pallet.
Each pallet stack 9 or 16 cartons.The pallet shall no be higher than 2 layers.
Product shall be placed under dryness condition and shall no be open the covering membrane until applying.
Technical Data:
| Type | Area Weight(g/m2) | Woven Roving/Chopped Strand(g/m2) | Water Content(%) | Wet Speed(<=S) | Width(mm) |
| EMK400/300 | 700 | 400/300 | <=0.2 | 60 | 200-2600 |
| EMK500/300 | 800 | 500/300 | <=0.2 | 60 | 200-2600 |
| EMK500/450 | 950 | 500/450 | <=0.2 | 60 | 200-2600 |
| EMK600/300 | 900 | 600/300 | <=0.2 | 60 | 200-2600 |
| EMK600/450 | 1050 | 600/450 | <=0.2 | 60 | 200-2600 |
| EMK800/300 | 1100 | 800/300 | <=0.2 | 60 | 200-2600 |
| EMK800/450 | 1250 | 800/450 | <=0.2 | 60 | 200-2600 |
