Basic Info.
Origin
China
HS Code
68159920
Production Capacity
100000 M2
Product Description
Introduction:

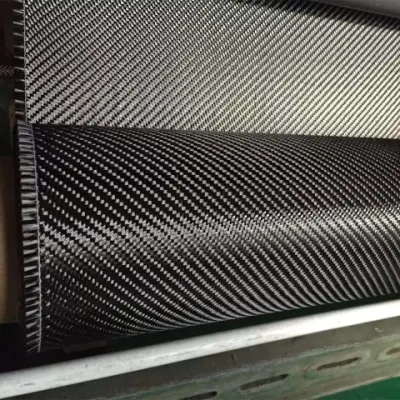

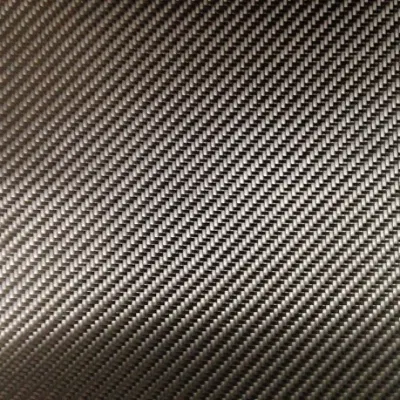

Woven carbon fabric is light weight, high strength and high modulus. It has good resistance to fatigue, heat and corrosion.
Typical Uses:
aviation, automobile, bicycle, surfboard, suite case, reinforcement to helmet, buildings…
Technical Parameters:
Other specifications are available upon request.





We also have unidirectional carbon fiber fabric for strengthening buildings/bridges.
Unidirectional carbon fiber fabric
Introduction:
Unidirectional woven carbon fiber fabric is produced by laying carbon fiber in warp direction and using hot melt yarn in weft direction to keep fabric stable.
Application:
Strengthening concrete structure, brickwork and bridges
Features:
Increase of loading capacity
Repair of defects
Flexibility of surface geometry (Beams, columns, chimneys, piles, walls)
Specifications:
Multiaxial Carbon Fiber Fabrics
Woven carbon fabric is light weight, high strength and high modulus. It has good resistance to fatigue, heat and corrosion.
Typical Uses:
aviation, automobile, bicycle, surfboard, suite case, reinforcement to helmet, buildings…
Technical Parameters:
Type | Yarn | Weave | Density(10mm) | Weight (g/m2) | Thickness (mm) | Width (cm) | ||
Warp | Weft | Warp | Weft | |||||
JZZ01P-100 | 1k | 1k | plain | 7.5 | 7.5 | 100 | 0.14 | 80-150 |
JZZ01T-100 | 1k | 1k | twill | 7.5 | 7.5 | 100 | 0.14 | 80-150 |
JZZ01P-120 | 1k | 1k | plain | 9 | 9 | 120 | 0.16 | 80-150 |
JZZ01T-120 | 1k | 1k | twill | 9 | 9 | 120 | 0.16 | 80-150 |
JZZ01P-140 | 1k | 1k | plain | 10.5 | 10.5 | 140 | 0.17 | 80-150 |
JZZ01T-140 | 1k | 1k | twill | 10.5 | 10.5 | 140 | 0.17 | 80-150 |
JZZ01E-140 | 1k | 1k | Satin | 12 | 12 | 160 | 0.18 | 80-150 |
JZZ03P-180 | 3k | 3k | plain | 4.5 | 4.5 | 180 | 0.28 | 80-150 |
JZZ03T-180 | 3k | 3k | twill | 4.5 | 4.5 | 180 | 0.28 | 80-150 |
JZZ03P-200 | 3k | 3k | plain | 5 | 5 | 200 | 0.3 | 80-150 |
JZZ03T-200 | 3k | 3k | twill | 5 | 5 | 200 | 0.3 | 80-150 |
JZZ03P-240 | 3k | 3k | plain | 6 | 6 | 240 | 0.32 | 80-150 |
JZZ03T-240 | 3k | 3k | twill | 6 | 6 | 240 | 0.32 | 80-150 |
JZZ03P-280 | 3k | 3k | plain | 7 | 7 | 280 | 0.34 | 80-150 |
JZZ03T-280 | 3k | 3k | twill | 7 | 7 | 280 | 0.34 | 80-150 |
JZZ03E-320 | 3k | 3k | Satin | 8 | 8 | 320 | 0.36 | 80-150 |
JZZ06P-280 | 6k | 6k | plain | 3.5 | 3.5 | 280 | 0.36 | 80-150 |
JZZ06T-280 | 6k | 6k | twill | 3.5 | 3.5 | 280 | 0.36 | 80-150 |
JZZ06P-320 | 6k | 6k | plain | 4 | 4 | 320 | 0.38 | 80-150 |
JZZ06T-320 | 6k | 6k | twill | 4 | 4 | 320 | 0.38 | 80-150 |
JZZ06P-400 | 6k | 6k | plain | 5 | 5 | 400 | 0.42 | 80-150 |
JZZ06T-400 | 6k | 6k | twill | 5 | 5 | 400 | 0.42 | 80-150 |
JZZ12P-400 | 12k | 12k | plain | 2.5 | 2.5 | 400 | 0.46 | 80-150 |
JZZ12T-400 | 12k | 12k | twill | 2.5 | 2.5 | 400 | 0.46 | 80-150 |
JZZ12P-480 | 12k | 12k | plain | 3 | 3 | 480 | 0.52 | 80-150 |
JZZ12T-480 | 12k | 12k | twill | 3 | 3 | 480 | 0.52 | 80-150 |
JZZ12P-640 | 12k | 12k | plain | 4 | 4 | 640 | 0.64 | 80-150 |
JZZ12T-640 | 12k | 12k | twill | 4 | 4 | 640 | 0.64 | 80-150 |





We also have unidirectional carbon fiber fabric for strengthening buildings/bridges.
Unidirectional carbon fiber fabric
Introduction:
Unidirectional woven carbon fiber fabric is produced by laying carbon fiber in warp direction and using hot melt yarn in weft direction to keep fabric stable.
Application:
Strengthening concrete structure, brickwork and bridges
Features:
Increase of loading capacity
Repair of defects
Flexibility of surface geometry (Beams, columns, chimneys, piles, walls)
Specifications:
Area Weight | 200 g/m2 | 300 g/m2 | 600 g/m2 |
Fabric Design Thickness | 0.111mm | 0.167mm | 0.333mm |
Tensile Strength | >= 3400 MPa | >= 3400 MPa | >= 3400 MPa |
Elastic Modulus | >= 240 GPa | >= 240 GPa | >= 240 GPa |
Break Elongation | >=1.7% | >=1.7% | >=1.7% |


Multiaxial Carbon Fiber Fabrics
Fabric Specification | Total Weight (g/m2) | 0° | 90° | +45° | -45° | Stitching Yarn (g/m2) | Binder(g/m2) |
C-PN600-12 | 602 | 300 | 300 | 2 | |||
C-PN600-50 | 602 | 300 | 300 | 2 | |||
C-LT400-12 | 402 | 200 | 200 | 2 | |||
C-LT600-50 | 602 | 300 | 300 | 2 | |||
C-TX500-12 | 502 | 200 | 150 | 150 | 2 | ||
C-QX600-12 | 602 | 150 | 150 | 150 | 150 | 2 | |
C-L150-12-B | 174 | 150 | 12 | 4 | 8 | ||
C-P150-12-B | 176 | 150 | 10 | 8 | 8 | ||
C-N150-12-B | 176 | 10 | 150 | 8 | 8 | ||
C-L300-50-B | 326 | 300 | 12 | 4 | 10 | ||
C-P300-12-B | 328 | 300 | 10 | 8 | 10 | ||
C-N300-12-B | 328 | 10 | 300 | 8 | 10 | ||
C-L600-50-B | 628 | 600 | 12 | 4 | 12 | ||
C-PN260-12 | 262 | 130 | 130 | 2 | |||
C-LT260-12 | 262 | 130 | 130 | 2 | |||
C-PN400-12 | 402 | 200 | 200 | 2 | |||
C-QX400-12 | 402 | 100 | 100 | 100 | 100 | 2 |
