- Overview
- Product Description
- Detailed Photos
Basic Info.
Model NO.
PTFE coated fiberglass fabric cloth
Trademark
Huatao
Origin
China
HS Code
7607200000
Production Capacity
5000 Sq. M. Per Week
Product Description

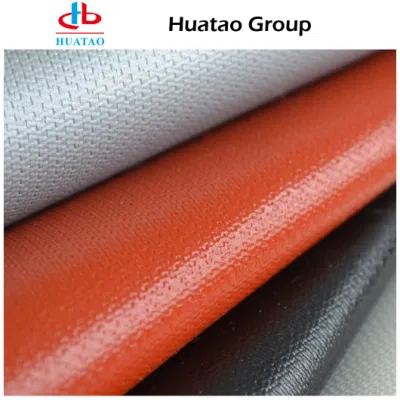

Both Side Silicone Coated Fiberglass Fabric Fireproof Cloth
As a special industry and protective fabric for special types of work, fireproof cloth is roughly divided into silicone rubber coated glass fiber cloth, basalt fiber fireproof cloth, acrylic cotton fiber fireproof cloth, Nomex fireproof cloth, SM fireproof cloth, blue fiberglass fireproof cloth, aluminum foil Fireproof cloth, etc.
Classification
1. Generally speaking, fire-proof cloth is flame-retardant cloth, which means that it is a fabric that is flame-retardant and prevents burning.
2. Only flame-retardant fabrics with high flame retardancy can be called fire-retardant fabrics, such as glass fiber fire-retardant fabrics and basalt fiber fire-retardant fabrics.
Silcone-coated fiberglass fabric
Glass fiber-coated silicone rubber cloth is made of fiberglass cloth and silicone.
It has good water resistance, fire resistance, chemical resistance, non-toxicity, and other characteristics.
Can be used continuously between -50ºC~+260ºC.
Application
Fire protection, high-temperature resistance, thermal insulation sleeves, mats, expansion joints, soft connections, fire doors, fire curtains, Welding blanket, and fire blankets.
Specification
Thickness: 0.2mm-5.0mm
Width: 1000mm-1800mm
Color: white, silver gray, red, black, etc.
Silicone fiberglass fabric has superior heat resistance (long-term 260C), cold resistance (long-term -40C), aging resistance, high strength, softness and cutability, and high insulation properties. It has been widely used in aerospace, chemical anti-corrosion, petroleum, large power generation equipment, mechanical seals, metallurgy, electrical insulation, flexible pipeline connections, construction, and other industrial fields.
Glass fiber-coated silicone rubber cloth is made of fiberglass cloth and silicone.
It has good water resistance, fire resistance, chemical resistance, non-toxicity, and other characteristics.
Can be used continuously between -50ºC~+260ºC.
Application
Fire protection, high-temperature resistance, thermal insulation sleeves, mats, expansion joints, soft connections, fire doors, fire curtains, Welding blanket, and fire blankets.
Specification
Thickness: 0.2mm-5.0mm
Width: 1000mm-1800mm
Color: white, silver gray, red, black, etc.
Silicone fiberglass fabric has superior heat resistance (long-term 260C), cold resistance (long-term -40C), aging resistance, high strength, softness and cutability, and high insulation properties. It has been widely used in aerospace, chemical anti-corrosion, petroleum, large power generation equipment, mechanical seals, metallurgy, electrical insulation, flexible pipeline connections, construction, and other industrial fields.
Acrylic-coated fiberglass fabric
Acrylic-coated fiberglass cloth is made of fiberglass cloth and acrylic.
It has excellent properties such as good weather resistance, high-temperature resistance, easy cutting, and scalability. It is also a green, non-toxic and environmentally friendly product.
Application:
·Fireproof welding blanket
·Fire-proof and smoke-proof curtain
· High-temperature field
Specification
Thickness: 0.2mm-2.0mm
Width: 1000mm-1800mm
Color: white, salmon, silver gray, black, etc.
Acrylic-coated fiberglass cloth is made of fiberglass cloth and acrylic.
It has excellent properties such as good weather resistance, high-temperature resistance, easy cutting, and scalability. It is also a green, non-toxic and environmentally friendly product.
Application:
·Fireproof welding blanket
·Fire-proof and smoke-proof curtain
· High-temperature field
Specification
Thickness: 0.2mm-2.0mm
Width: 1000mm-1800mm
Color: white, salmon, silver gray, black, etc.
Polyurethane(PU)coated fiberglass fabric
Fiberglass-coated polyurethane cloth is made of fiberglass cloth and PU.
It has the characteristics of good wear resistance, water resistance, cold resistance, aging resistance, good machining performance and so on. Long-term working temperature can reach 180ºC.
Application:
·Roof and underground engineering waterproofing
·Equipment protection in chemical plants and power plants
.Fireproof blanket, welding blanket
·Fire-proof and smoke-proof curtain
Specification
Thickness: 0.2mm-2.0mm
Width: 1000mm-1800mm
Color: white, silver gray, black, etc.
Fiberglass-coated polyurethane cloth is made of fiberglass cloth and PU.
It has the characteristics of good wear resistance, water resistance, cold resistance, aging resistance, good machining performance and so on. Long-term working temperature can reach 180ºC.
Application:
·Roof and underground engineering waterproofing
·Equipment protection in chemical plants and power plants
.Fireproof blanket, welding blanket
·Fire-proof and smoke-proof curtain
Specification
Thickness: 0.2mm-2.0mm
Width: 1000mm-1800mm
Color: white, silver gray, black, etc.

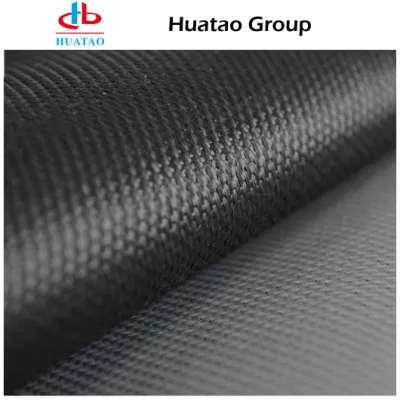

PTFE-coated fiberglass fabric
PTFE glass cloth is resistant to most industrial chemicals. The working temperature can be 350ºC. It also has excellent chemical resistance and is resistant to acid, alkali and various organic solvents.
It is also easy to clean and easy to sew.
Application:
·Insulation cover, mat
·Compensator
· High-temperature field
·Conveyor belt
·Chemical pipelines and desulfurization equipment
Specification
Thickness: 0.1mm-2.0mm
Width: 1000mm-2000mm
Color: white, black, etc.
PTFE glass cloth is resistant to most industrial chemicals. The working temperature can be 350ºC. It also has excellent chemical resistance and is resistant to acid, alkali and various organic solvents.
It is also easy to clean and easy to sew.
Application:
·Insulation cover, mat
·Compensator
· High-temperature field
·Conveyor belt
·Chemical pipelines and desulfurization equipment
Specification
Thickness: 0.1mm-2.0mm
Width: 1000mm-2000mm
Color: white, black, etc.
Aluminum foil glass fiber cloth
Aluminum foil composite glass fiber cloth is made of glass fiber as the base cloth and composite aluminum foil. The composite aluminum foil has the characteristics of smooth surface, high reflective refractive index, high strength, impermeability, airtightness, and strong weather resistance.
Application:
·Brapping of outdoor pipes
·Flame retardant curtain
·Fire retardant clothing
Specification
Thickness: 0.1mm-1.6mm
Width: 1000mm-1520mm
Aluminum foil composite glass fiber cloth is made of glass fiber as the base cloth and composite aluminum foil. The composite aluminum foil has the characteristics of smooth surface, high reflective refractive index, high strength, impermeability, airtightness, and strong weather resistance.
Application:
·Brapping of outdoor pipes
·Flame retardant curtain
·Fire retardant clothing
Specification
Thickness: 0.1mm-1.6mm
Width: 1000mm-1520mm
Silica fabric
High/medium silicone fabric has good chemical stability, high-temperature resistance, and insulation.
Widely used for protection in extremely high-temperature environments.
Application
·Welding blanket, fire curtain
·Thermal insulation, heat insulation, fire protection
·Welding and cutting protective screen
Specification
High/medium silicone fabric has good chemical stability, high-temperature resistance, and insulation.
Widely used for protection in extremely high-temperature environments.
Application
·Welding blanket, fire curtain
·Thermal insulation, heat insulation, fire protection
·Welding and cutting protective screen
Specification
| Weight(gsm) | Thickness(mm) | Color | SiO2 Content(%) |
| 600 | 0.7 | White/Tan | 70/85/96 |
| 1250 | 1.3 | White/Tan | 70/85/96 |

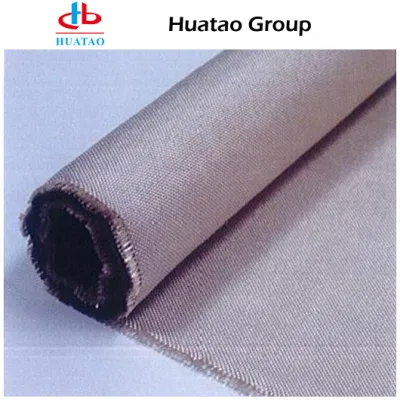

Glass fiber cloth
Glass fiber woven fabric is made of two systems of warp and weft yarns interwoven on a loom according to certain rules. It is an inorganic non-metallic material with excellent performance.
It has good corrosion resistance, strong heat resistance, and high mechanical strength. It is an ideal high-temperature filter material.
Application
·Thermal insulation and heat preservation
·Welding blanket, removable pad
·Compensator, pipe wrapping
·Base materials for coated fabrics and composite fabrics
Specification
Thickness: 0.2mm-3.0mm
Width: 1000mm - 2000mm
Color: white, bronze, etc.
Glass fiber woven fabric is made of two systems of warp and weft yarns interwoven on a loom according to certain rules. It is an inorganic non-metallic material with excellent performance.
It has good corrosion resistance, strong heat resistance, and high mechanical strength. It is an ideal high-temperature filter material.
Application
·Thermal insulation and heat preservation
·Welding blanket, removable pad
·Compensator, pipe wrapping
·Base materials for coated fabrics and composite fabrics
Specification
Thickness: 0.2mm-3.0mm
Width: 1000mm - 2000mm
Color: white, bronze, etc.

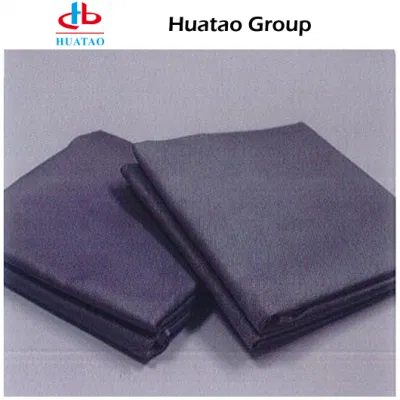

Welding fire blanket
Welding blankets are made of fiberglass base cloth, high/medium silica cloth, or fiberglass-coated cloth.
During the welding or cutting process, it can effectively resist the splash of sparks, slag, etc., effectively protect operators and keep the working environment clean.
The temperature resistance range is between 200ºC~1100ºC, depending on the materials used. The sizes are all customized according to customer requirements.
Application
·Welding
·Metal cutting
·Kitchen room
·Entertainment venues
Specification
Thickness: 0.43mm-1.6mm
Size: 1mx1m, 1.2mx1.2m, 1.8mx1.2m
Welding blankets are made of fiberglass base cloth, high/medium silica cloth, or fiberglass-coated cloth.
During the welding or cutting process, it can effectively resist the splash of sparks, slag, etc., effectively protect operators and keep the working environment clean.
The temperature resistance range is between 200ºC~1100ºC, depending on the materials used. The sizes are all customized according to customer requirements.
Application
·Welding
·Metal cutting
·Kitchen room
·Entertainment venues
Specification
Thickness: 0.43mm-1.6mm
Size: 1mx1m, 1.2mx1.2m, 1.8mx1.2m
