Product Description

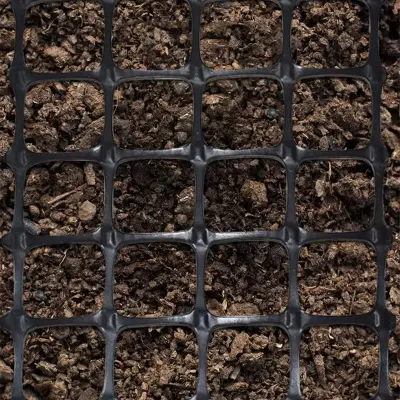

ROAD® PP biaxial geogrid is manufactured from Polypropylene, The properties of Biaxial Geogrids, made of Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.

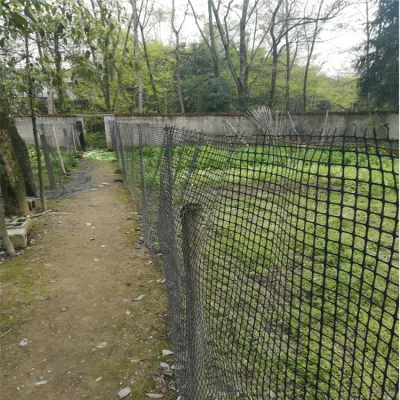

1. Reinforcement and Stabilisation of earth fencing walls, railways, highways and water conservation projects;

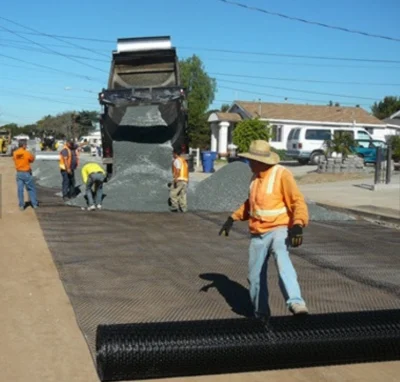

2. Reinforcement of road foundations;
3. Retaining walls;
4. Road slope repair and reinforcement;
5. Be used in noise barriers construction.
Index Properties | Test Method | Unit | 20-20 | 30-30 | 40-40 | 50-50 | ||||
Polymer | - | PP | ||||||||
Ultimate Tensile Strength, MD | ASTM D6637 | kN/m | 20 | 30 | 40 | 50 | ||||
Ultimate Tensile Strength, TD | ASTM D6637 | kN/m | 20 | 30 | 40 | 50 | ||||
Strain @ Ultimate Strength, MD | ASTM D6637 | % | 13 | |||||||
Mesh size, MD | - | mm | 25.4 | 25.4 | 25.4 | 25.4 | ||||
Mesh size, TD | - | mm | 25.4 | 25.4 | 25.4 | 25.4 | ||||
Roll Width | - | m | 3.95 or 5.0 or 5.2 or 5.95 | |||||||
Roll Length | - | m | 100 |

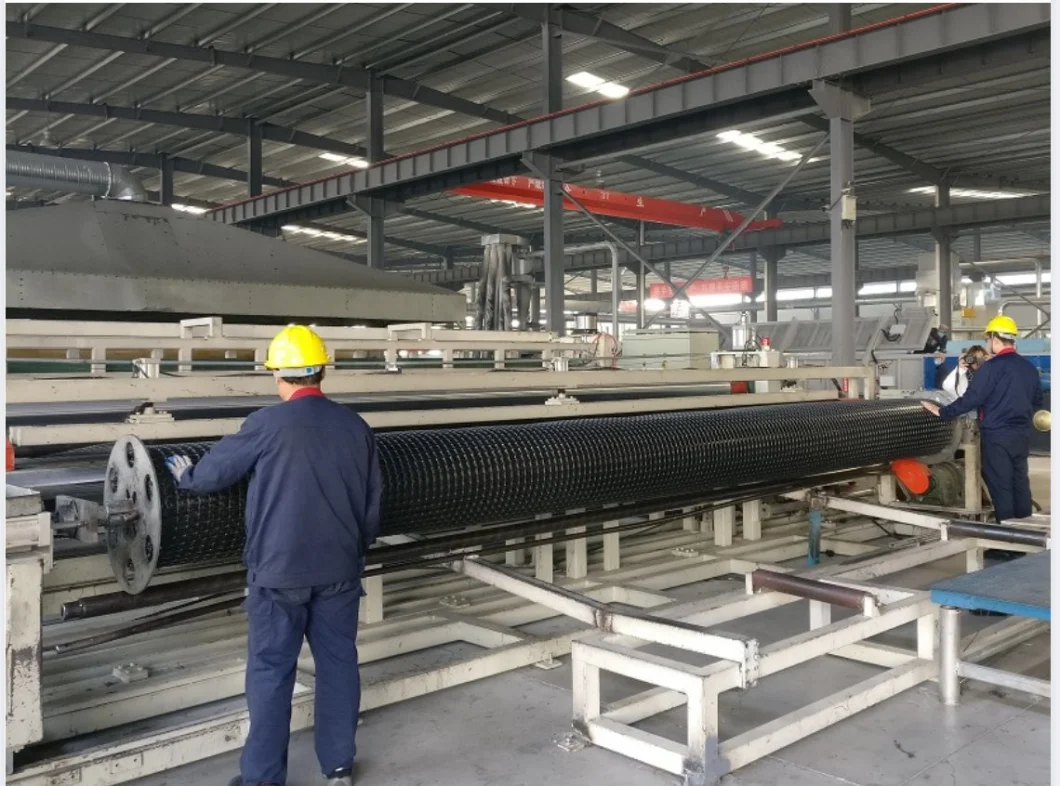

ROAD® Geosynthetics(Shandong Road Engineering Materials Co.,Ltd), established in 2002, specialized in manufacturing plastic uniaxial geogrid, biaxial geogrid,fiberglass geogrid, polyester geogrid, 3D geomat , geonet, geocell, geotextile, geomembrane, BOP stretched net, safety fence. Products are mainly used in the foundation construction such as roadways, railways, irrigation works,electric power, water and land protection, and environment greening, etc.
ROAD® Geosynthetics, as famous brand, our products has been exported to more than seventy countries and areas, such as Russia,Unites Kingdom, Italy, Poland, United States, Canda, Chile, Brazil, South Africa, Japan, Korea, Singapore and so on.
Q1. Can you do OEM?
A1. Yes.of course.We can produce the products as your requests.It would be better if you could provide us with samples.
Q2. If I want to order a small quantity goods,can you do it?
A2. If the product you need we have stock available,that would be great,you can choose the instock goods. if not, don't worry, we can take your order with our other clients' order to be produced together. But it needs to wait some time .
Q3. Can I get a sample from your company?Should I pay for the express fee?
A3. If you can accept our available sample,we can offer free sample to you.
After confirming your order, the sample's freight cost will be deducted from your order's total cost.
Q4. How will you follow my order?
A4. When the goods are started to produce,we will take photos for the goods and send it to you.
If you have any need,please contact us at any time.
