Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use

Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth for Construction Use. We are a factory specializing in high-quality fiber glass products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Installation Instructions
  • Product Parameters
  • Packaging & Shipping
  • Our Advantages
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
5x5/4x4/3x3mm
Application
Wall Materials, Heat Insulation Materials
Weave Type
Twill Woven
Fiberglass Type
C-Glass
Alkali Content
Medium
Transport Package
Woven Bag or Carton or Pallet
Specification
45g-300g
Trademark
Customized
Origin
China
HS Code
7019902190
Production Capacity
1000000m2/Month

Product Description

Product Description



ALKALINE RESISTANT FIBERGLASS MESH
Fiberglass alkaline-resistance mesh fabric is on the basis of C-glass or E-glass woven fabric,then handle formed by alkali-resistant coating. the product has high strength,good paste,obedient,excellent positioning,is widely used in wall enhanced external wall insulation,roofing,etc.also can be applied to cement,plastics,asphalt,marble,mosaic wall materials enhancements, It is an ideal engineering material in construction.


Fiberglass mesh is woven by fiberglass yarn as its basis mesh, and then coated by alkaline resistant latex. It has fine alkaline-resistant, high strength, etc. As an ideal engineering material in construction, it is mainly used to reinforce cement, stone, wall materials, roofing, and gypsum and so on.
Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use
Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use
Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use

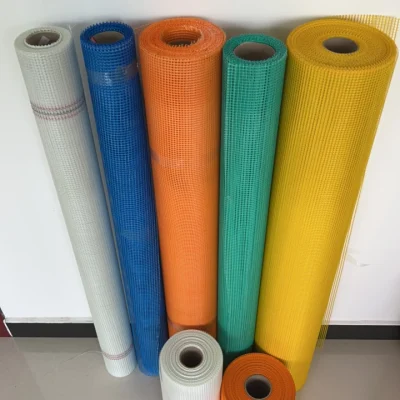

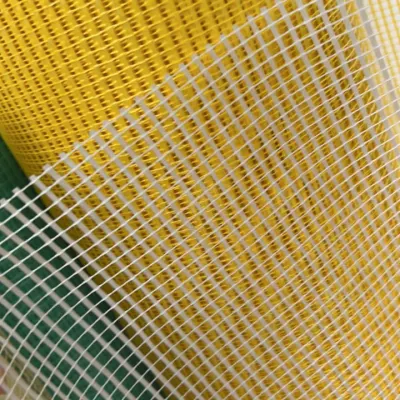

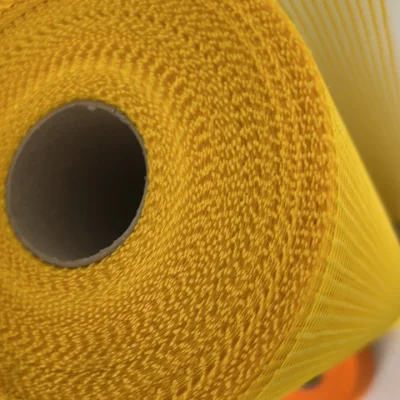

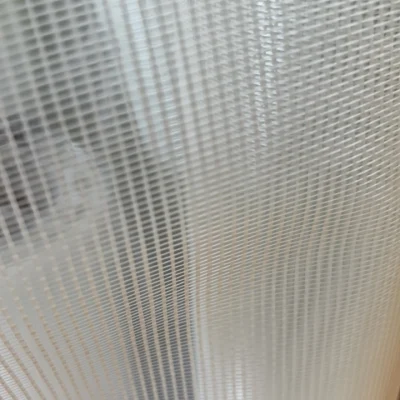

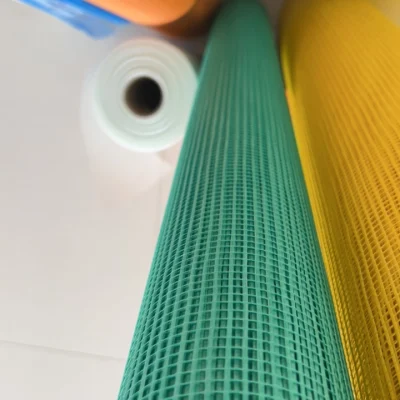

Detailed Photos
Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use
Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use
Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use

Installation Instructions

The mesh is ideal for use in construction and is mainly used to reinforce concrete, cement, screeds, renders and plasters It is an ideal reinforcement for render.  Applied for reinforcing facade plasters in building insulation systems with the "light" method in all types of buildings regardless of their height; can also be used to strengthen the floor screed on unstable surfaces, to bridge cracks in the walls inside the building and as a reinforcement for plaster placed on ceilings

Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use
Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use



Product Parameters
Art.No. Mesh/Size(MM) Specification Weight/m2 Diameter(mm) Qty./Ctn Size of carton(MM) Quantity/20Ft container Abt Quantity/40Ft container Abt
GY5x5/6x6-60 5x5/4x4 1MX50M 60g 135  4Rolls/carton  1020x270x270 67600M2 160800M2
GY5x5/6x6-70 5x5/4x4 1MX50M 70g 140  4Rolls/carton  1020x280x280  65200M2  155400M2
GY5x5/6x6-90 5x5/4x4 1MX50M 90g 148  4Rolls/carton  1020x300x300  61000M2  145400M2
GY5x5/6x6-100 5x5/4x4 1MX50M  100g 150  4Rolls/carton  1020x305x305 59000M2  140600M2
GY5x5/6x6-110 5x5/4x4 1MX50M 155g 155  4Rolls/carton  1020x310x310 55400M2  132000M2
GY5x5/6x6-120 5x5/4x4 1MX50M 160g 160  4Rolls/carton 1020x320x320 52200M2  124200M2
GY5X5/6X6-125 5x5/4x4 1MX50M  125g 165  4Rolls/carton  1020x330x330  49000M2  117000M2
GY5X5/6X6-130 5x5/4x4 1MX50M  130g 166  4Rolls/carton 1020X335X335  49000M2 117000M2
GY5X5/6X6-145 5x5/4x4 1MX50M  145g 168 2Rolls/carton 1020X170X340 45800M2 113000M2
GY5X5/6X6-150 5x5/4x4 1MX50M 150g 170 2Rolls/carton 1020X170X340 45800M2  113000M2
GY5X5/6X6-160 5x5/4x4 1MX50M 160g 173 2Rolls/carton 1020X175X345 43500M2 112400M2
GY5X5/6X6-165 5x5/4x4 1MX50M 165g 175 2Rolls/carton 1020X175X345 43500M2 112400M2
GY2.5x2.5-70 10x10 1MX50M 70g 175 2Rolls/carton 1020x175x350 42000M2  105500M2
GY2.5x2.5-90 10x10 1MX50M 90g 180 2Rolls/carton 1020x180x360 40100M2 100700M2
GY2.5x2.5-100 10x10 1MX50M 100g 185 2Rolls/carton 1020x185x370  37800M2  95400M2
GY2.5x2.5-125 10x10 1MX50M 125g 210 2Rolls/carton 1020X210X420 29500M2 73800M2
GY2.5x2.5-130 10x10 1MX50M 130g 215 2Rolls/carton 1020x220x435 27100M2 67900M2
GY2.5x2.5-150 10x10 1MX50M 150g 220 2Rolls/carton 1020X220X440 26700M2  67200M2
  GY8X8-53 3.2X3.2 1MX100M 53g 170 2Rolls/carton 1020x170x340 46000M2 113000M2
  GY9X9-60 2.8X2.8 1MX100M 60g 170 2Rolls/carton 1020x170x340 46000M2 113000M2




Packaging & Shipping
Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use
Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use
Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use



Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use
Package :each roll with a plastic film,then 1 roll per carton.
50,000 m2 / 1 x20'GP.





Our Advantages
Competitive Fiber Glass Cloth Roll Fiberglass Mesh Cloth Construction Use
We can produce any size mesh according to requirements of customer like different mesh size and weight per square meter.
We can supply special mesh as following:
(1)High strength mesh,
(2) Fire proof mesh.
(3)Strong and flexible mesh
We can supply specifications from 30g/m2 to 500g/m2 for mesh.
Main size: 5mm x 5mm or 4mm x 4mm,10x10mm,2.8x2.8mm 75 g/m2, 90 g/m2, 125 g/m2,145 g/m2, 160 g/m2. And so on
Company Profile

Qinhuangdao Tongyu Building Materials Co., Ltd. Is dealing in fiberglass mesh,fiberglass self adhesive tape,glass wool,rock wool and other building material and  thermal insulation materials, plastic products, packaging materials.Our company has been committed to energy-saving environmental protection projects; always adhere to the "integrity and win-win" for the purpose of the enterprise, "technology and services" for the Founding of the community spirit and the formation of a complete service system.
Main products include: fiberglass mesh, fiberglass self adhesive tape,insect screen,paper tape,corner tape,masking tape,Bopp tape,warning tape,Pvc corner bead,glass wool,rock wool and so on.
Our company has established good and stable business relationship with many customers all over the world, seeking development in the competition, in the face of challenges and believe that our company will provide you with the best and most advanced products, I believe our company will provide you with the most advanced technology and perfect after-sales service. Our company that with hardworking and sincere is willing to go hand in hand with you, create brilliant!



FAQ



Q.Can I have a sample?
A: We welcome customers to take samples and check the quality and accept mixed samples.


Q. Can i send you CAD drawings or 3D drawings, and then you make samples for me to test?
A:Yes, we can make the products you need according to CAD drawings or 3D drawings.


Q. How about your delivery time?
A: Generally, it will take 15 to 20 days after receiving your advance payment.

Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
