Basic Info.
Model NO.
JHLTK-5
Product Name
3D Glass Fiber Fabric Used in Fiberglass Tanks
Color
White
Density
Depend on Customer Requirement′s
Thickness
0.08 mm - 18 mm
Good Features
Light Weight, High Strength,Structural Design,Ect.
Yarn Count
as Your Order
Supply Type
Make-to-Order
Service
Provide Free Sample
Width
1.27m,1.3m,1.5m,2m
Transport Package
Carton & Pallet
Specification
142*27*27
Trademark
Jiahe
Origin
China
HS Code
7019590000
Production Capacity
500000sqm/Year
Product Description
China Supplier 3D Fiberglass Cloth Glass Fiber Fabric Used in Fiberglass Tanks

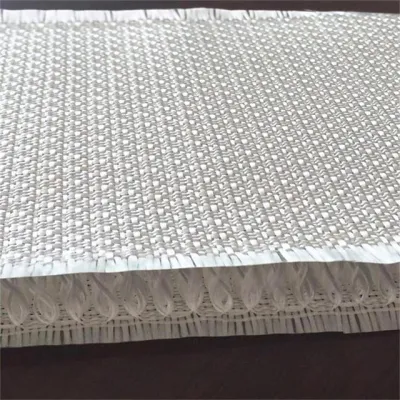

Parabean is an integral glass fiber three -dimensional fabric ,it is composed of two deck layers and an intermediate connecting glass fiber yarn ,with the thickness 3-3O mm. According to customer requirements,the density and thickness can be designed . On the basis of the composite materials ,the shape of core Z fiber space can be designed, suchas "8" , "O", "V" etc.
| Technical data sheet | |||||||||
| | PARAGLASS | PARATANK | |||||||
| Type | JH3 | JH3.5 | JH5 | JH8 | JH10 | JH12 | JH3.5 | JH4.5 | JH6 |
| Core (mm) | 3 | 3.5 | 5 | 8 | 10 | 12 | 3.5 | 4.5 | 6 |
| Face(mm) | 0.4 | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.4 | 0.4 | 0.4 |
| Weigt(kg/m³) | 0.78 | 0.8 | 0.83 | 0.92 | 1.34 | 1.42 | 820 | 860 | 920 |
| Width(m) | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.27 | 1.27 | 1.27 |
Surface weaving type
More other application:
Products are widely used in van, refrigerated heat preservation vehicle and other transportation industries, partition wall, spacer, bathroom floor and other building decoration materials; like containers, all kinds of water tank ,FF double wall tank ,SF double wall and other storage industry; industrial plant, movable board room, Wall materials and other construction industry;yacht, entertainment hull, marine superstructure such as cabin, bulkhead and other ship industry;aerospace, high-speed rail, radar cover
