Product Description
 |  |  |
 |  |  |
| Specification | Linear density deviation | Breaking tenacity (cN/dtex) | Elongation at break 22% | Hot air shrinkage (132ºC×15min×0.05g/d) | Twist/meter (T/M) |
| 150D-500D/70f | ±3% | >=5.6 | ±3 | <=4% | 60-200 |
| 600D-840D/144f | ±3% | >=6.2 | ±3 | <=6% | 60-200 |
| 1000D-1260D/144f | ±3% | >=6.2 | ±3 | <=8% | 40-150 |
| 1680D-3000D/288f | ±3% | >=6.1 | ±3 | <=10% | 40-150 |
| 4000D-10000D | ±3% | >=6.1 | ±3 | <=10% | 40-100 |
88/5000
It is used in the belt conveyor belt to play the role of carrying and transporting materials of rubber and fiber, metal composite products, or plastic and fabric composite products. Conveyor belt is widely used in cement, coking, metallurgy, chemical industry, iron and steel and other industries where the conveying distance is short and the conveying volume is small
Advantages
- No moisture absorption
- No caking
- Resistant to rotting and decomposition
- Complete unloading without residues
- Consistent fluidization over the complete surface
- Good resistance to abrasion
- Low wear and therefore longer life
- Low shrinkage even when used under hot and humid conditions
Working principle
In cement plant:

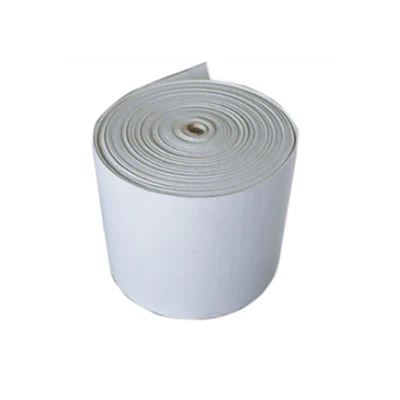

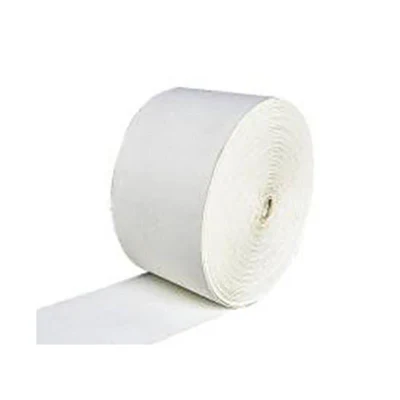

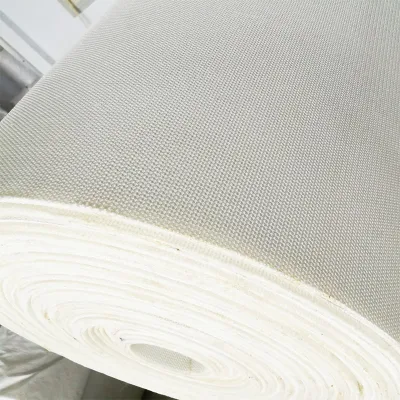

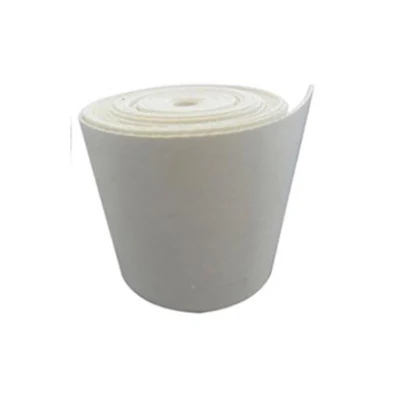

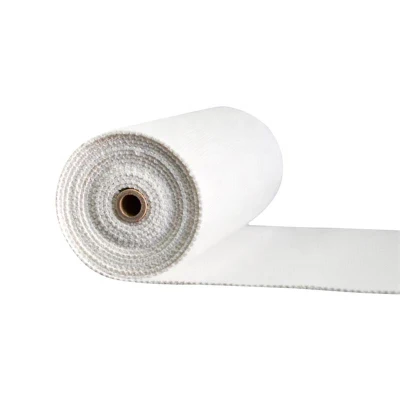

An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.
In fluidization silo:

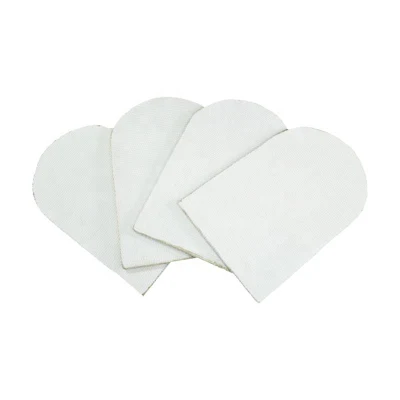

Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.
Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.
In cement vessel's hold:
The sloped bottom of the cargo hold is covered with fluidizing panels. Our airslide fabric is on the surface of fluidizing panels. Rotary piston blowers supply the panels with oil-free compressed air and make the cement flow to the lowest point, where the discharge gate is installed. Powder and particulate material available the Airslide canvas fabric conveyor belt
Application:
In industry
Power Stations: Filtered dust, Flue ash, discharging flue ash, Coal dust
Building and Construction: Cement, furnace dust, gypsum, limestone, finely ground quartz, Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground fluorid, production of aluminum
Chemical Industry:Thomas meal (Fertilizer), Rubber compounds, sinter dust, catalysts,Sodium sulfate, Soap powder
In machinery:
Silos / Tanks : Discharging systems, Warehouse units, Mixing equipment, Homogenizing systems
Chute Bottoms: Conveyor systems, Ventilator systems, Aeration systems
Vehicles : Silo truck discharging cones, Railway wagon discharging cones, Vessel aeration & discharging bottoms, Container aeration & discharging bottoms
Powder Coating Machinery
Bottoms for sinter basin
Yanpai Filtration Technology Co., Ltd., is the leading company specializing in the production of Filter fabric and needle felt in China, our products are mainly used for liquid and solid separation, gas filtration and dust collection.
Yanpai Main Products: Filter cloth (Monofilament Filter Cloth, multifilament Filter Cloth), filter bag, filter press, non-woven spunbonded fabric, Needle Punched Felt( common Polyester and PP Felt, water and oil repellenceFelt, PTFE coat, Nomex, PPS, P84, etc), filter belt, spiral belt, woven air slide, etc
Yanpai Products Materials: Monofilament fiber, multi-filament fiber coming from Polyester (PET), Polypropylene (PP), Polyamide (PA)/ Nylon, Polyvinyl Alcohol (PVA), Fiberglass, Aramid, PTFE, P84, etc
Yanpai Products Application: Municipal and Industrial Waste Treatment, chemical industries, Petrochemicals, Mining, Cement industry, Pharmaceuticals, Food and Beverage Processing, belt press, water purification, brewage, cement industry, etc.
Yanpai now occupies a site area 90, 000 sqm, production facilities some 400 sets, 2 internal laboratories, and around 600 highly trained employees worldwide, in China, USA, Brazil and Germany.
With advanced facilities and technics, Yanpai can produce fabric in particular density and thickness up to your different application at the competitive quality and price.
Yanpai is a competent partner in filtration area. We look forward to cooperate with you.
