Basic Info.
Model NO.
HBHTCFC011
Compressive Strenght
220-380 MPa
Shape
Cuistomized
Material
Carbon Fiber Composite
Transport Package
Wooden Case
Specification
Customized
Trademark
Hang Carbon
Origin
Hebei, China
Production Capacity
500000 Piece/Pieces Per Month
Product Description
What is Carbon Fiber Composit e?
Let's first start with the nomenclature. Carbon Fiber Composite is also referred to as Carbon-Carbon Composite, CFC, or Carbon Reinforced Matrix Composite. All of these aliases refer to this product.
Originally developed for use in the aerospace sector, CFC has become an extremely cost-effective solution for furnace fixture applications. The unique attributes of CFC offer advantages compared to metal and graphite fixtures. The material can be provided in a wide variety of sizes and geometric shapes.
Our CFC parts include but are not limited to: Sheets, Angles, U-Channels, Rings, Tubes, Pipes, Cylinders, Bolts, Washers, Heating Elements, Shelving, Survey Racks and Baskets for heat-treating.
Let's first start with the nomenclature. Carbon Fiber Composite is also referred to as Carbon-Carbon Composite, CFC, or Carbon Reinforced Matrix Composite. All of these aliases refer to this product.
Originally developed for use in the aerospace sector, CFC has become an extremely cost-effective solution for furnace fixture applications. The unique attributes of CFC offer advantages compared to metal and graphite fixtures. The material can be provided in a wide variety of sizes and geometric shapes.
Our CFC parts include but are not limited to: Sheets, Angles, U-Channels, Rings, Tubes, Pipes, Cylinders, Bolts, Washers, Heating Elements, Shelving, Survey Racks and Baskets for heat-treating.
Speciation:
- Volume Density (g/cm3): 1.45-1.75
- Tensile Strength (Mpa): ≥90
- Compressive Strength (Mpa): ≥120
- Carbon Content (%): ≥99
- Ash Content (%): ≤0.05
- Processing Temperature (°C): ≥2000
- Application Temperature (°C): 1350-2600
Carbon-carbon composite features:
(1) Physical properties: After high temperature treatment, the carbon composite has higher carbon content, >99%, the density is low, the mechanical properties are good. Due to good characteristic of high melting point of carbon, high temperature resistance, corrosion resistance and thermal shock performance, the carbon composite is resistant to acid, alkali and salt.
(2) High mechanical strength: the strength is 5 times that of steel at high temperature.
(3) High temperature resistance: excellent mechanical and electrical properties can still be maintained at temperatures above 2000ºC.
(4) Low thermal expansion coefficient.
(5) Low heat capacity. Special Properties of carbon carbon composite: High Acid-resisting and alkali-resisting properties; Low density compared to metals; High temperature, cold-resistant, tensile strength is 7-9times than Steel; very good thermal shock resistance…
- High strength and modulus.
- Fire resistant and dimensionally stable.
- Configuration of Carbon Fabric.
- Fatigue and fracture resistant. Cracks will not propagate as with molded graphite fixtures.
- Lightweight and low thermal mass permitting one to load more parts in each furnace due to the material's excellent strength to weight ratio while reducing cycle time.
- Thermal deformation resistant. CFC will remain flat and increase in strength at elevated temperatures reducing scrap and maintaining stricter part tolerances in comparison to metal which warps over time.
- Aerospace and military.
- Heat treating and furnace fixtures.
- Primary and secondary structures.
- Windmill blades.
- Brake linings, automotive, and tooling.
- Solid rocket nozzles.
Applications of carbon composite
| Category | Application |
| Heat Resistance | Furnace Parts |
| Trays and Jigs | |
| Springs | |
| Heating Elements | |
| Aerospace Parts | |
| Sliding and Friction | Brake Materials |
| Clutch Plates | |
| Sliding Boards for Pantograph | |
| Industrial Bearing | |
| Advanced Material | Solar Cell Manufacturing Equipments |
| Chemical Manufacturing | |
| Semiconductor / Display Manufacturing Equipment |
CFC Threaded rods, bolts and nuts
C/C-composite Bolts & Nuts characterized by its high heat resistance are used in many high temperature environments over 1000°C while metals or ceramics lose mechanical strength.
Also, the unique graphite properties such as resistance to adhesion or friction make them ideal for joining components under high temperatures.

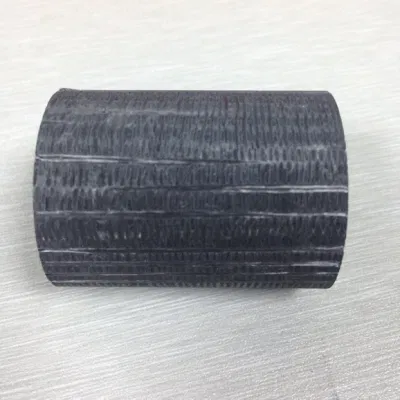

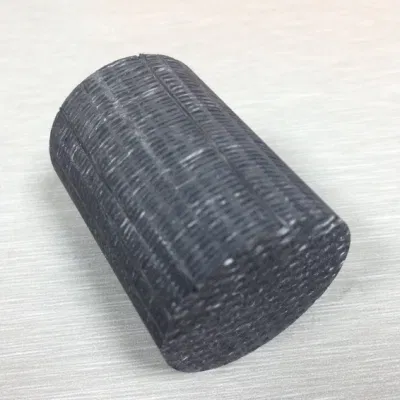

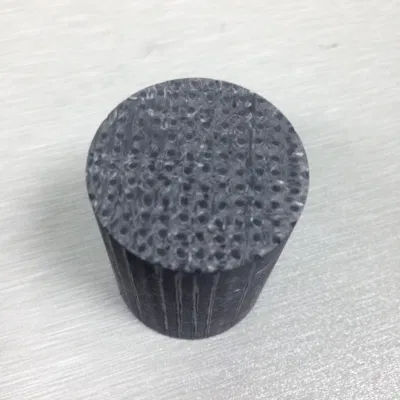

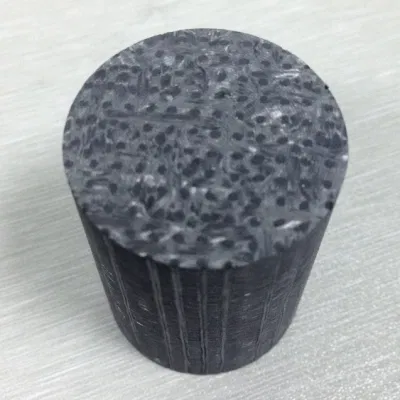

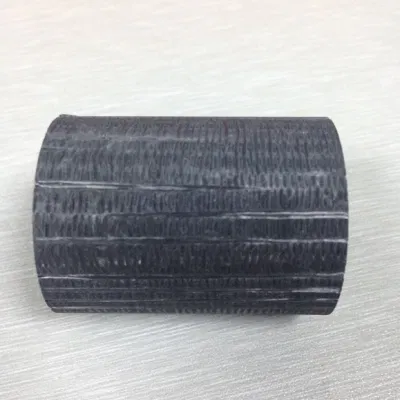

CFC Cylinders
We deliver CFC cylinders in an excellent quality for high temperature applications such as hot pressing of tungsten carbide or ceramics.
Advanced Equipments:
Our Services:
Efficiency: Your einquiry will be replied with 24 hours
Fast Delivery: Our produciton capability and enough mateiral stocks will make sure fast devevery
Customization: We provided OEM services based on your design and drawings
Design Service: Our professional and experienced enigneers team can disign for you, if you need
Quality and Price: We offer you high quality graphite products with the most competitive price
After-sales Services: Tracking service for feedbacks of our graphite products, and we will be responsilbe for quality problem.
Shipping Methods:
