Product Description
Carbon fibers is a key ingredient in advanced composite materials. It is the combination of high strength, high stiffness, extremely light weight ,, unaffected by high temperature /fuels/oils, anticorrosion, and low density that creates a product
that is a higher composite material.

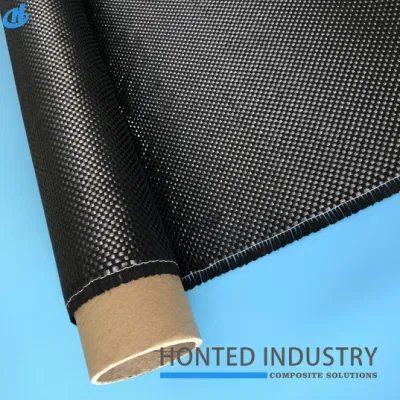

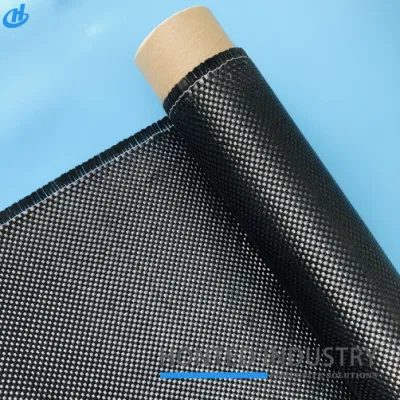

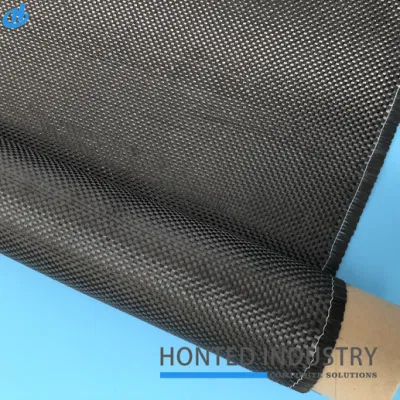

Carbon Fiber fabric is light weight, high strength and high modulus. It has good resistance to fatigue, heat and corrosion. Width, axial, fiber areal weight can all be custom made
| Type | Yarn | Weave | Density(10mm) | Weight (g/m2) | Thickness (mm) | Width (cm) | ||
| Warp | Weft | Warp | Weft | |||||
| HTC01P-100 | 1k | 1k | plain | 7.5 | 7.5 | 100 | 0.14 | 80-150 |
| HTC01T-100 | 1k | 1k | twill | 7.5 | 7.5 | 100 | 0.14 | 80-150 |
| HTC01P-120 | 1k | 1k | plain | 9 | 9 | 120 | 0.16 | 80-150 |
| HTC01T-120 | 1k | 1k | twill | 9 | 9 | 120 | 0.16 | 80-150 |
| HTC01P-140 | 1k | 1k | plain | 10.5 | 10.5 | 140 | 0.17 | 80-150 |
| HTC01T-140 | 1k | 1k | twill | 10.5 | 10.5 | 140 | 0.17 | 80-150 |
| HTC01E-140 | 1k | 1k | Satin | 12 | 12 | 160 | 0.18 | 80-150 |
| HTC03P-180 | 3k | 3k | plain | 4.5 | 4.5 | 180 | 0.28 | 80-150 |
| HTC03T-180 | 3k | 3k | twill | 4.5 | 4.5 | 180 | 0.28 | 80-150 |
| HTC03P-200 | 3k | 3k | plain | 5 | 5 | 200 | 0.3 | 80-150 |
| HTC03T-200 | 3k | 3k | twill | 5 | 5 | 200 | 0.3 | 80-150 |
| HTC03P-240 | 3k | 3k | plain | 6 | 6 | 240 | 0.32 | 80-150 |
| HTC03T-240 | 3k | 3k | twill | 6 | 6 | 240 | 0.32 | 80-150 |
| HTC03P-280 | 3k | 3k | plain | 7 | 7 | 280 | 0.34 | 80-150 |
| HTC03T-280 | 3k | 3k | twill | 7 | 7 | 280 | 0.34 | 80-150 |
| HTC03E-320 | 3k | 3k | Satin | 8 | 8 | 320 | 0.36 | 80-150 |
| HTC06P-280 | 6k | 6k | plain | 3.5 | 3.5 | 280 | 0.36 | 80-150 |
| HTC06T-280 | 6k | 6k | twill | 3.5 | 3.5 | 280 | 0.36 | 80-150 |
| HTC06P-320 | 6k | 6k | plain | 4 | 4 | 320 | 0.38 | 80-150 |
| HTC06T-320 | 6k | 6k | twill | 4 | 4 | 320 | 0.38 | 80-150 |
| HTC06P-400 | 6k | 6k | plain | 5 | 5 | 400 | 0.42 | 80-150 |
| HTC06T-400 | 6k | 6k | twill | 5 | 5 | 400 | 0.42 | 80-150 |
| HTC12P-400 | 12k | 12k | plain | 2.5 | 2.5 | 400 | 0.46 | 80-150 |
| HTC12T-400 | 12k | 12k | twill | 2.5 | 2.5 | 400 | 0.46 | 80-150 |
| HTC12P-480 | 12k | 12k | plain | 3 | 3 | 480 | 0.52 | 80-150 |
| HTC12T-480 | 12k | 12k | twill | 3 | 3 | 480 | 0.52 | 80-150 |
| HTC12P-640 | 12k | 12k | plain | 4 | 4 | 640 | 0.64 | 80-150 |
| HTC12T-640 | 12k | 12k | twill | 4 | 4 | 640 | 0.64 | 80-150 |
Other specifications can be customize made.
| Product No | Overall Density | +00 (g/m2) Roving Density | +450 (g/m2) Roving Density | 900 (g/m2) Roving Density | -450 (g/m2) Roving Density | (g/m2) Chop Density | (g/m2) Polyester Yarn Density | Material |
| CKUDL150 | 170 | 154 | / | 10 | / | / | 6 | Carbon 12k |
| CKUDL300 | 319 | 303 | / | 10 | / | / | 6 | Carbon 12k |
| CKBX300 | 306 | / | 150 | / | 150 | / | 6 | Carbon 12k |
| CKBX400 | 406 | / | 200 | / | 200 | / | 6 | Carbon 12k |
| CKBX600 | 606 | / | 300 | / | 300 | / | 6 | Carbon 12k |
| CKLT300 | 306 | 150 | / | 150 | / | / | 6 | Carbon 12k |
| CKLT400 | 406 | 200 | / | 200 | / | / | 6 | Carbon 12k |
| CKLT600 | 606 | 300 | / | 300 | / | / | 6 | Carbon 12k |
| CKQX800 | 806 | 200 | 200 | 200 | 200 | / | 6 | Carbon 12k |
| EAKBXM625 | 635 | / | 100/100 | / | 100/100 | 225 | 10 | Aramid/Glass |
| ECKLTM825 | 837 | 150/150 | / | 150/150 | N/A | 225 | 12 | 12k/Glass |
1. Light weight, easy to operate
2. Soft and can be cut freely
3. Thin thickness, easy to overlap
4. High tensile strength and high elasticity
5. Acid and alkali resistant and can be used in any harsh environment
6. Good permeability for epoxy resin (receommed matched resin from our company)
7.Non-toxic and non irritant, and can still be constructed during living
Aerospace, Construction, Wind power, Marine, Automobile decoration, Sports equipment
Feature: Application:
- Light weight - Aerospace
- High strength - Wind power
- High modulus - Marine
- Fatigue resistance - Automobile decoration
- Corrosion resistance - Sports equipment
