Biaxial Glass Fiber Cloth 0/90 Degree, +-45 Degree, 10cm 30cm 50cm 127cm, Customize Biaxial Cloth

Product Name: Custom Biaxial Glass Fiber Cloth We are a factory offering custom biaxial glass fiber cloth in various sizes and angles (0/90, +-45 degrees) for different applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Fiberglass Type
E-Glass
Roll Width
10cm -300cm, Can Be Customized
Roll Weight
5kg-60kg
Weave Method
0/90 Degree, or +45 - 45 Degree
Delivery Time
21 Days
Transport Package
Carton Pallet
Specification
200-1200g
Trademark
HONTED
Origin
China
HS Code
70195900
Production Capacity
1200 Tons/Month

Product Description

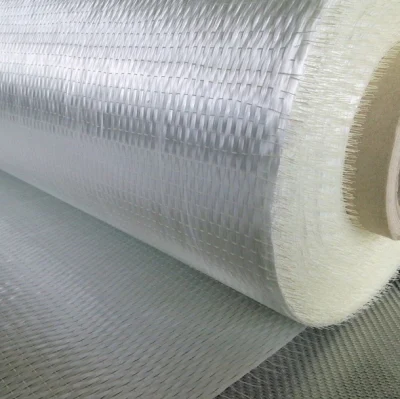

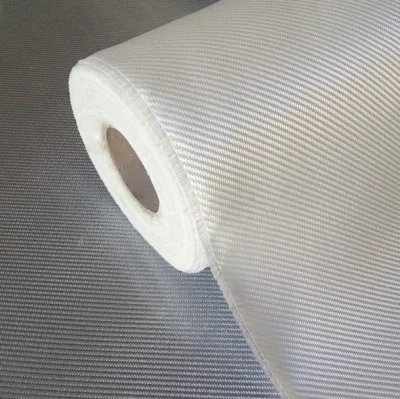

E Glass Biaxial Fiberglass Fabric is a stitch-bonded composite reinforcement combining continuous roving oriented in the 0,90 or +45,-45 directions into a single fabric. Can be stitched (50-500)g/m2 CSM or Nonwoven fabric on the bottomIt can be with mat or without mat It is ideal for applications such as wind blades, marine panel, snowboards, truck and trailer panel.

E Glass Fiberglass Unidirectional fabric
is a stitch-bonded composite reinforcement combining continuous roving oriented in the 0°or 90°directions into a single fabric Two layers of roving  With or without a layer of chopped strands  (0g/m²-300g/m²). It can be with mat or without mat It is ideal for applications such as wind blades, marine panel, snowboards, truck and trailer panel

Biaxial Glass Fiber Cloth 0/90 Degree, +-45 Degree, 10cm 30cm 50cm 127cm, Customize Biaxial Cloth
Biaxial Glass Fiber Cloth 0/90 Degree, +-45 Degree, 10cm 30cm 50cm 127cm, Customize Biaxial Cloth

Woven roving combo mat is made of woven roving and chopped fiberglass strand complex of, then stitched together with polyester yarn. It is compatible with Polyester, Vinyl and Epoxy resin and widely used in boat building, Auto parts, refrigerated tools and structural sections industry etc, suitable for hand lay up, RTM, pultrusion, vacuum processes.

Glass fiber composite MAT is made of glass fiber-free roving yarn arranged in one-way parallel, the outermost layer is cut into glass fiber yarn or short-cut felt of a certain length, and is sewn with organic fiber.

Mainly used for FRP pullout RTM forming, hand lay up molding and other processes, the end products are mainly FRP hull, car shell, plate, profile and so on.

Fiber structure can be designed to provide high strength in a certain direction;

The fiber is not easy to produce displacement and deformation, easy to operate;

Fabric without any binder, easy to soak;The compounding of the structure can reduce the layering and effectively improve the production efficiency.

Specifications

+ 45 / -45°

Product No. Overall Density(g/m2) +45°Roving Density(g/m2) -45°Roving Density(g/m2) Chop Density(g/m2) Polyester Yarn Density(g/m2)
HTDX160 172 80 80 / 6
HTDX240 233 106 106 / 6
HTDX300 306.7 150.33 150.33 / 6
HTDX400 407 200.5 200.5 / 6
HTDX450 457 225.5 225.5 / 6
HTDX600 607.2 300.6 300.6 / 6
HTDX800 807.6 400.8 400.8 / 6
HTDX1200 1208.6 601.3 601.3 / 6
HTDXM400/225 632 200.5 200.5 225 6
HTDXM600/225 832.2 300.6 300.6 225 6
HTDXM800/450 1257.6 400.8 400.8 450 6
HTDXM1208 682 200.5 200.5 275 6
HTDXM1308 732 225.5 225.5 275 6
HTDXM1708 882.2 300.6 300.6 275 6
HTDXM2408 1082.6 400.8 400.8 275 6



 / 90º

Product No.

Overall
Density (g/m²)

0º Roving
Density (g/m²)

90º Roving
Density (g/m²)



Chop Density
(g/m²)

Polyester
Yarn Density
(g/m²)

LT400

409.5

202

198

/

9.5

LT600

609.5

330

270

/

9.5

LT800

809.5

412.5

387.5

/

9.5

LT1200

1209.5

605

595

/

9.5

LTM400/200

609.5

202

198

200

9.5

LTM600/300

909.5

330

270

300

9.5

LTM600/450

1059.5

330

270

450

9.5

LTM800/250

1059.5

412.5

387.5

250

9.5

LTM800/300

1109.5

412.5

387.5

300

9.5

LTM800/450

1259.5

412.5

387.5

450

9.5

LTM1608

835.5

275

276

275

9.5

LTM1808

894.5

330

280

275

9.5

LTM2408

1092

412.5

395

275

9.5

LTM2415

1274.7

412.5

395

457.7

9.5

LTM3208

1381.5

605

492

275

9.5


E Glass Fiberglass Quadraxial Fabric It is a stitch-bonded composite reinforcement combining continuous roving oriented in the 0° +45°90°,-45°directions into a single fabric.  Multi-axial fiberglass facrics are made from rovings. The rovings placed parallel in each layer in a designed direction could be arranged 2-6 layers, which are stitched together by light polyester threads. The general angles of the placing direction are 0,90, ± 45 degree. Unidirectional knitted fabric means main mass is in a certain direction, for example 0 degree. It is applied for vacuum infusion or winding process and mainly used for the production of wind blades, pipes, and so on. They are available for epoxy(EP), polyester(UP), and vinyl resin (VE) systems.

Product No. Overall Density(g/m2) +0°Roving Density(g/m2) +45°Roving Density(g/m2) 90°Roving Density(g/m2) -45°Roving
Density(g/m2)
Chop Density
(g/m2)
Polyester Yarn Density(g/m2)
HTQX600 601.4 144.7 150.4 150 150.4 / 6
HTQX800 823.8 216 200.5 200.8 200.5 / 6
HTQX1000 954 216 248 236 248 / 6
HTQX1150 1178.7 294 300.6 283.5 300.6 / 6
HTQX1200 1201.2 294 300.6 300 300.6 / 6
HTQX1600 1620 434 308 564 308 / 6
Biaxial Glass Fiber Cloth 0/90 Degree, +-45 Degree, 10cm 30cm 50cm 127cm, Customize Biaxial Cloth
Biaxial Glass Fiber Cloth 0/90 Degree, +-45 Degree, 10cm 30cm 50cm 127cm, Customize Biaxial Cloth


Features
Easy shape adaptation
Easy impregnation
Excellent mechanical properties

No any Binder, good compatible with Multi-Resin

simplify the molding process

improve producing efficiency and decrease cost


Standard width in 1250mm, 1270mm, and other sizes depends on customer's real needs, available in 200mm to 2600mm.

Packaging & Shipping

Biaxial Glass Fiber Cloth 0/90 Degree, +-45 Degree, 10cm 30cm 50cm 127cm, Customize Biaxial Cloth
Biaxial Glass Fiber Cloth 0/90 Degree, +-45 Degree, 10cm 30cm 50cm 127cm, Customize Biaxial Cloth
Biaxial Glass Fiber Cloth 0/90 Degree, +-45 Degree, 10cm 30cm 50cm 127cm, Customize Biaxial Cloth

                Inner side Plastic Film                                              Carton + Non wooden Pallet                                                       Container Loading

Storage

Unless otherwise specified, the fiberglass products should be in dry, cool and moisture-proof area. The room temperature and humidity should be always maintained at 15ºC~35ºC and 35%~65%. It is best if the price is used within 12 months after production date. The fiberglass products should remain in their original packaging until just prior to user.

Application

Automotive, vessels, gratings, bathtub, FRP composite, tanks, waterproof, reinforcement, insulation, spraying, spray gun, mat, gmt, boat, csm, frp, panel, car body, knitting, chopped strand, pipe, gypsum mold, boat hulls, wind energy, wind blades, fiberglass boat hulls, boats fiberglass, fiberglass pools, fiberglass fish tank, fiberglass fishing boat, fiberglass molds, fiberglass rods, fiberglass swimming pool, fiberglass boats molds, fiberglass pool, fiberglass chopper gun, fiberglass spray gun, fiberglass water tank, fiberglass pressure vessel, fiberglass poles, fiberglass fish pond, fiberglass resin, fiberglass car body, fiberglass panels, fiberglass ladder, fiberglass insulation, fiberglass dinghy, fiberglass car roof top tent, fiberglass statue, fiberglass grating, fiberglass rebar, glass fiber reinforced concrete, fiber glass swimming pool, etc.
Biaxial Glass Fiber Cloth 0/90 Degree, +-45 Degree, 10cm 30cm 50cm 127cm, Customize Biaxial Cloth
