Basic Info.
Model NO.
FWF-0127
Weave Type
3D Fabric
Fiberglass Type
E-Glass
Alkali Content
Alkali Free
Technique
3D Fabric
Function
Waterproof, Fireproof, Soundproof
Material
Fiberglass
Type
Fiberglass Fabric
Color
White
Thickess
2-30mm
Density of Warp
9-18 (Ends/Cm)
Transport Package
Polybag and Carton
Specification
width: 1.27m
Trademark
China beihai Fiberglass Co., Ltd.
Origin
China
HS Code
70195900
Production Capacity
50000m2/Month
Packaging & Delivery
Package Size
20.00cm * 30.00cm * 12.00cm
Package Gross Weight
1.000kg
Product Description

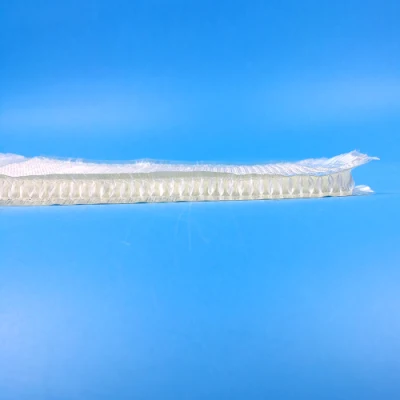

High-Quality 3D Fiberglass Woven Fabric
3-D spacer fabric construction is a newly developed concept. The fabric surfaces are strongly connected to each other by the vertical pile fibers which are interwoven with the skins. Therefore, the 3-D spacer fabric can provide good skin-core debonding resistance, excellent durability and superior integrity. In addition, the interstitial space of the construction can be filled up with foams to provide synergistic support with vertical piles. These products have broad application prospects in automobile, Locomotives, aerospace, marine, windmills, building and other industries.
1. The 3-D spacer fabric consists of two bi-directional woven fabric surfaces, which are mechanically connected with vertical woven piles. And two S-shaped piles combine to form a pillar, 8-shaped in the warp direction and 1-shaped in the weft direction.
2. The 3-D spacer fabric can be made of glass fiber, carbon fiber or basalt fiber. Also their hybrid fabrics can be produced.
3. The range of the pillar height: 3-50 mm, the range of the width: ≤ 3000 mm.
4. The designs of structure parameters including the areal density, the height and distribution density of the pillars are flexible.
5. The 3-D spacer fabric composites can provide high skin-core debonding resistance and impact resistance and impact resistance, light weight. High stiffness, excellent thermal insulation, acoustic damping, and so on.
| Area Weight (g/m2) | Core Thickness (mm) | Density of Warp (ends/cm) | Density of Weft (ends/cm) | Tensile strength Warp(n/50mm) | Tensile strength Weft(n/50mm) |
| 740 | 2 | 18 | 12 | 4500 | 7600 |
| 800 | 4 | 18 | 10 | 4800 | 8400 |
| 900 | 6 | 15 | 10 | 5500 | 9400 |
| 1050 | 8 | 15 | 8 | 6000 | 10000 |
| 1480 | 10 | 15 | 8 | 6800 | 12000 |
| 1550 | 12 | 15 | 7 | 7200 | 12000 |
| 1650 | 15 | 12 | 6 | 7200 | 13000 |
| 1800 | 18 | 12 | 5 | 7400 | 13000 |
| 2000 | 20 | 9 | 4 | 7800 | 14000 |
3D Fiberglass fabrics are used in a wide variety of industries and applications, including aerospace, automotive, marine, construction, sporting goods, and electronic equipment. It can be used in the manufacture of composite materials, reinforced structural components, thermal insulation, filters, ballistic materials, and more.
