Product Description

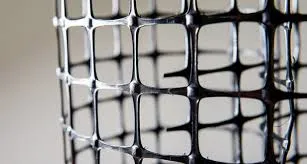

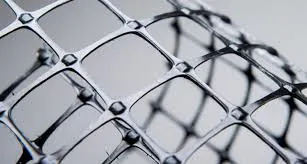

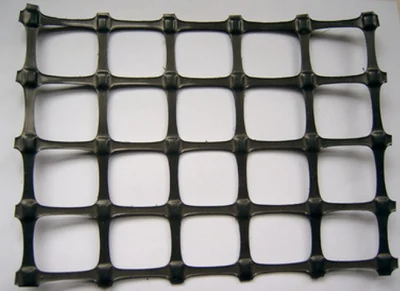

PP plastic Biaxial geogrid for road construction
Product Introduction
The properties of Biaxial Geogrids, made in Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.
Product Function
1.Pavement Subgrade Stabilization
2.Area/Ground Stabilization
3.Pavement Base Reinforcement
4.Working & Load Transfer Platforms
5.Rail Track-bed Stabilization
6.Reinforced Granular Foundation Beds
Specification
Property | Test Method | TGSB15-15 | TGSB20-20 | TGSB30-30 | TGSB40-40 | TGSB50-50 | TGSB60-60 | |
Ultimate Tensile Strength(1)(KN/M) | MD | EN ISO 10139 | 15 | 20 | 30 | 40 | 50 | 60 |
CD | 15 | 20 | 30 | 40 | 50 | 60 | ||
Elongation at Maximum Load(%) | MD | 13 | ||||||
CD | 13 | |||||||
Tensile Strength at 2% Elongation(KN/M) | MD | 5 | 7.5 | 10.5 | 14 | 18 | 27.5 | |
CD | 5 | 7.5 | 10.5 | 14 | 18 | 27.5 | ||
Tensile Strenght at 5% Elongation(KN/M) | MD |
| 7 | 14 | 21 | 28 | 35 | 48 |
CD | 7 | 14 | 21 | 28 | 35 | 48 | ||
Minimum Carbon Black | % | ASTM4218 |
| |||||
Roll Length(M) |
| 100/75/50 | ||||||
Roll Width(M) |
| 2/3.9/3.95/5/5.9/6 | ||||||
Application:
1 Road construction. Applied in road to improve stability and bearing capacity, prevent deformation and crack
2 Retaining wall. Applied in retaining wall to improve bearing capacity
3 Soil foundation reinfrocement. Improve bearing capacity and cotrol sedimentation.
4 Slope reinfrocement. Protect the slope from collapse.
5 Landfill. Applied in landfilled to effectively solve the foundation problems such as uneven settlement, derivative gas emissions
Packaging & Shipping
Packaging: packaging by woven plastic bag
Shipping: By sea
Our Services
Quality assurance
1.On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections
2.Strictly in accordance with the ISO9001-2008 international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality
3. For quality-related construction delay or substandard construction(except for damage or losses due to customer's responsibility or irresistible natural disasters),we have refunding,replacement,and repair services.We will respond to customers' feedbacks on quality issues within 24 hours.
After-sales service
1.In order to provide customers with comprehensive technical support,we will provide technical and other related information upon request in a timely manner.
2.In required,we will appoint specialized technicians to the construction site to give technical trainings to construction people,and offer technical guidance throughout the whole construction process.
3.For damage due to shipment and delivery,after we receive the complaint,we will check the issure through provided pictures and videos.If our responsibility is confirmed,we wil offer free replacement.
4.When the construction is completed,as your request,our technical staff may participate in the final acceptance.
Company Information
Hongxiang New Geo-Material Co.,Ltd in leader of the geotextile, geomembrane and GCL in China. It was set up in June,1987 and become a provincial enterprise in Oct.1997. It occupies a land of 300,000 square meters, with total asset RMB320,000,000. There are 1200employees, among them, there are 268 professional and technical personnel. We have 56 production lines mainly produce needle-punched geotextile, filament spunbond geotextile, high strength geotextile, 3-layer co-extrusion geomembrane, dripping membrane, heart treated compound geomembrane 8m in width. PE/PVC/EVA press prolong geombrane, textured geomembrane, ant-skid geomembrane, uniaxial geogrid, biaxial geogrid, steel-plastic geogrid, geocell, geomat, woven geotextile, split yarn woven geotextile and so on. Owning the word leading production line of geosynthetics. We have our own R&D department and our own test room which reach to national level.
Our annual productivity is as below: 50 million square meters of needle-punched geotextile; 55 million square meters of compound geomembrane; 9,000 metric tons of PE geomembrane; 36 million square meters of macromolecule waterproof materials; 8 million square meters of geosynthetic clay liners (GCL); 5 million square meters of single direction geogrid; 8 million square meters of double-direction geogrid; 1 million square meters of geocell; 4 million square meters of geonet; 3 million square meters of tri-dimensional geomat; 10 million square meters of woven geotextile; 9,000 metric tons of geomembrane; 300 metric tons of PP long fiber; 4,000 metric tons of PP long fiber; 6 million plastic woven bags.
