50kn Composite Geotextile Bitumen Paved Fiberglass Uniaxial Glass Fiber Geogrid

50kn Composite Geotextile Bitumen Paved Fiberglass Uniaxial Glass Fiber Geogrid. We are a factory producing high-quality geotextile and geogrid products for construction and infrastructure projects.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
ELT-FGCG
Tensile Strength
20X20kn/M to 400X400kn/M
Length
100m
Width
3.95m
Certificate
Ce /ISO9001
Coated
Asphalt, SBR
Elongation
3%, 4%
Mesh Size
12.7*12.7mm. 25.4*25.4mm
Certification
ISO9001, Ce
Free Samples
Available
Customized
Yes
Transport Package
Plastic Film Packing with Pallets
Specification
20X20kn/m to 400x400kn/m
Trademark
ELITE-INDUS
Origin
Anhui
HS Code
39269090
Production Capacity
50000 Square Meters/Day

Product Description

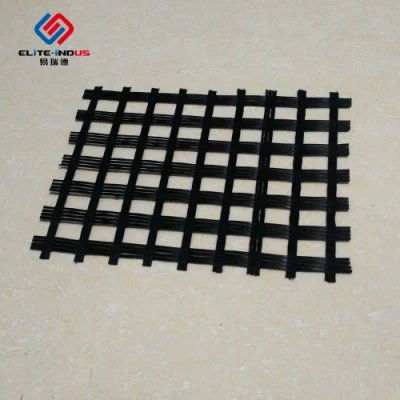

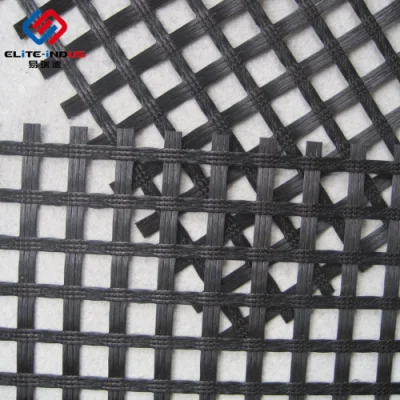

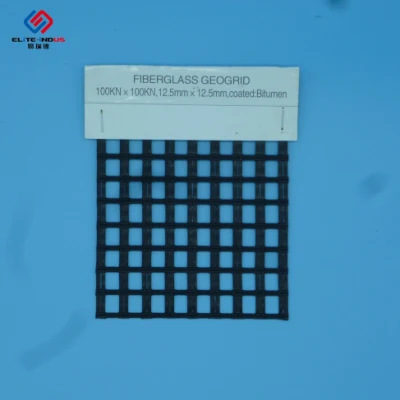

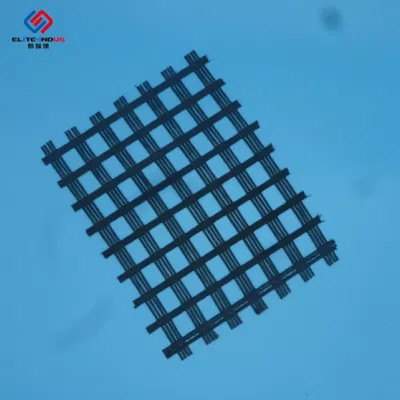

50kn / M Composite Geotextile Bitumen Paved Fiberglass Uniaxial Glass Fiber Geogrid

1. Introduction:

ELITE fiberglass geogrid composite geotextile is a compound product made of fiberglass geogrid and geotextile. The polypropylene/polyester geotextile stitch bonding or paste on the fiberglass geogrid.

It is the new material that can prevent the reflection cracking,water damage and improving loading capacity in the project of road construction and renovation.It has the properties of high temperature rut resistance and anti-fatigue cracking, therefore prolong the life time of pavement.

50kn Composite Geotextile Bitumen Paved Fiberglass Uniaxial Glass Fiber Geogrid


2. Geotextile Composite Glassfiber Geogrid Specification

Fiberglass geogrid composite geotextile technological standard
specification FGCG
30×30
FGCG
50×50
FGCG
60×60
FGCG
80×80
FGCG
100×100
FGCG
120×120
FGCG
150×150
FGCG
200×200
FGCG
300×300
Fiberglass geogrid properties (GB/T 21825-2008)
Mesh center distance(mm) MD                 12.7±3.8      25.4±3.8    50.8±3.8
TD                 12.7±3.8      25.4±3.8    50.8±3.8
   breaking strength(kn/m) MD 30 50 60 80 100 120 150 200 300
TD 30 50 60 80 100 120 150 200 300
Breaking Elongation(%) MD 4 4 4 4 4 4 4 4 4
TD 4 4 4 4 4 4 4 4 4
Normal composite Geotextile properties (GB/T17638-1998)
Unit weight(g/m2) 100 150 200 250 300 350 400 450 500
breaking strength(kn/m) 2.5 4.5 6.5 8 9.5 11 12.5 14 16
CBR mullen burst strength 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7
Tear strength 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38 0.42
width(m) 1m-6m 1m-6m 1m-6m 1m-6m 1m-6m 1m-6m 1m-6m 1m-6m 1m-6m

REMARK:

1, The normal composite geotextile is short fiber needle punched polyester nonwoven geotextile
2, The normal composite geotextile weight is 100g/m2,120g/m2,150g/m2,200g/m2
3,Gram weight and type of geotextile can be produced with buy's requirement.
4,The normal composite fiberglass geogrid tensile strength is 50/50kn/m, 100/100kn/m.

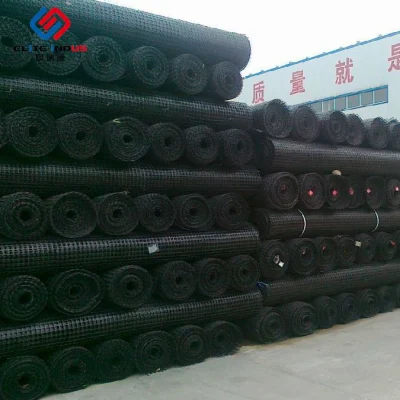

3. Packing & Delivery
Packing:
50KnX50Kn:width 3.95m*length 100m per roll, About 60000m2/40'HQ
100KnX100Kn:width 3.95m*length 100m per roll, About 45000m2/40'HQ


Delivery: 3-15 days after order deposit

4. Features & Benefits

1,High tensile strength, excellent in anti-tearing and anti-bursting performance.
2,Use geotextile as the basic fabric,it has the function of material isolation,water drainage,
   Pavement reinforcement, protection,and anti-seepage.


6. Applications

The fiberglass geogrid composite geotextile has a widely application on water conservation,
road construction,architecture,subway and tunnel.
1), It reinforces old asphalt concrete road surface and asphalt surface and asphalt layer and prevents damage
2), It is use for rebuilding cement concrete road surface into composite road surface and restraining restrain reflection caused by caused by block contraction.

3), It is use in road expansion and improvement project and prevents crack caused by old and new combination position and uneven sedimentation.

4), fiberglass geogrid  used in soft soil base reinforcement treatment, is favorable for soft soil water separation and concretion, restrains sedimentation effectively. distributes uniformly and improvement overall strength of road base.
5), It is used for preventing contraction crack caused by road semi-rigid base layer, and reinforces and prevents road surface crack caused by foundation crack reflection.


7.Our Company

ELITE was established in 2007, has become one of the leading and professional suppliers of many kinds of Geosynthetics in the world market.
ELITE equipements  are mainly import from Germany, Italy, Cabada, France.
We have one full set of precise testing instrument and quality inspection team, technology research & Development team.
ElITE are certified with CE and ISO.

Sales Team:
Elite own a team with 10+ years experience.
We know well of geosyntics on technical inspection, marketing, transportation...

Exhibition:
We have been to many international exhibitions with the hope of meeting all our customers face to face.
To get our recent exhibition information pls refer to our official website.
